Product Overview
Unmatched Versatility and Performance

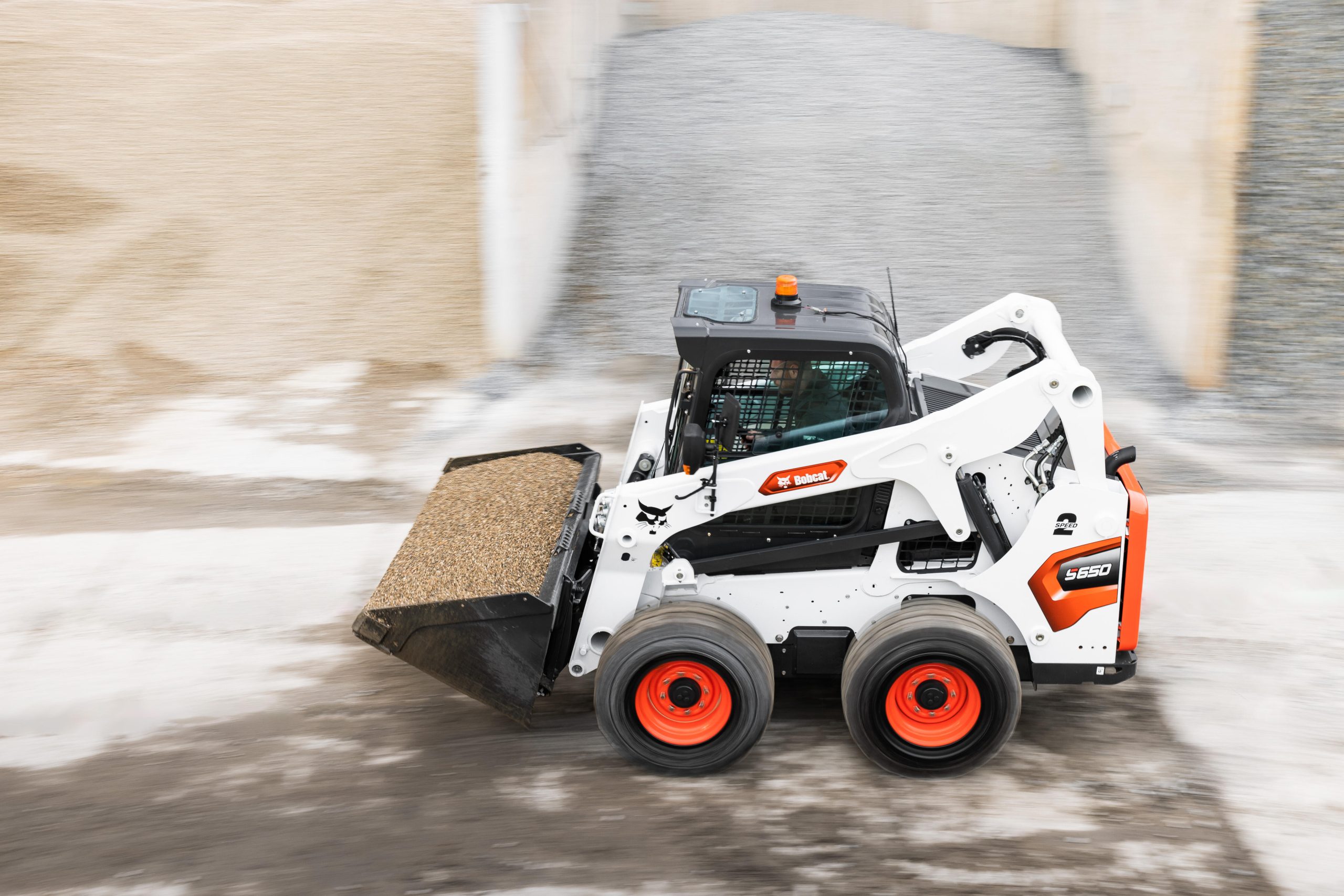

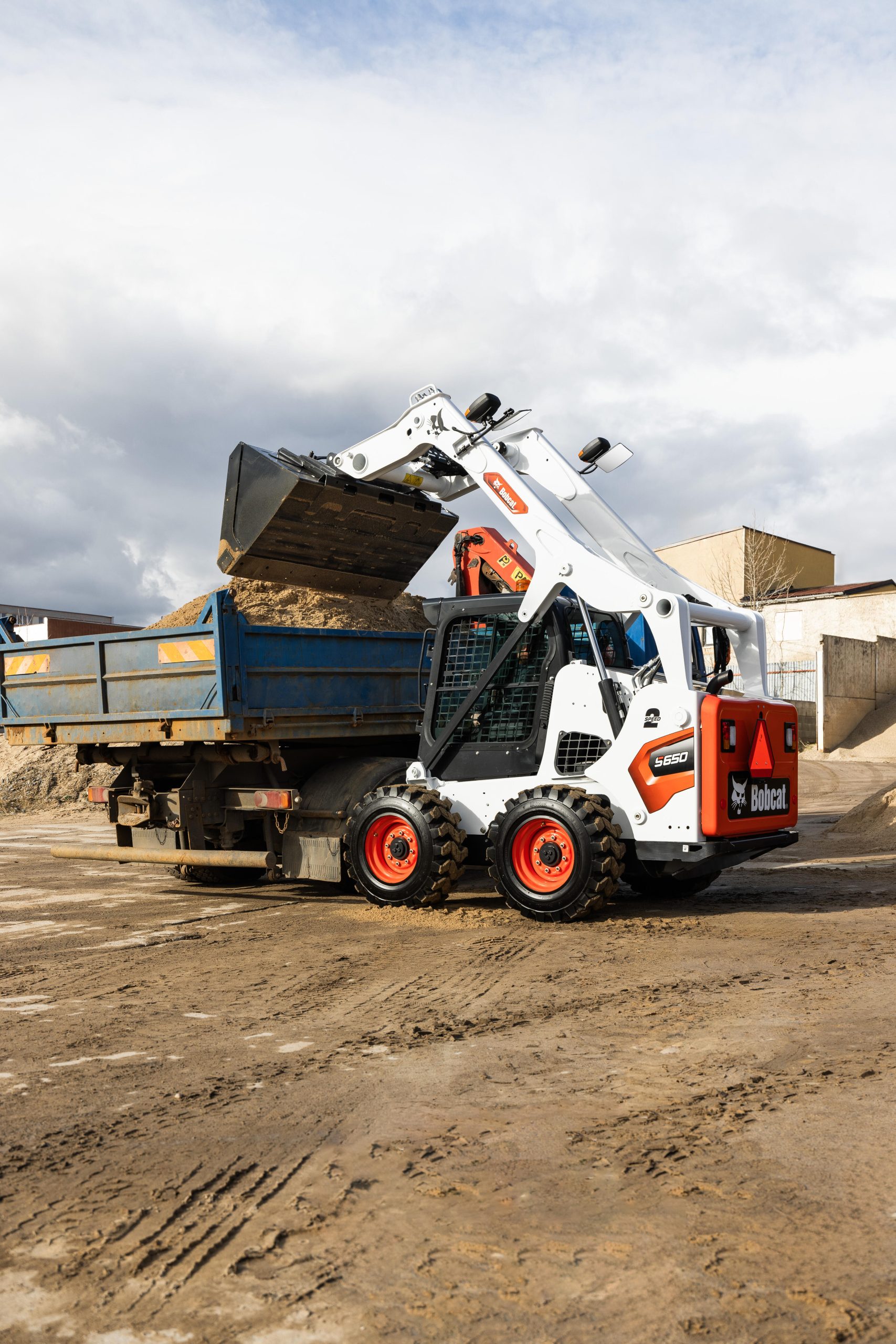

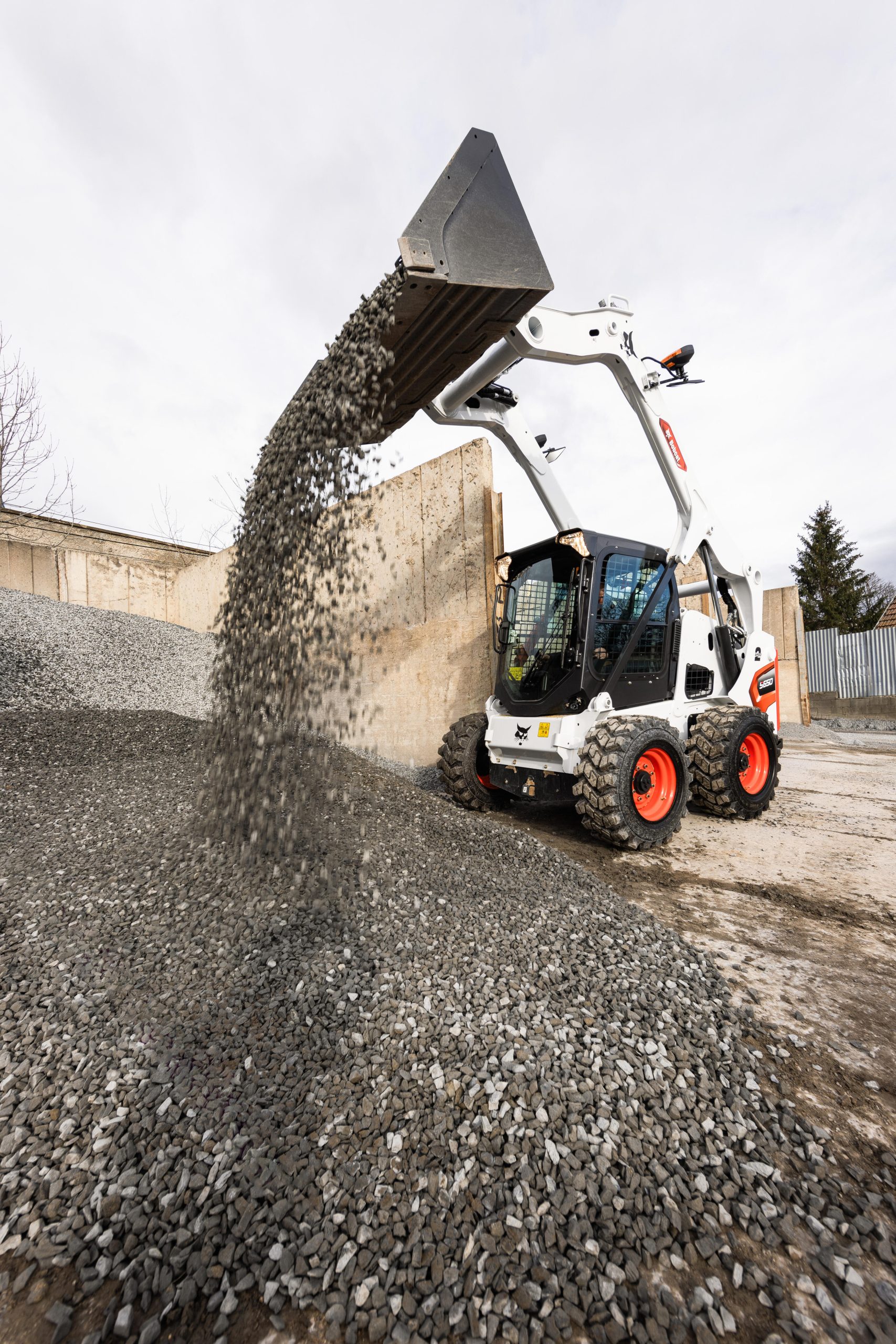

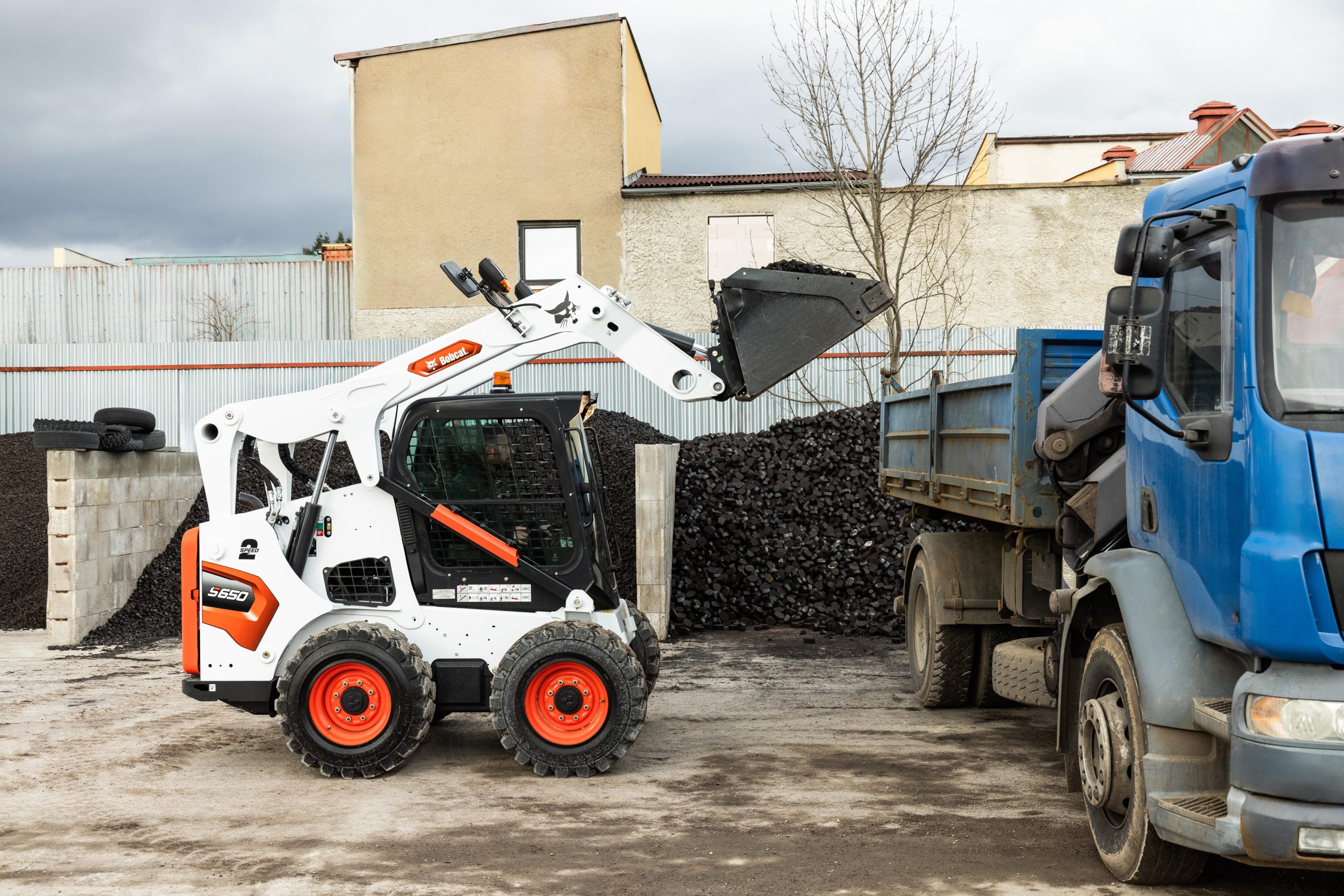

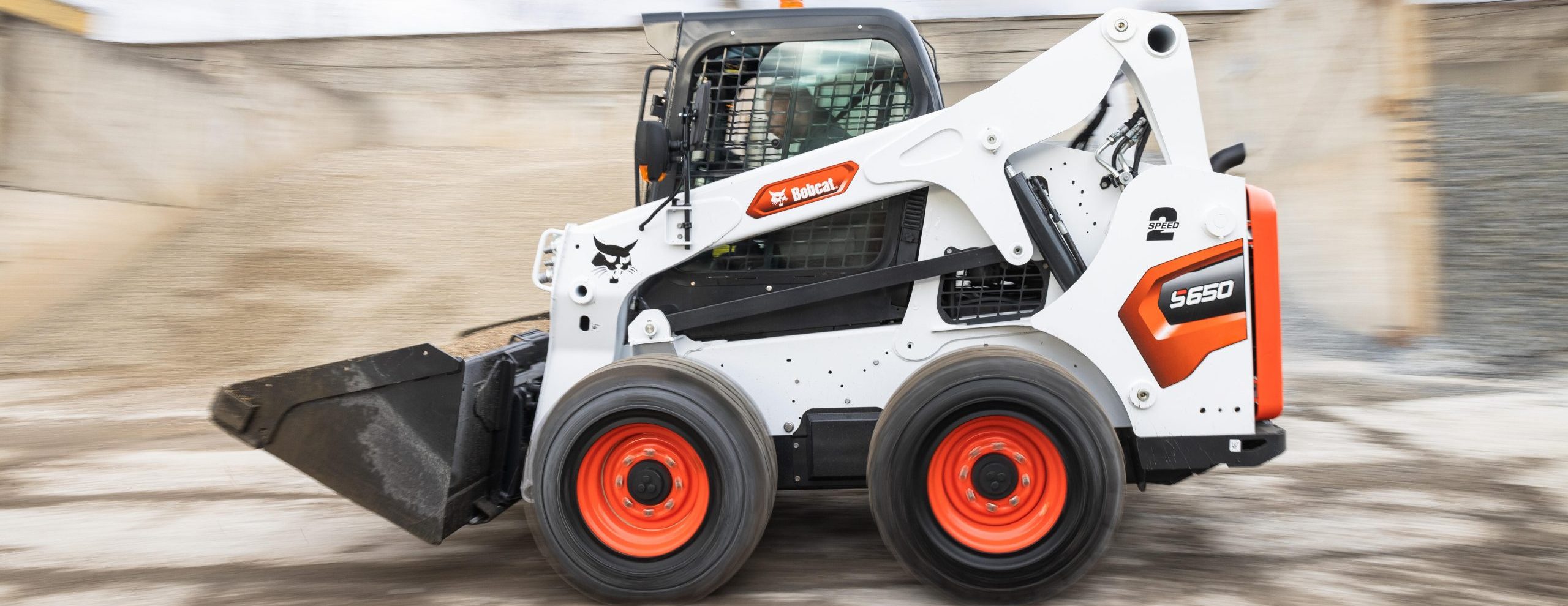

The Bobcat S650 Skid Steer Loader delivers exceptional power and efficiency for demanding tasks. Its robust design ensures reliability in various applications.
– High tipping load capacity
– Advanced control options
– Deluxe operator comfort
– Versatile attachment compatibility

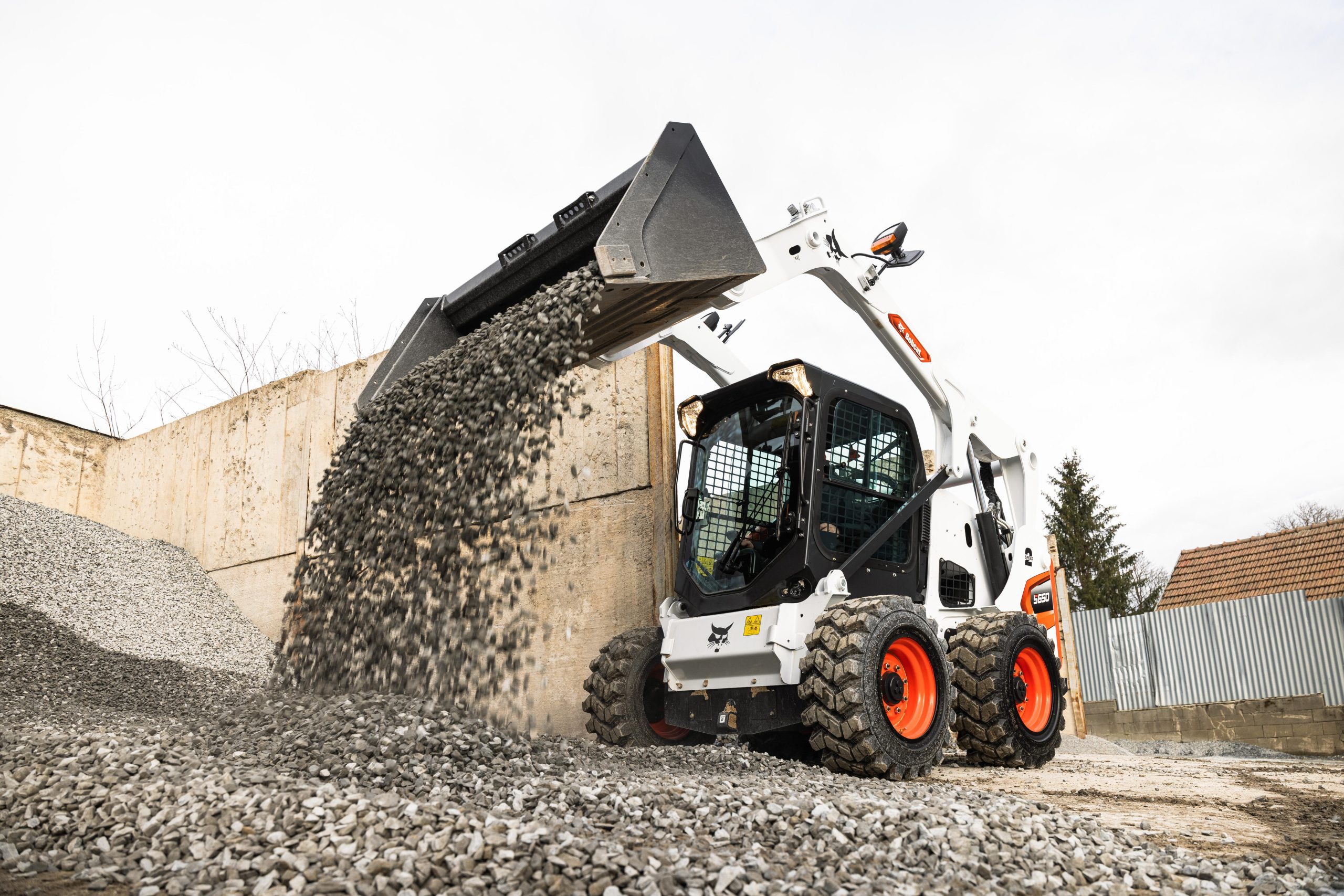

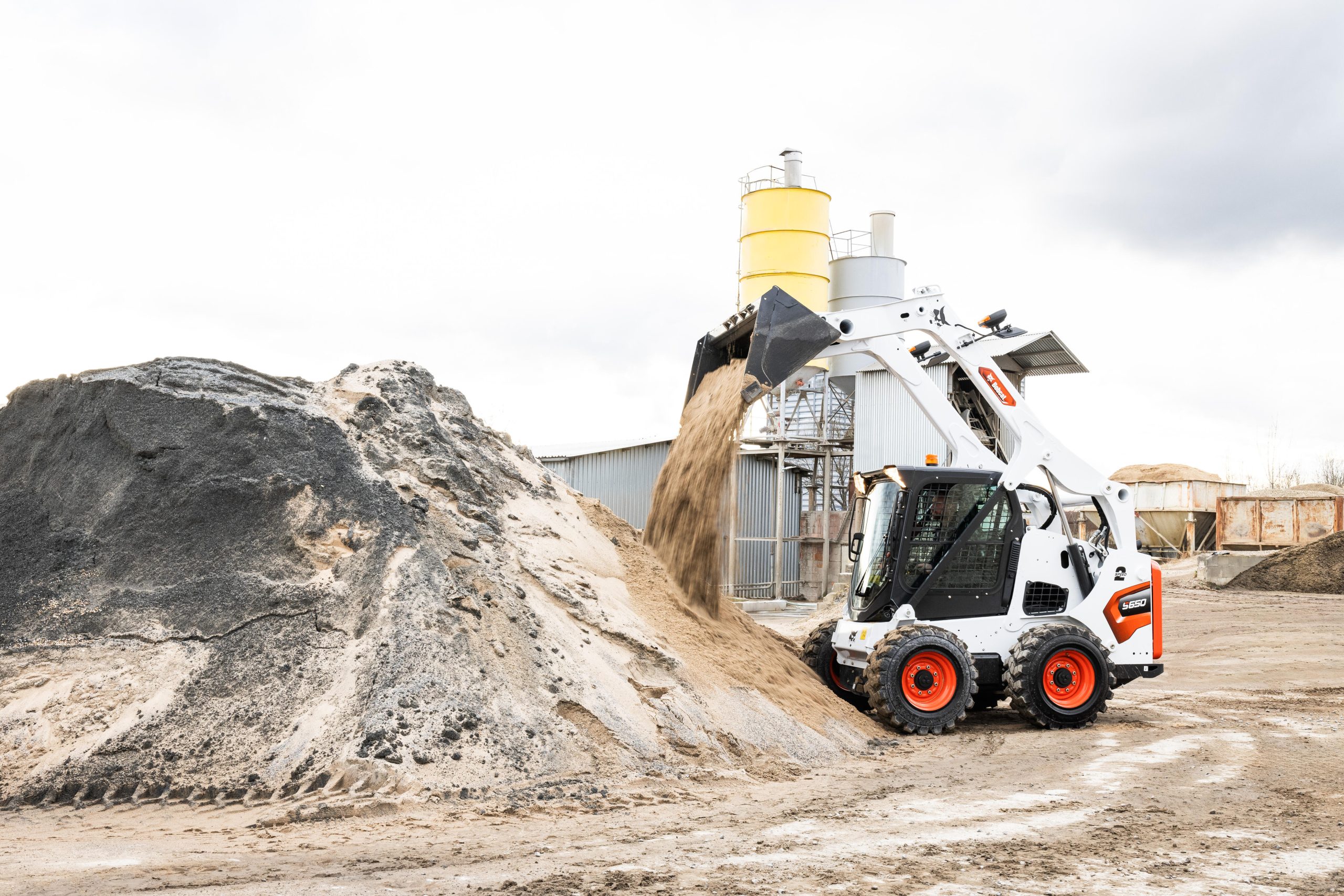

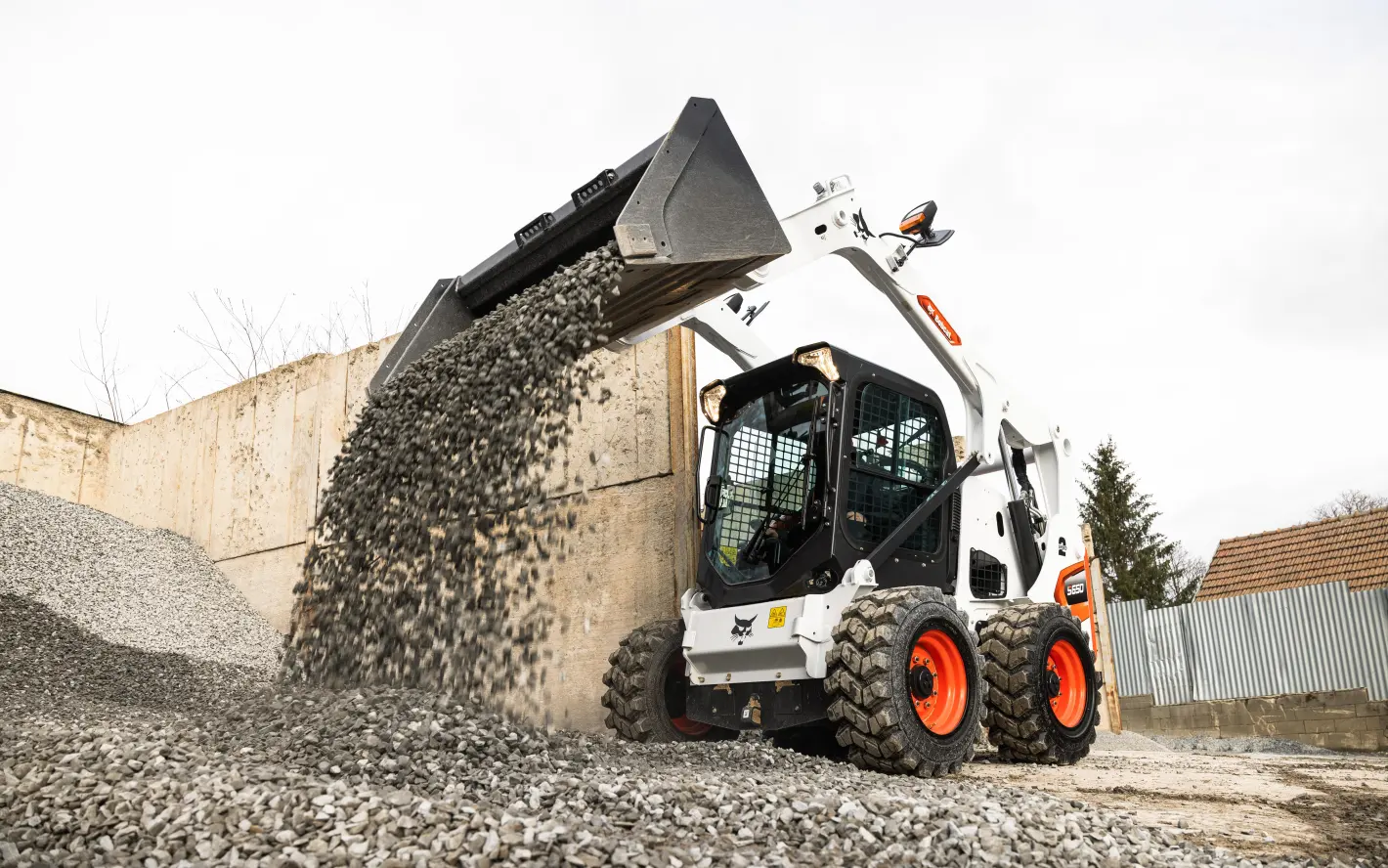

The S650 boasts a tipping load of 2564 kg, allowing it to manage substantial weights efficiently, making it ideal for heavy-duty tasks in construction and landscaping.

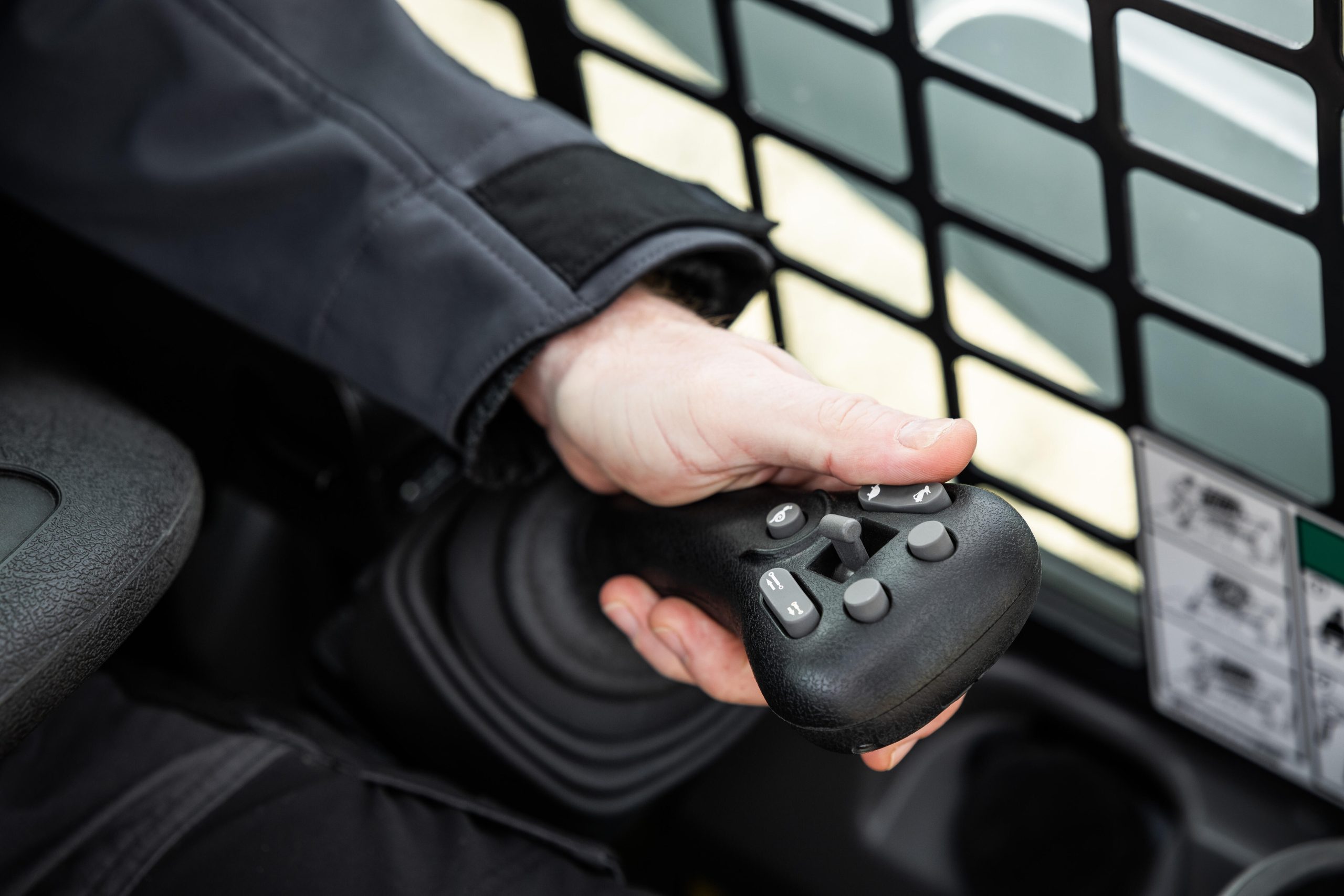

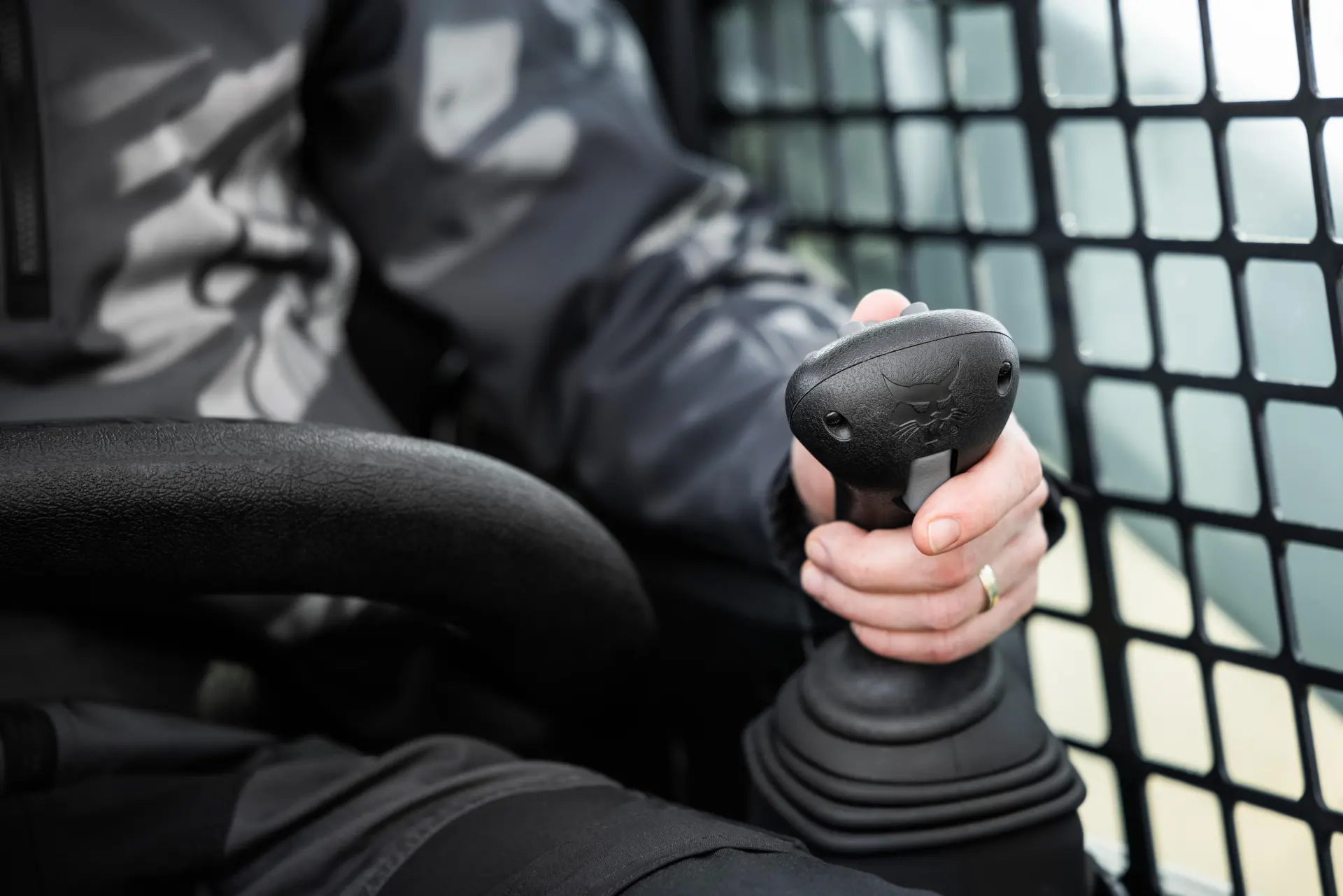

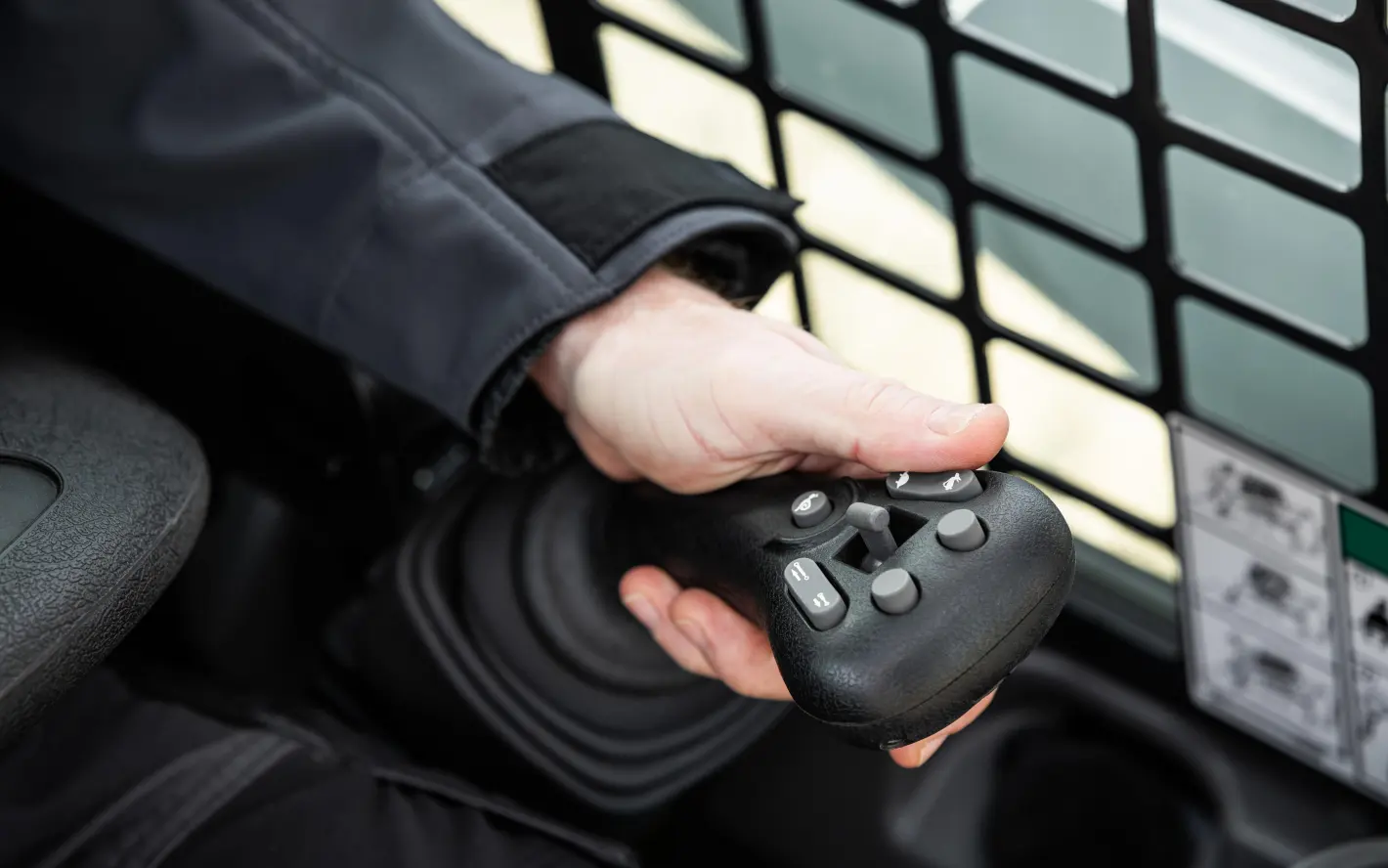

Choose from multiple control options including Advanced Control System (ACS) and Selectable Joystick Controls (SJC) for precise handling and improved operator comfort.

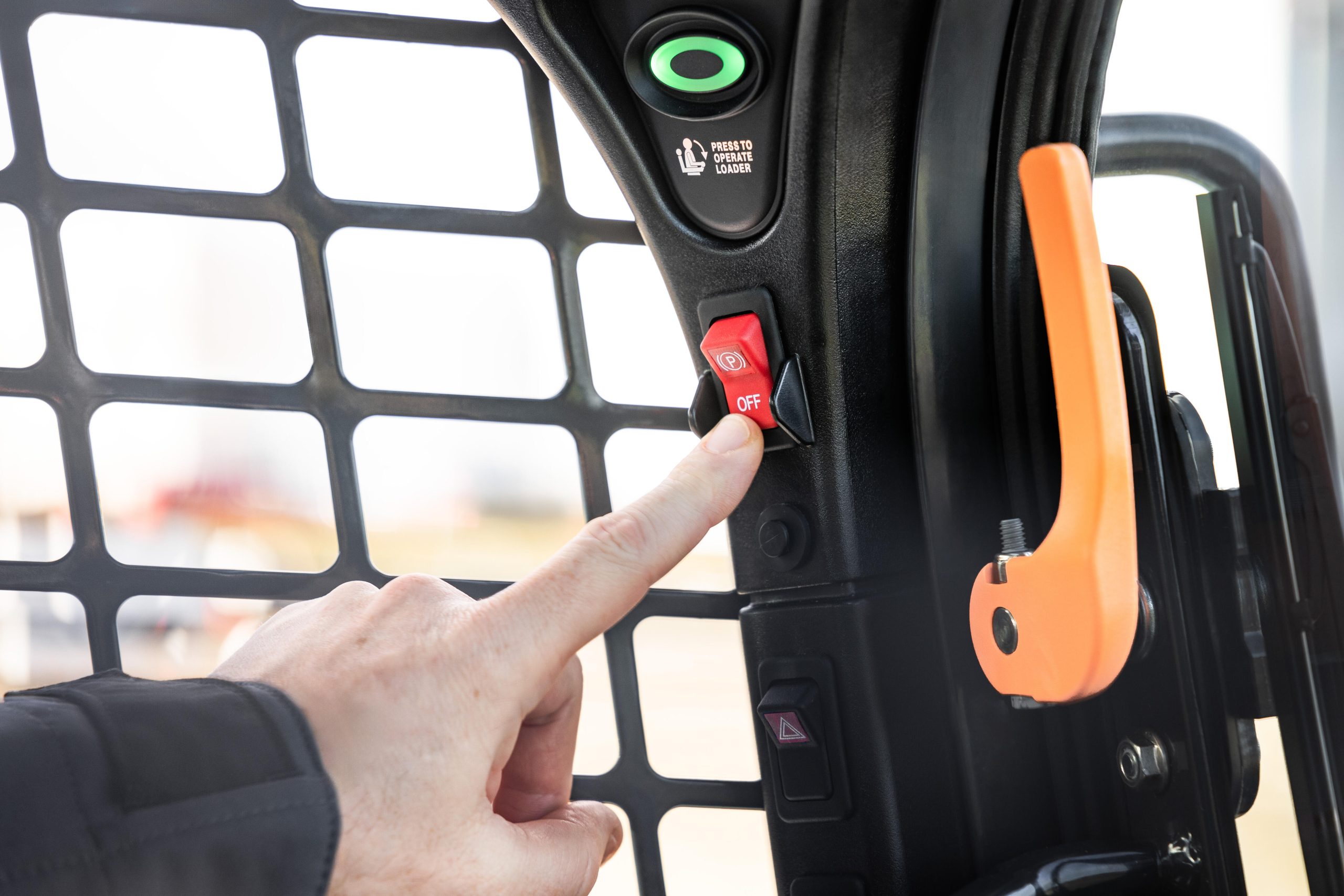

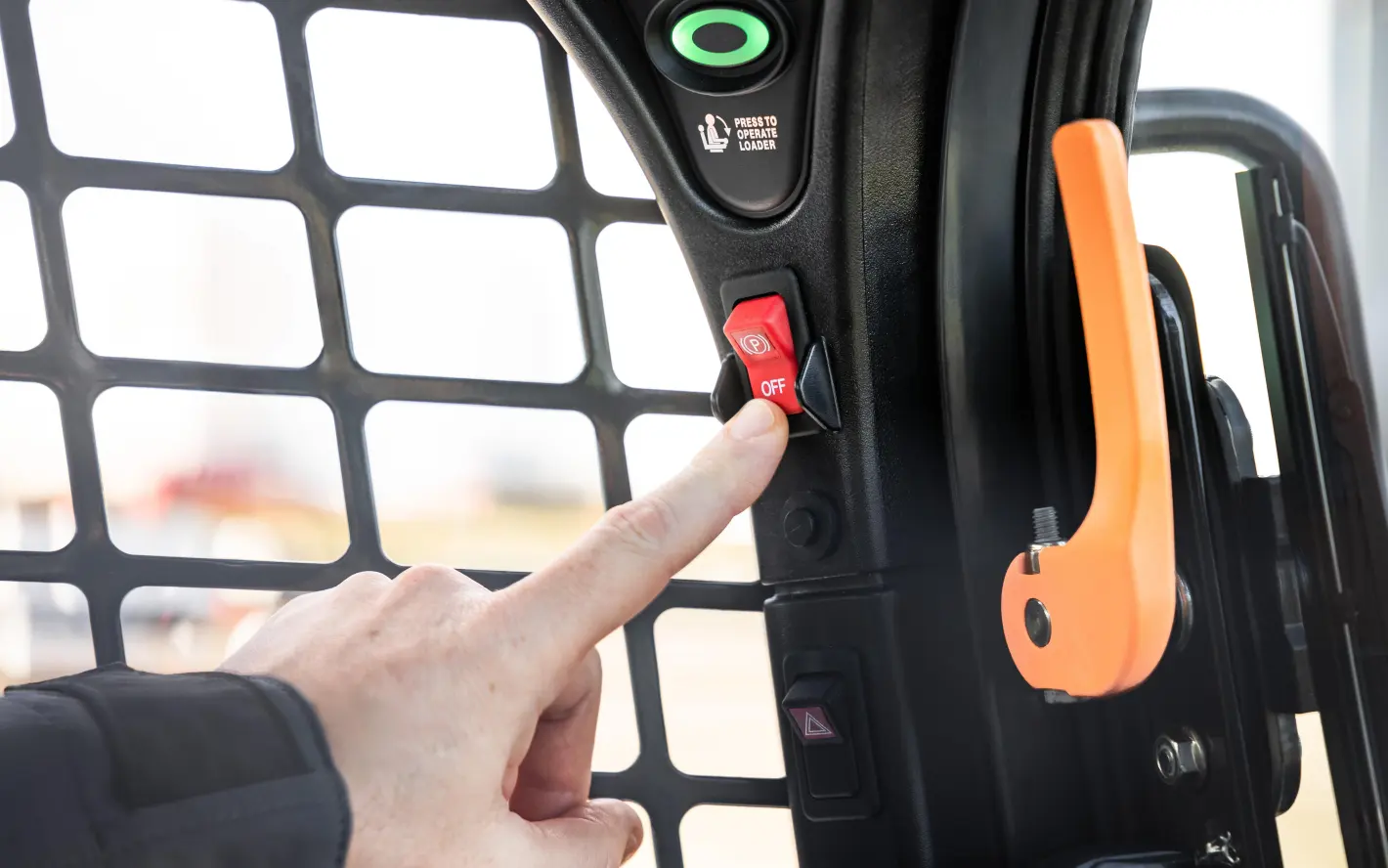

The deluxe cab features high-back adjustable suspension seats and climate control options, ensuring operator comfort and safety during extended working hours.

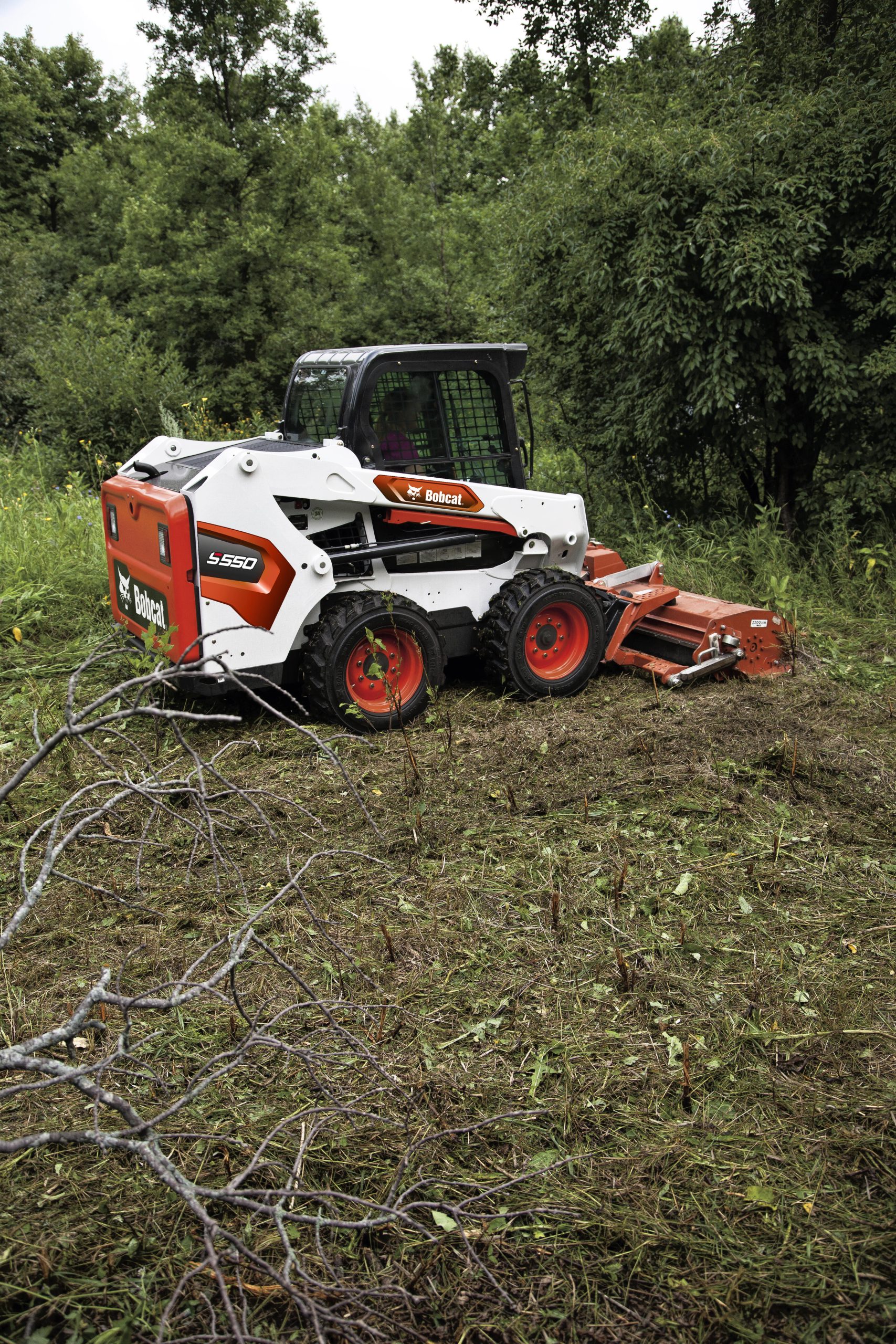

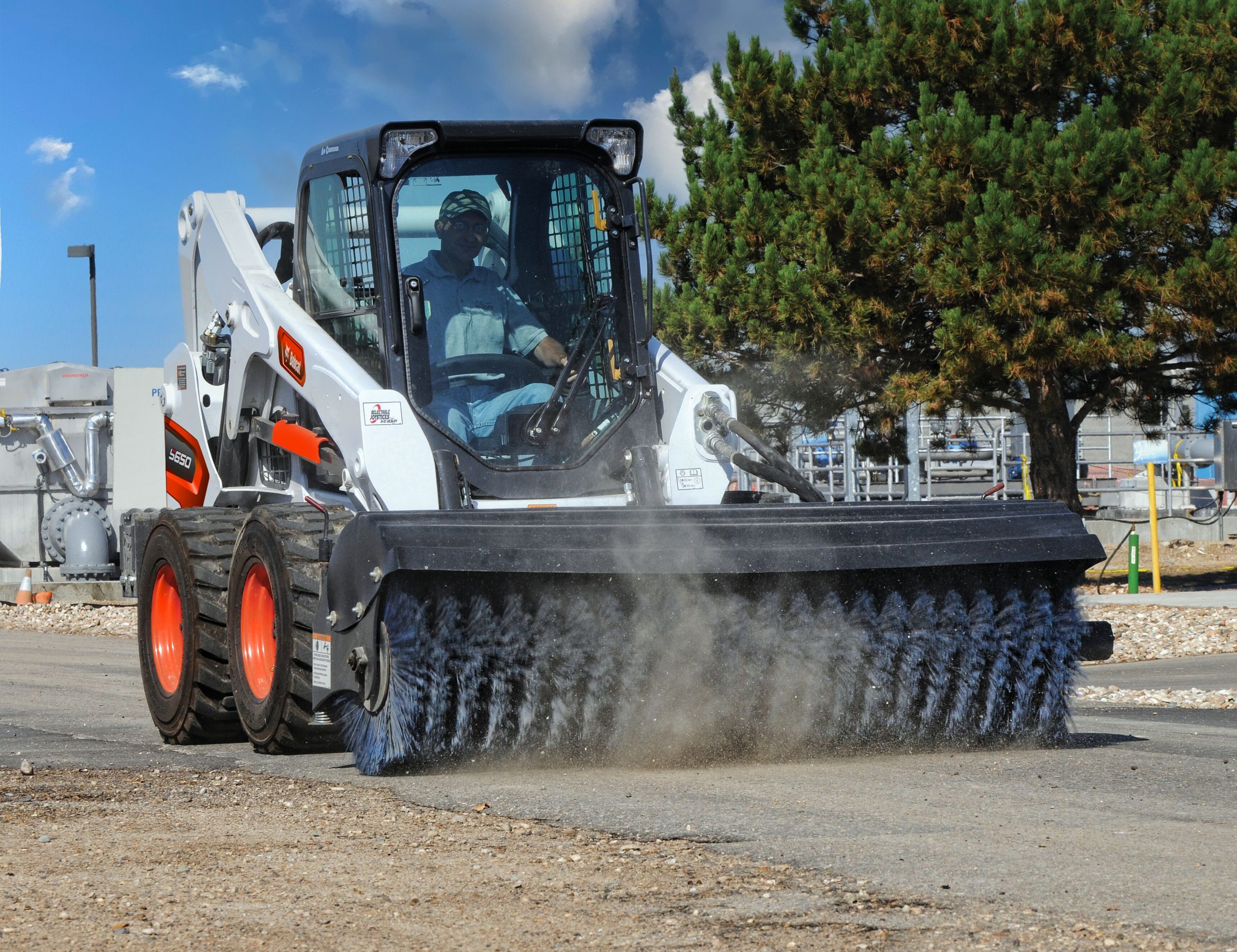

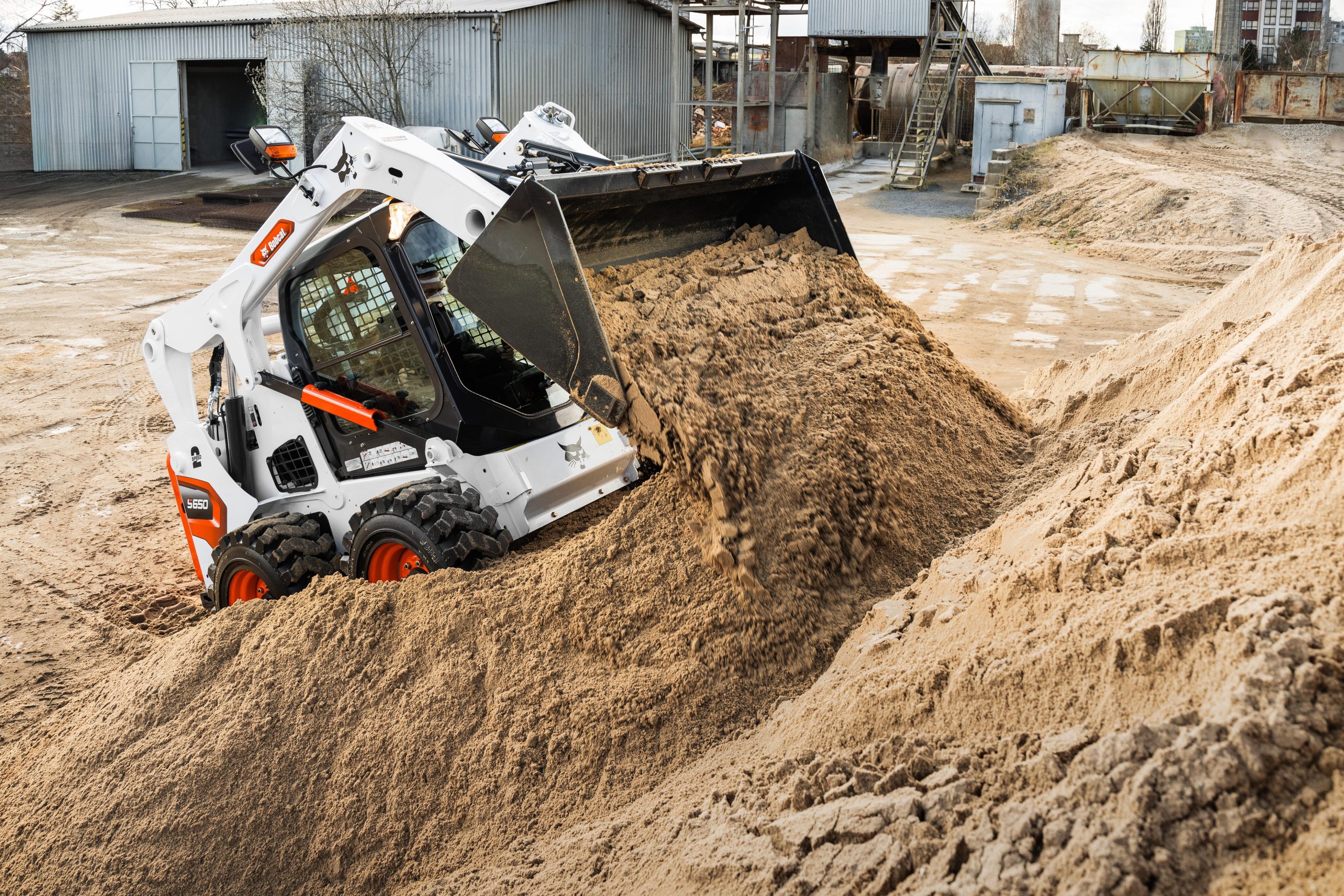

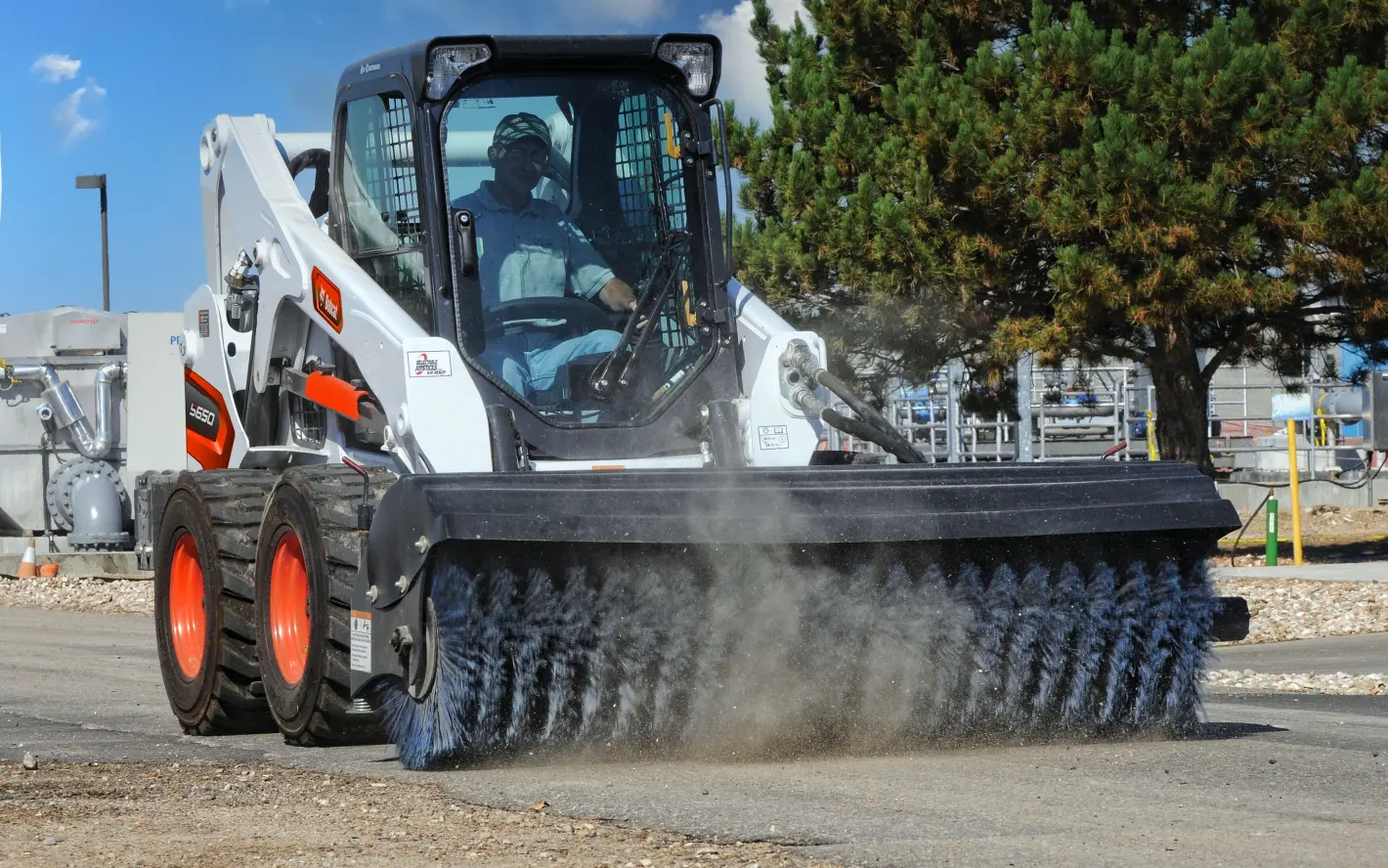

Compatible with a wide range of attachments such as augers, breakers, and buckets, the S650 provides flexibility to tackle diverse projects efficiently.

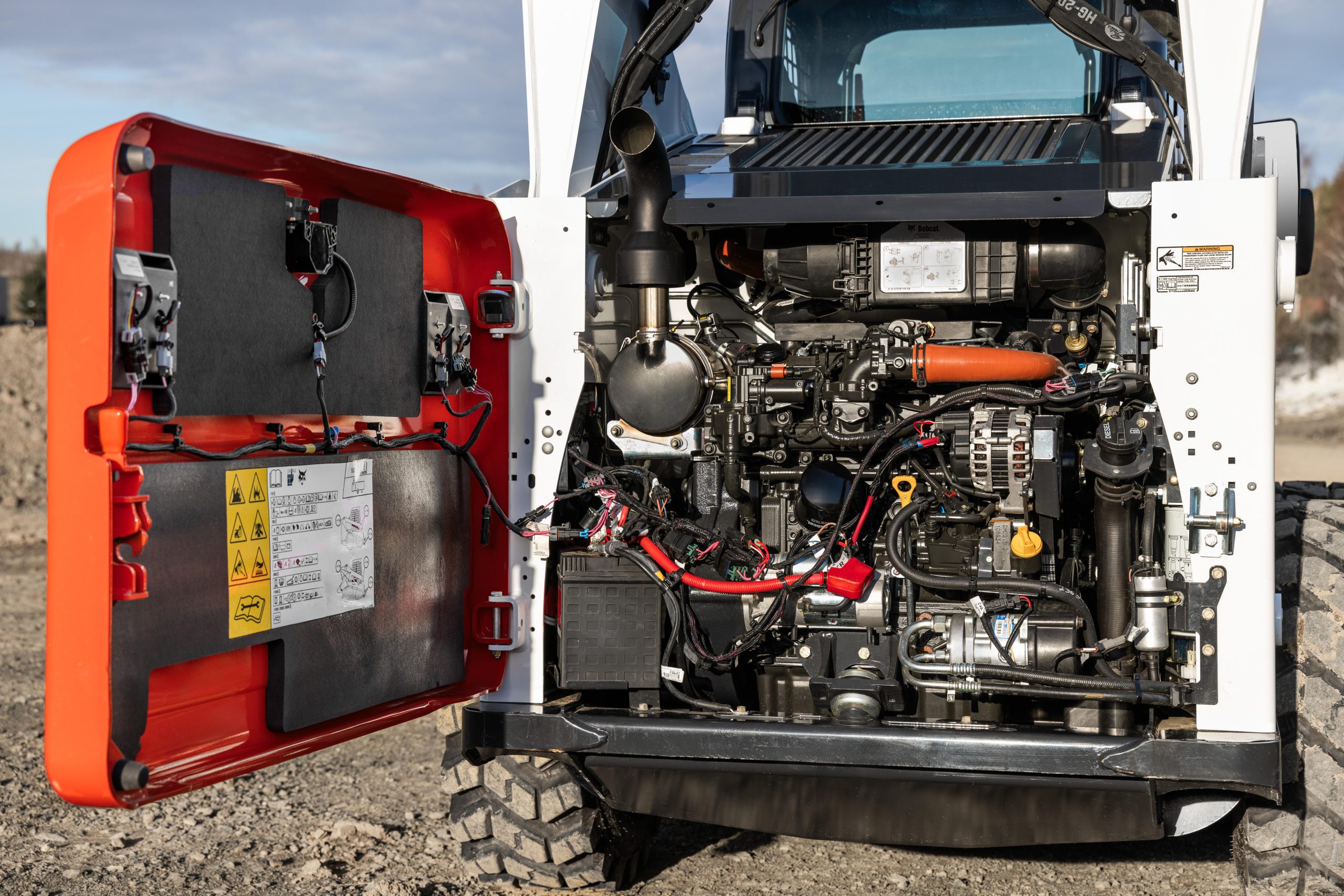

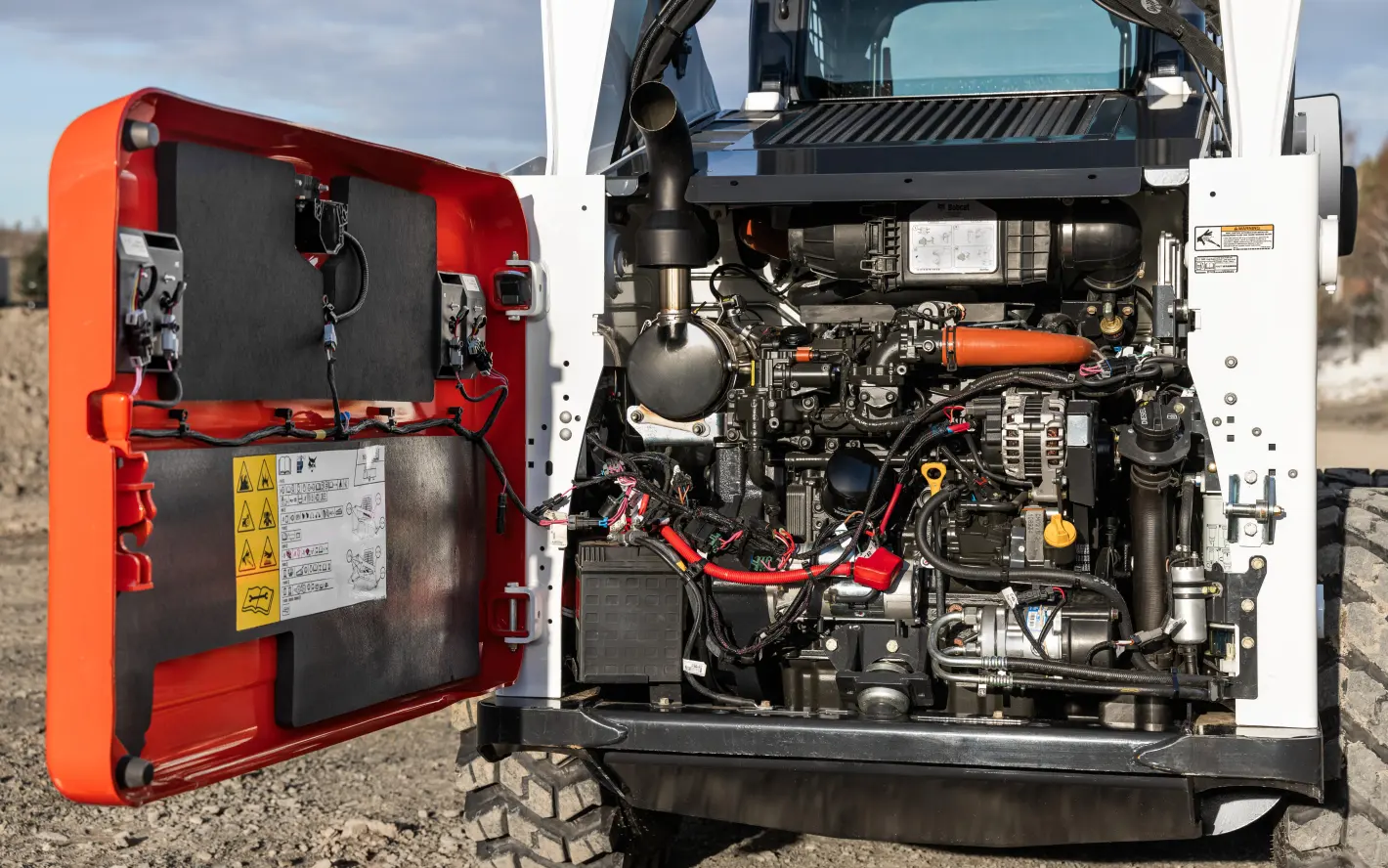

Equipped with a Kubota V3307-DI-TE3 engine, the S650 delivers 55.4 kW of power, ensuring robust performance and fuel efficiency for demanding operations.
With the Bobcat S650
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Rated operating capacity
1282 kgHorsepower
74 hpOperating weight
3777 kgTipping load (ISO 14397-1)
2564 kgRated operating capacity
1282 kgPump capacity
87 L/minPump capacity (with high flow option)
115/minSystem relief at quick couplers 23.8-
24 MPaMax. travel speed (high range - option)
20 km/hMax. travel speed (low range)
11 km/hMake / Model
Kubota / V3307-DI-TE3Engine Cooling
LiquidEngine Fuel
DieselHorsepower
74 hpTorque at 1425 RPM (SAE J1995 Gross)
264 NmNumber of cylinders
4Displacement
3331 cm3Fuel tank
103 LOperating weight
3777 kgShipping weight
3540 kgVehicle steering
Direction and speed controlled by two hand leversLoader hydraulics tilt and lift
Separate foot pedals, optional Advanced Control System (ACS), Advanced Hand Control (AHC) or Selectable Joystick Control (SJC)Front auxiliary (standard)
Electrical switch on right-hand steering leverTransmission
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motorsHigh-back adjustable suspension seat
Lift arm supportAutomatically activated glow plugs
Work lights, front and rearBob-Tach™ frame
Parking brakeBobcat Interlock Control System (BICS)
Seat beltDeluxe operator cab1
Seat barElectrically activated proportional front auxiliary
12 x 16.5, 12–ply, Heavy duty tyreshydraulics Engine/hydraulics system shutdown
Turbo-charger with approved spark arrestor2 Speed
Advanced Control System (ACS)High-Flow hydraulics
Advanced Hand Controls (AHC)Deluxe instrument panel
Selectable Joystick Controls (SJC)Deluxe pressurized cab with heating
Air ride seat with 2 point seat beltAir conditioning
Air ride seat with 3 point seat beltPower Bob-Tach™
Back-up alarm33 x 15.5-16.5, 12-ply, Superflotation tyres, offset rims
Beacon12 x 16.5, 12-ply, Heavy duty tyres, offset rims
Fire extinguisher12 x 16.5, 12–ply, Severe duty tyres
StrobeRelated Equipment
