Product Overview
Compact Power for Versatile Tasks

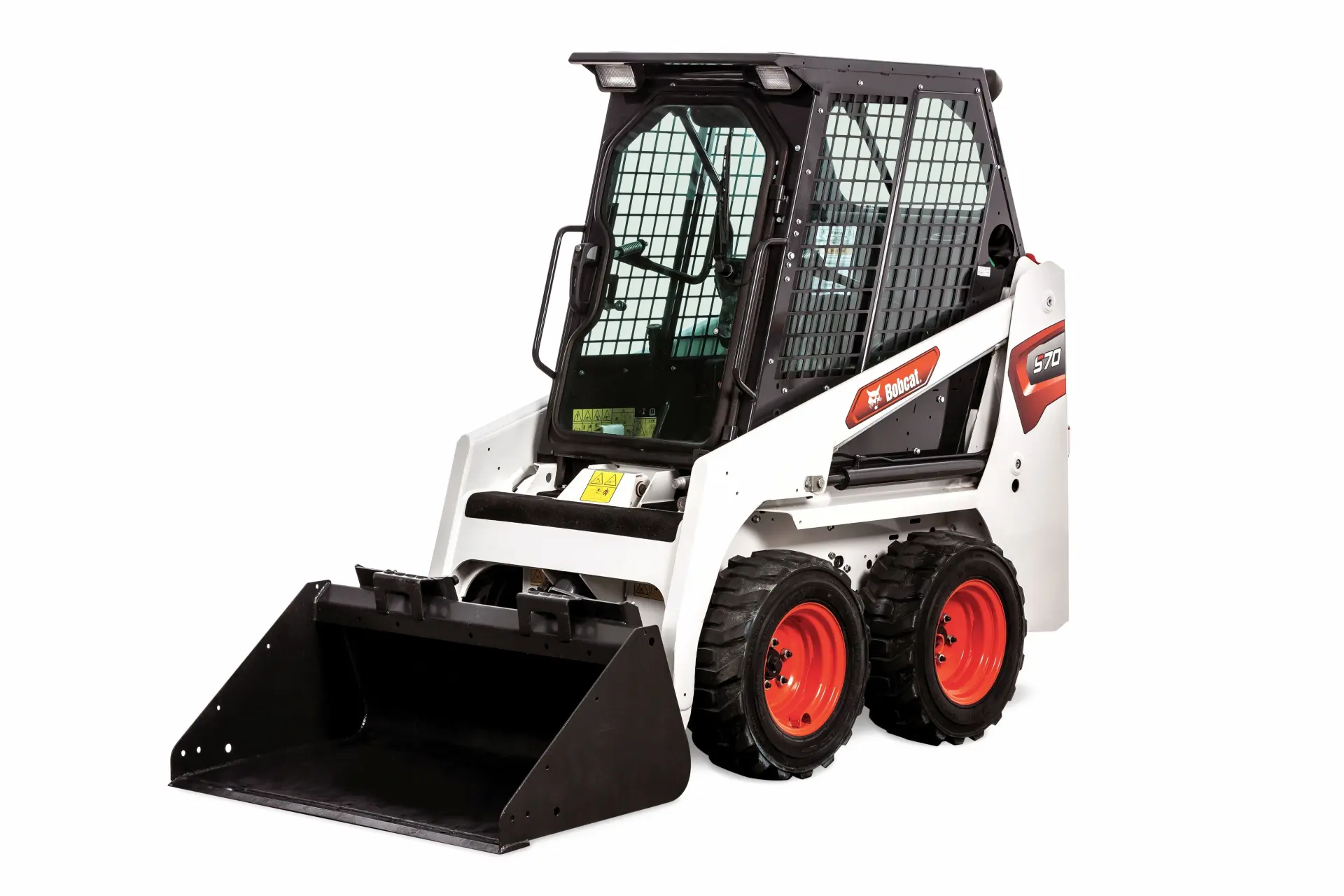

The Bobcat S70 Skid Steer Loader is designed for efficiency in tight spaces, offering robust performance and easy maneuverability. Ideal for landscaping and construction tasks.
– Compact design for tight spaces
– Powerful engine for demanding tasks
– Versatile attachments for various applications

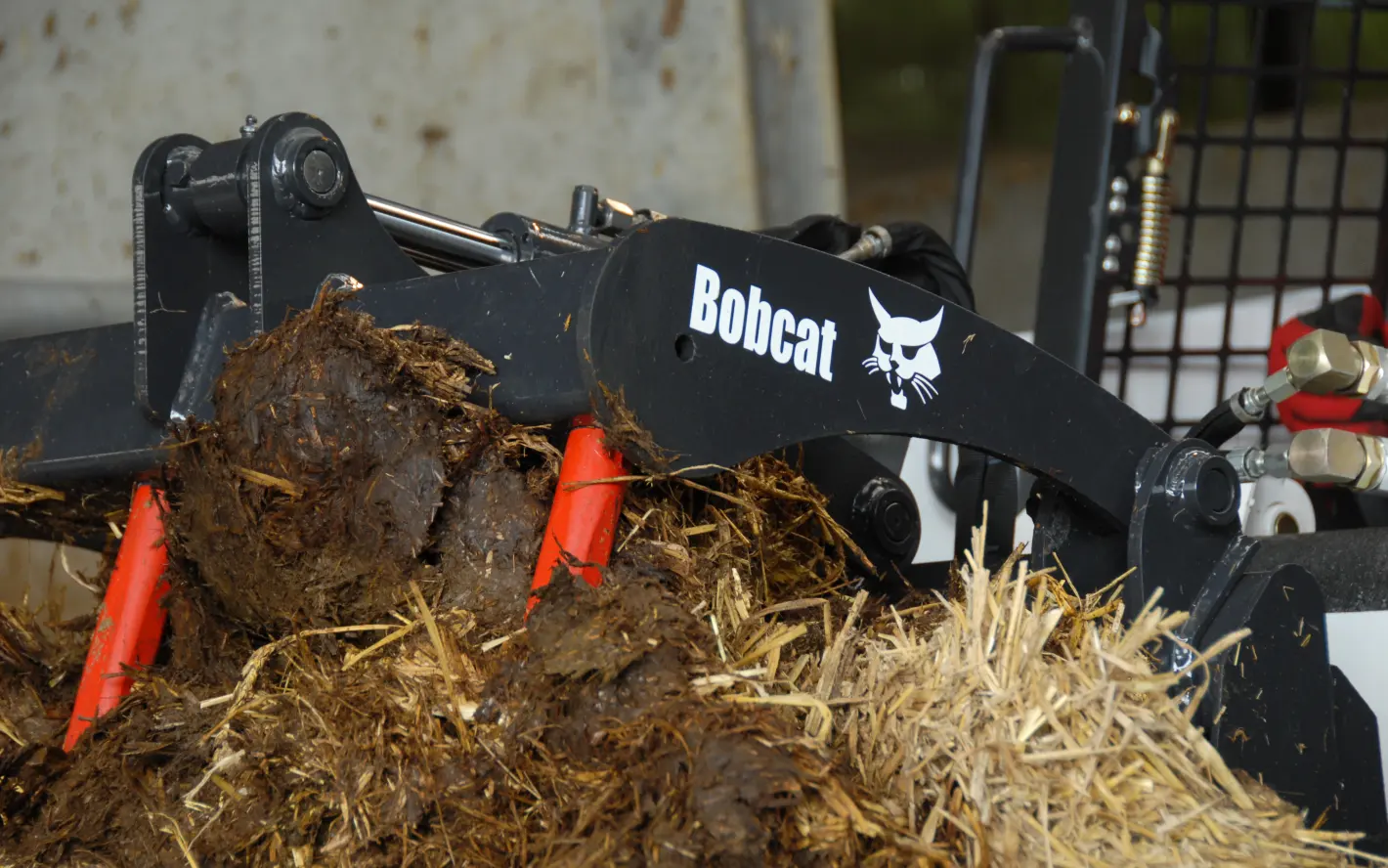

The S70’s compact dimensions allow it to navigate through tight areas, making it perfect for tasks in confined spaces where larger machines cannot operate.

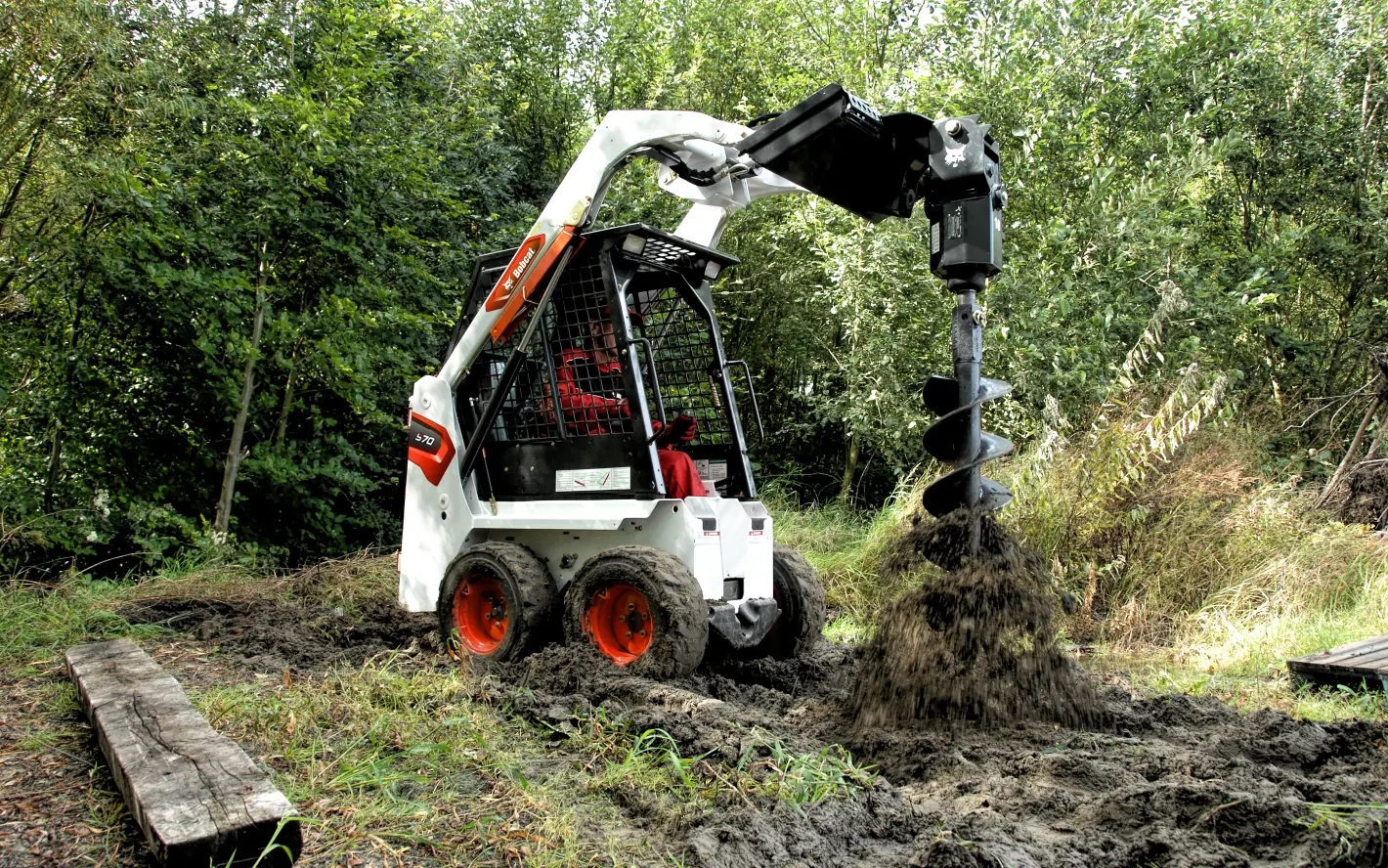

Equipped with a Kubota diesel engine, the S70 provides 17.5 kW of power, ensuring efficient operation for a variety of demanding tasks.

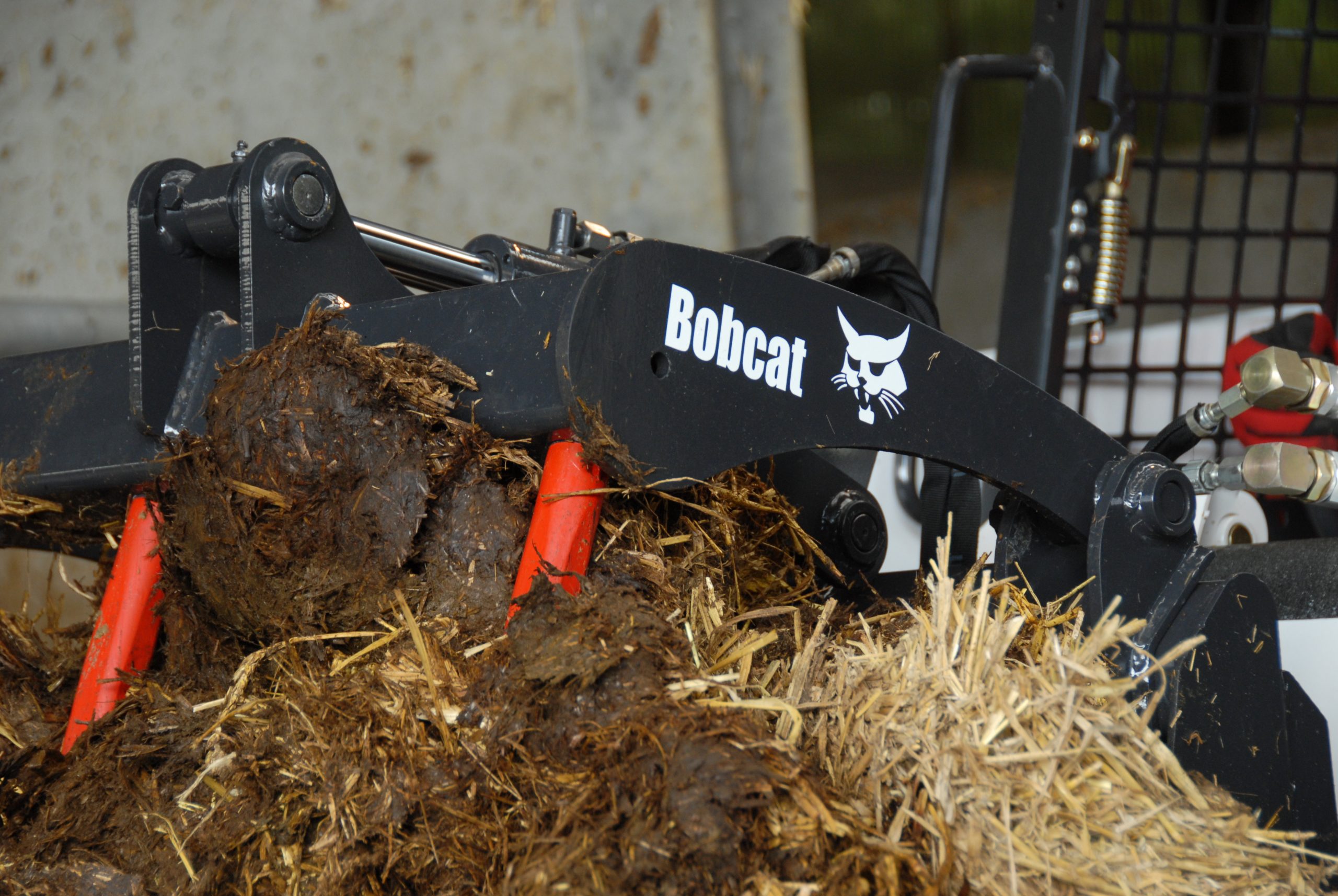

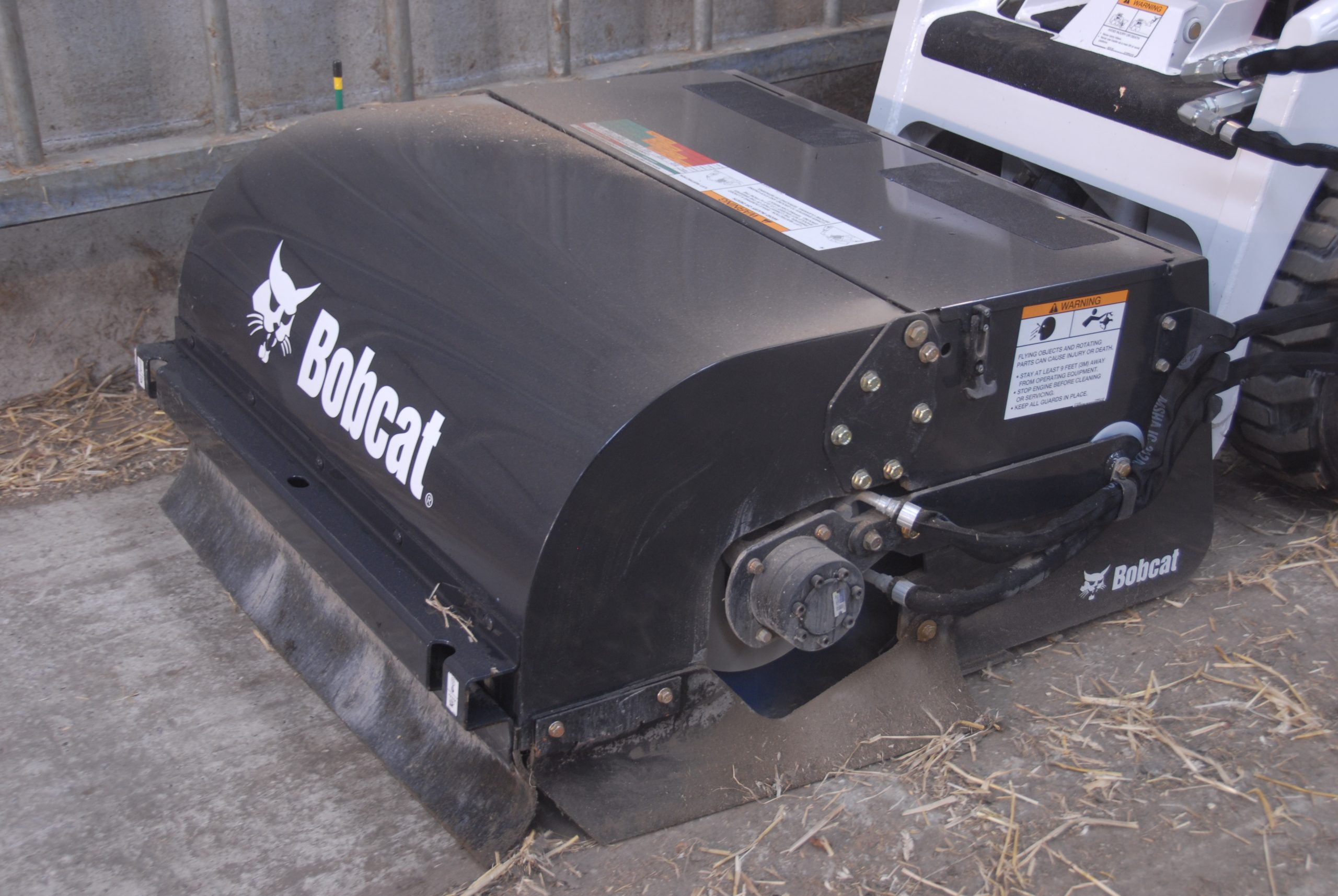

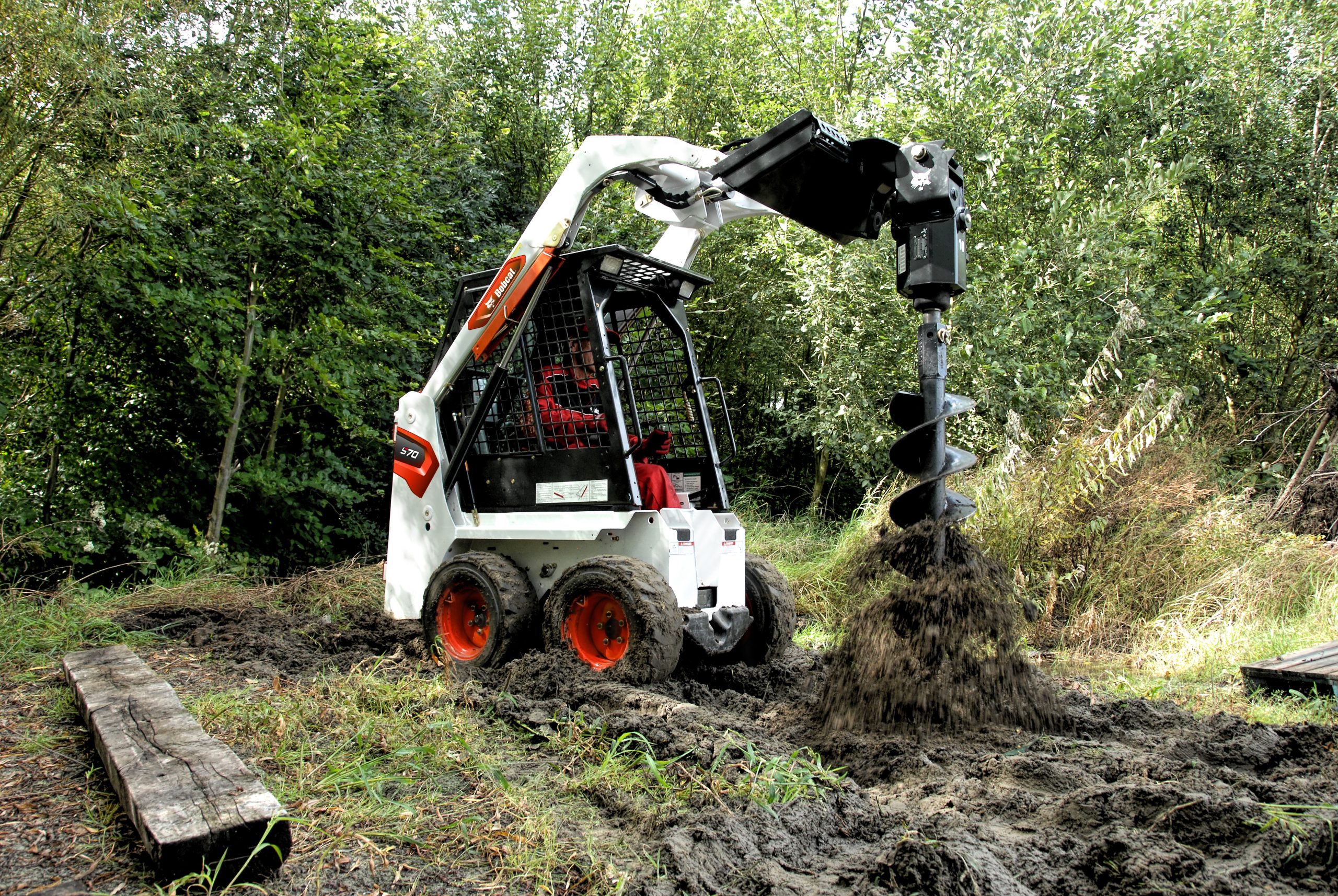

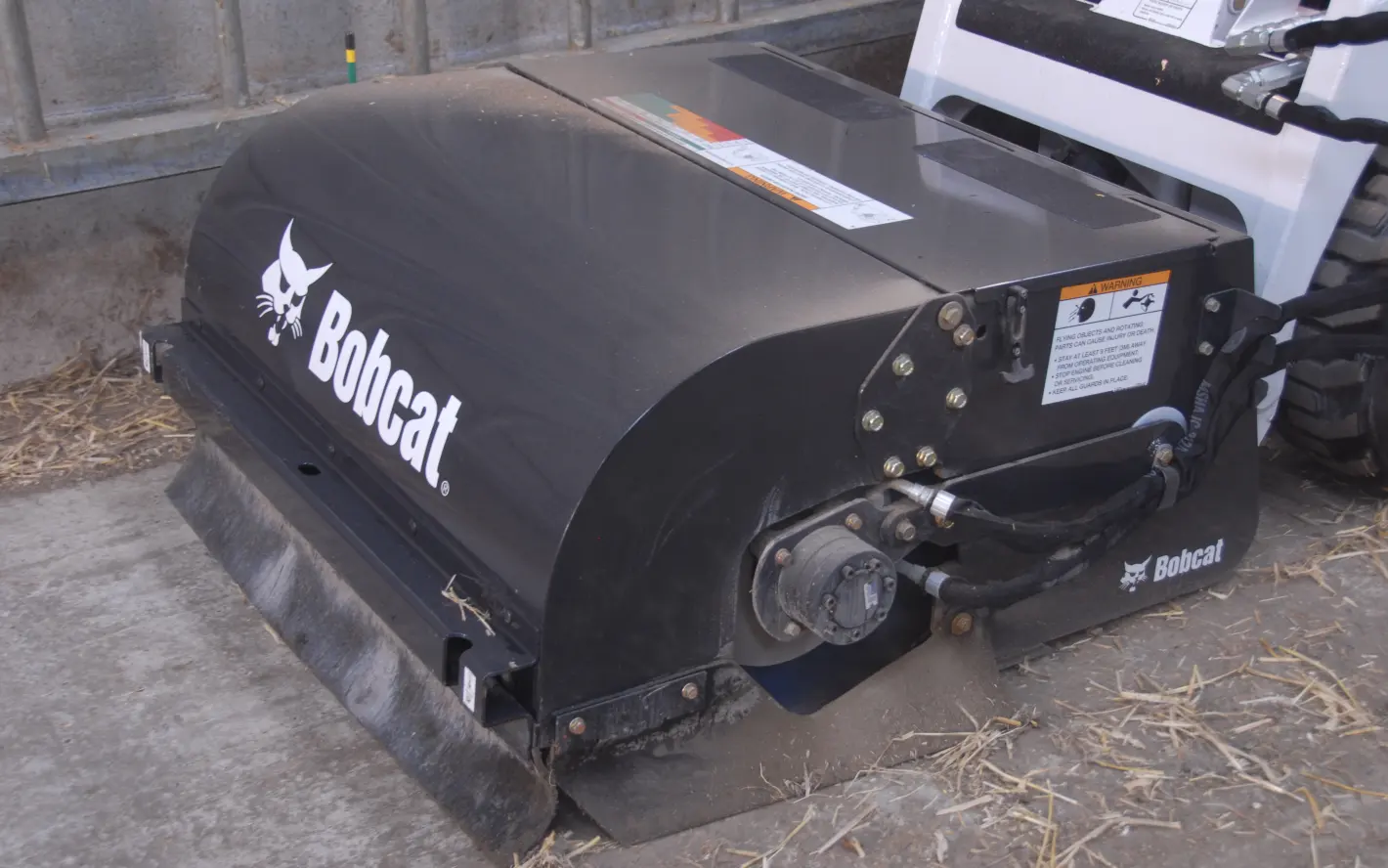

With a wide range of available attachments, including augers and brooms, the S70 can be customized to handle various jobs, enhancing productivity and flexibility.

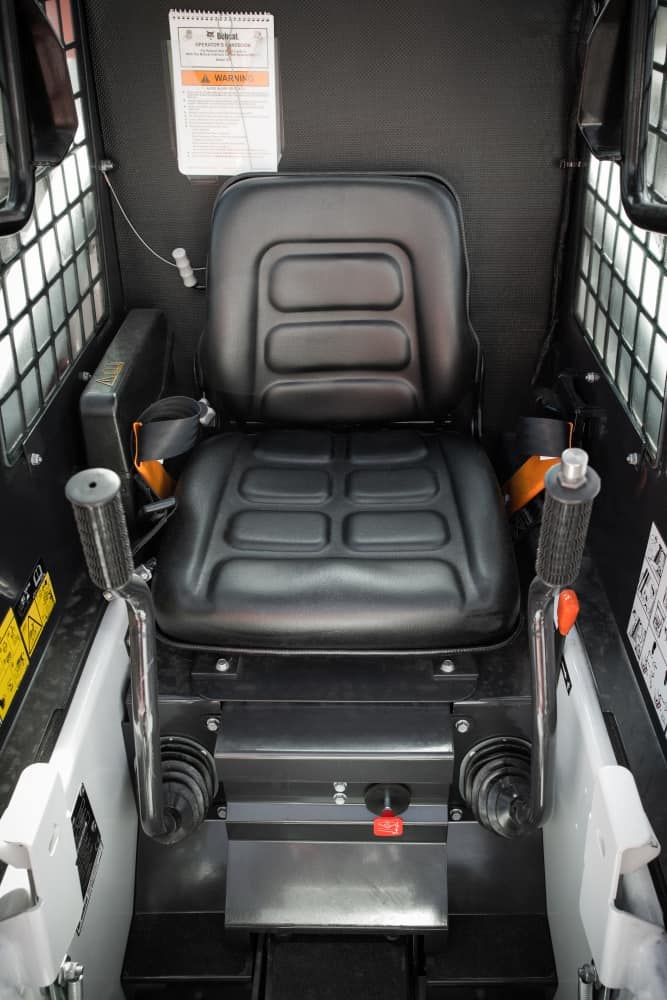

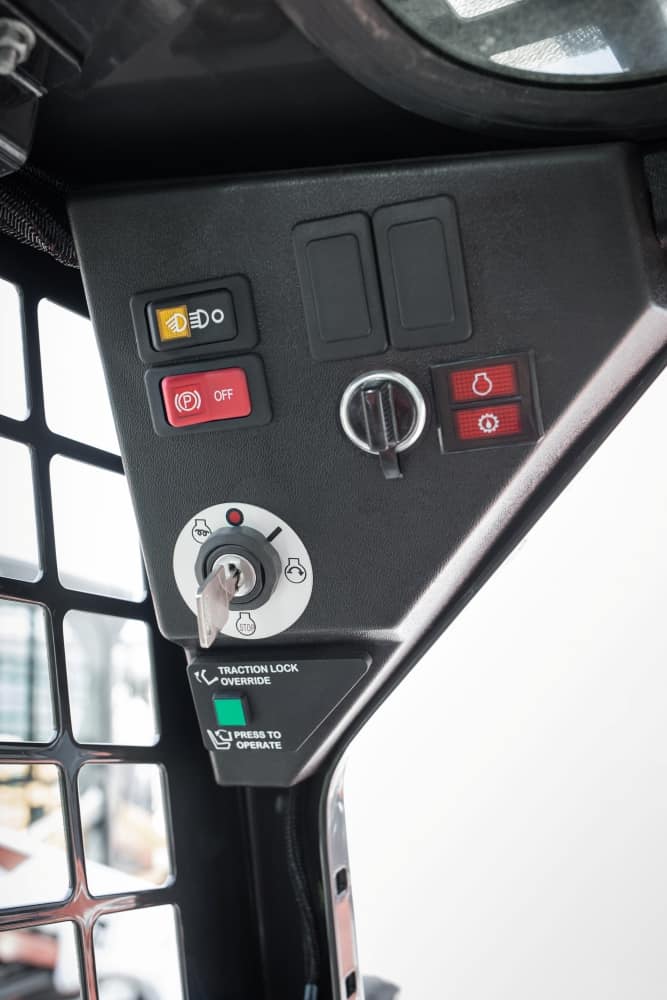

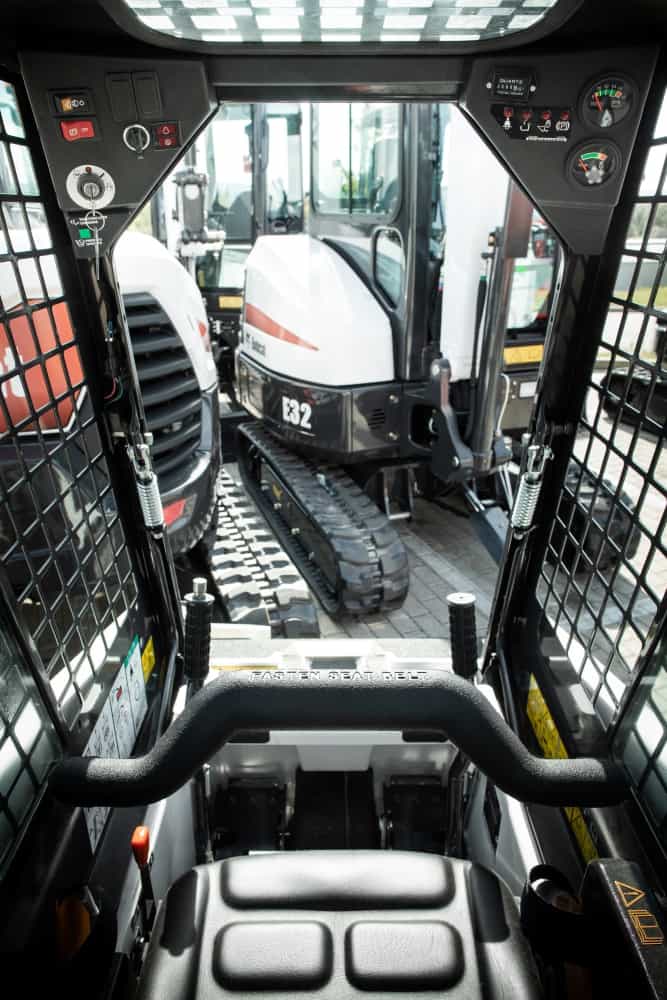

The intuitive hand lever and pedal controls make operating the S70 straightforward, reducing operator fatigue and increasing job site efficiency.

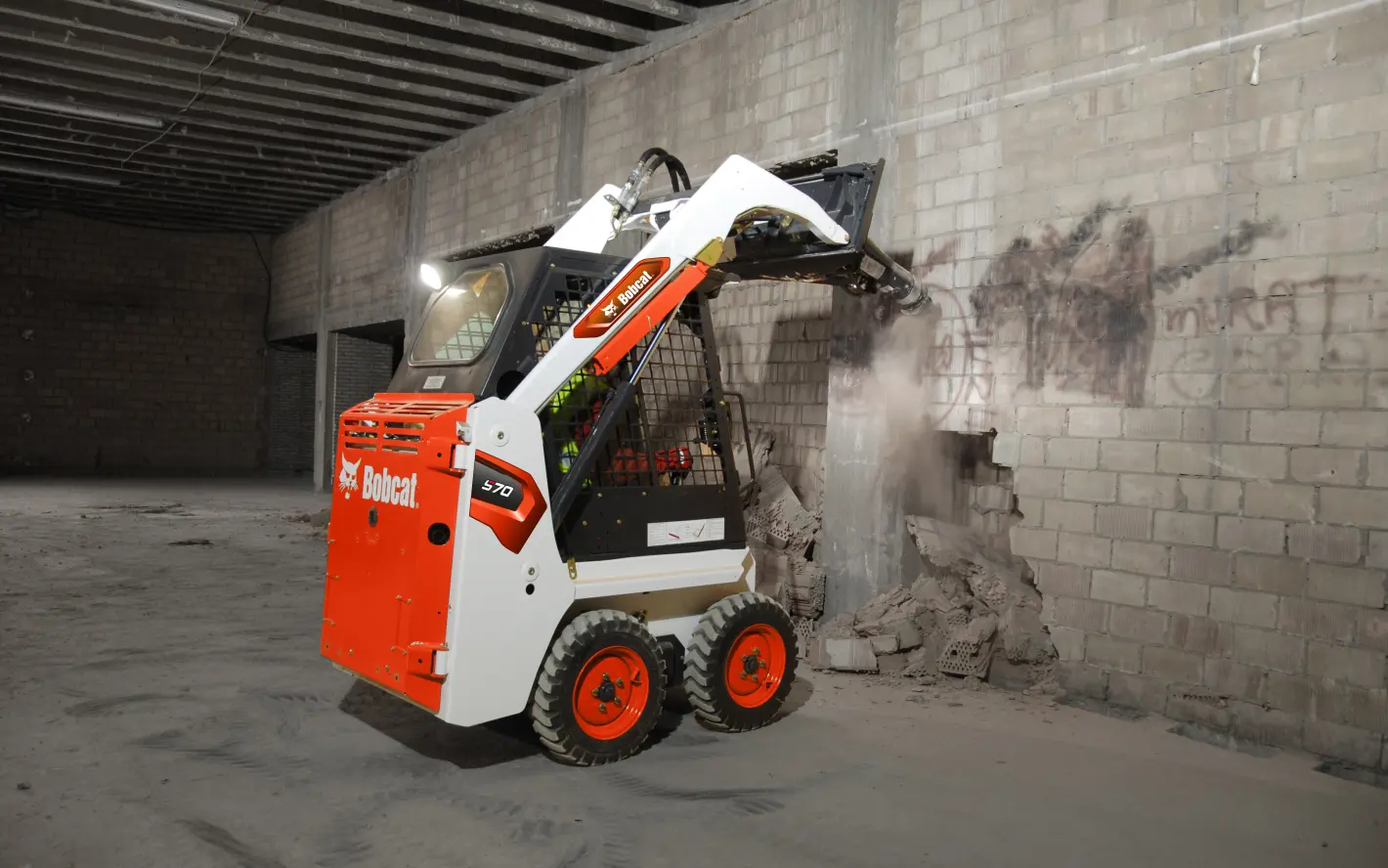

The S70 features robust construction with a reinforced frame and protective elements, ensuring longevity and reliability in challenging environments.
With the Bobcat S70
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Rated operating capacity
343 kgHorsepower
23 hpOperating weight
1268 kgTipping load (ISO 14397-1)
686 kgRated operating capacity
343 kgPump capacity
37 L/minSystem relief at quick couplers
20. MPaMax. travel speed (low range)
9 km/hMake / Model
Kubota / D1005-E4B-BC-3Engine Cooling
LiquidEngine Fuel
DieselHorsepower
23 hpTorque at 1425 RPM (SAE J1995 Gross)
62 NmNumber of cylinders
3Displacement
1001 cm3Fuel tank
24 LOperating weight
1268 kgShipping weight
1109 kgVehicle steering
Direction and speed controlled by two hand leversLoader hydraulics tilt and lift
Separate foot pedalsFront auxiliary (standard)
Lateral movement of right-hand steering leverTransmission
Infinitely variable tandem hydrostatic piston pumps, driving two fully reversing hydrostatic motorsAutomatically activated glow plugs
Operator cab 1Bob-Tach™ frame
Parking brakeBobcat Interlock Control System (BICS)
Rear and top windowFront auxiliary hydraulics
Seat beltSuspension seat
Seat barManual
Spark arrestor mufflerLift arm support
CE certification23 x 5.70-12, 4–ply, Narrow tyres
Warranty: 24 months or 2000 hours (whichever occurs first)Deluxe pressurized cab with heating 23 x 8.50-12 6-ply, heavy duty tyres
Back-up alarmOperator LpA(98/37 & 474-1)
86 dB(A)Operator LpA uncertainty
2.5Noise level LWA(EU Directive 2000/14/EC)
97 dB(A)Whole body vibration (ISO 2631–1)
1.29 ms-2Hand-arm vibration (ISO 5349–1)
1.54 ms-2Related Equipment
