Product Overview
Unleash Power in Compact Form
Bobcat’s M-Series Compact Track Loaders offer unmatched performance and versatility for demanding tasks. Designed for efficiency and reliability, these loaders excel in tough environments.
– High tipping load for heavy-duty tasks
– Compact design for tight spaces

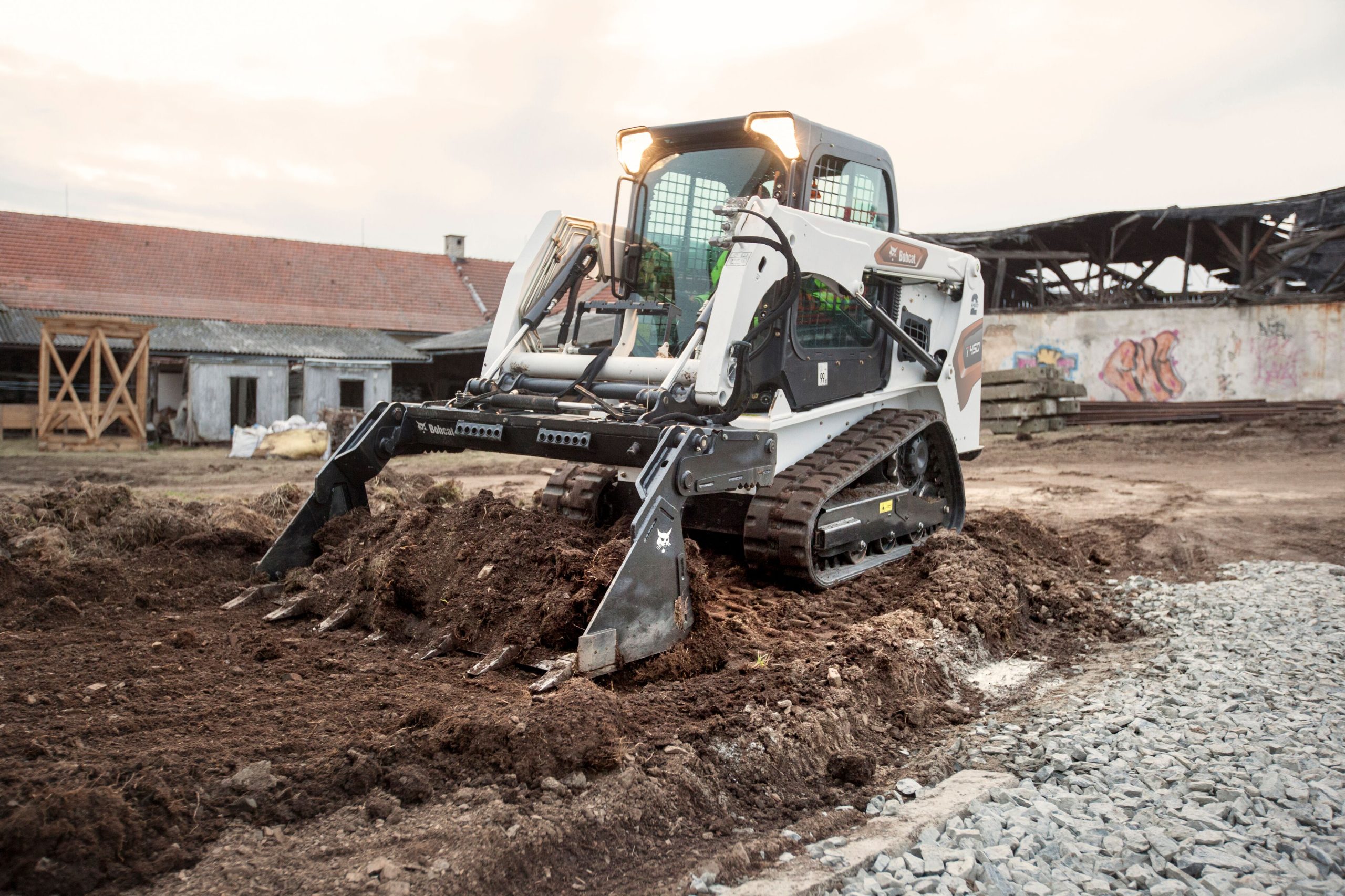

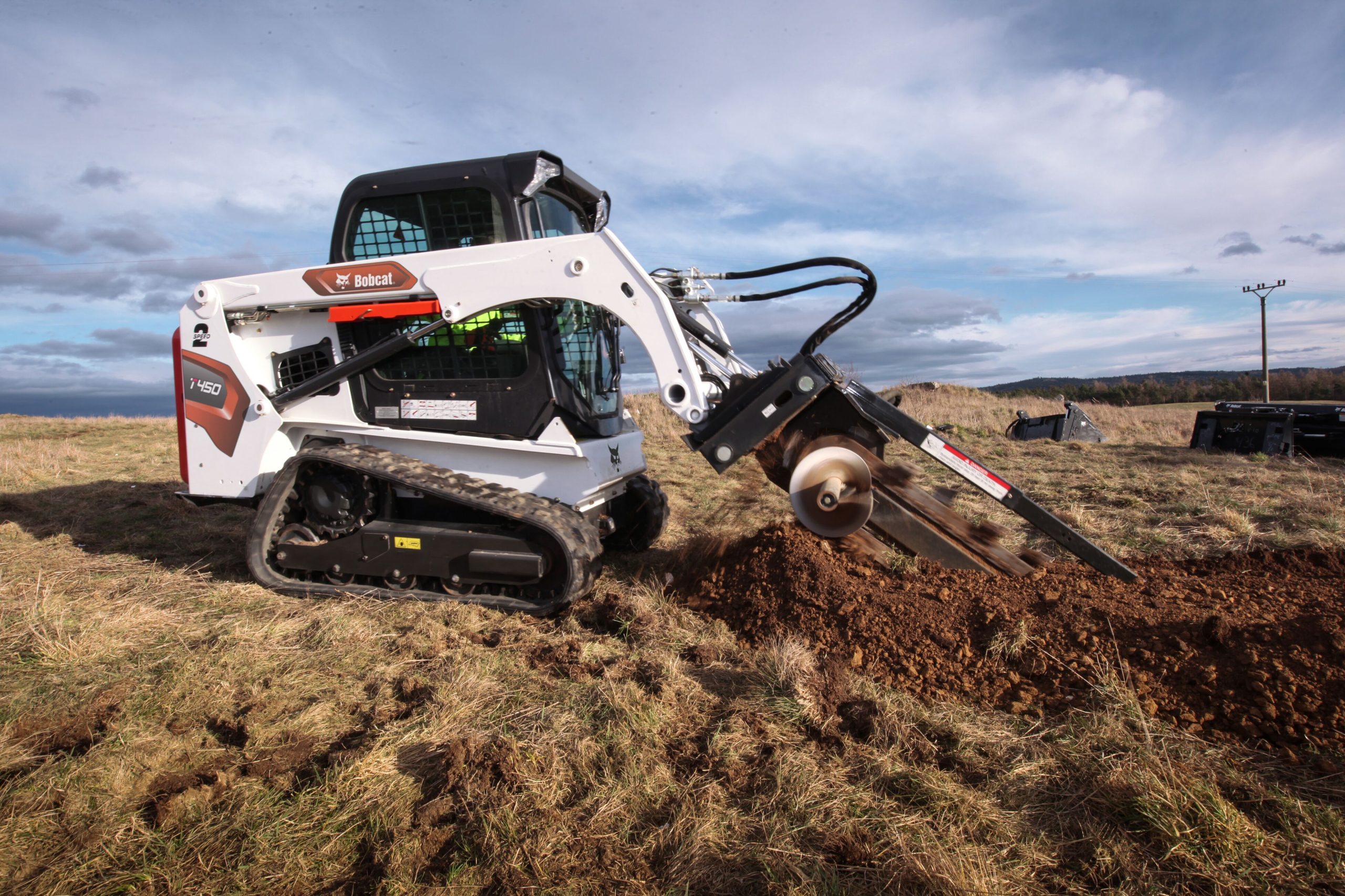

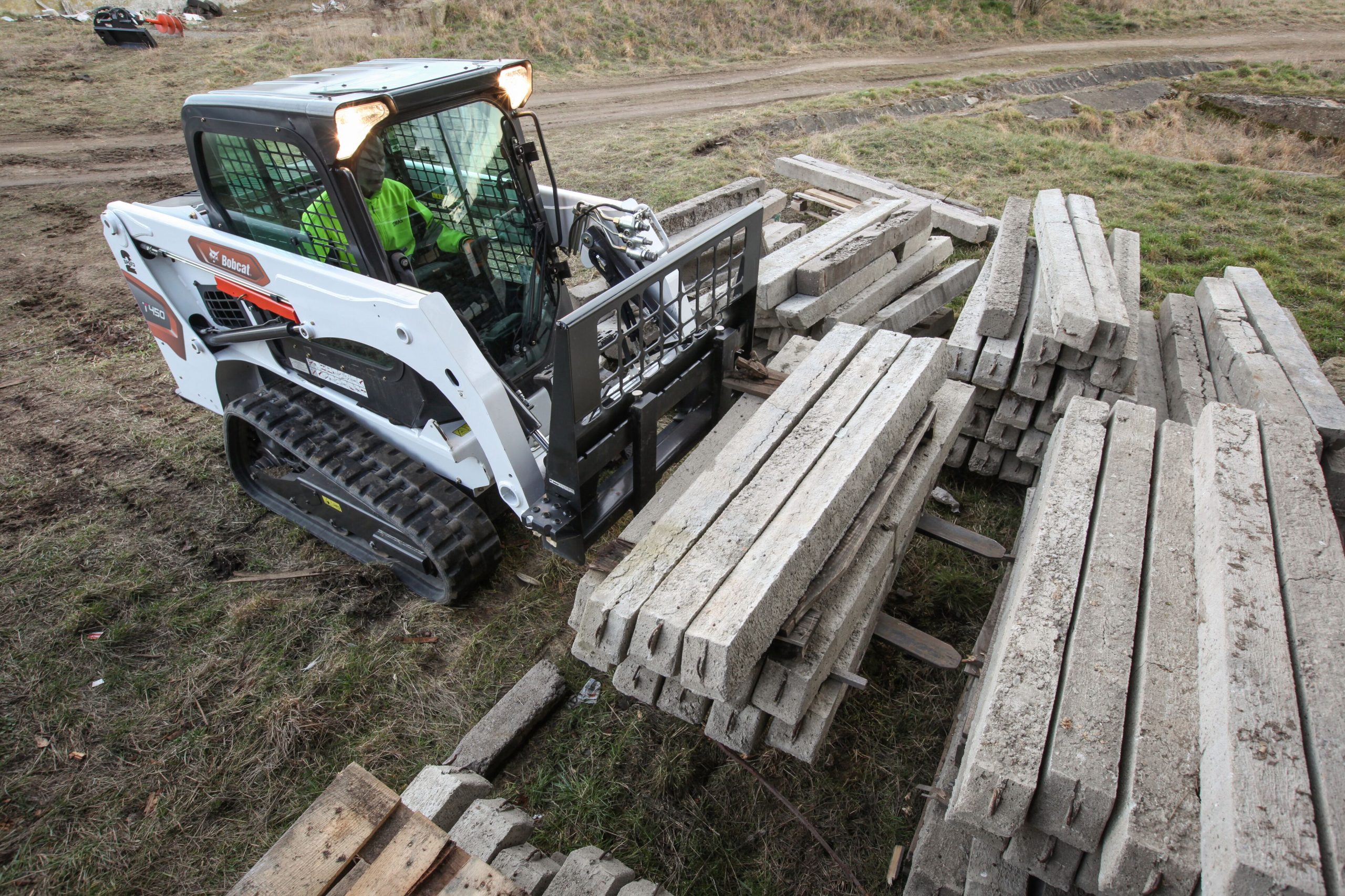

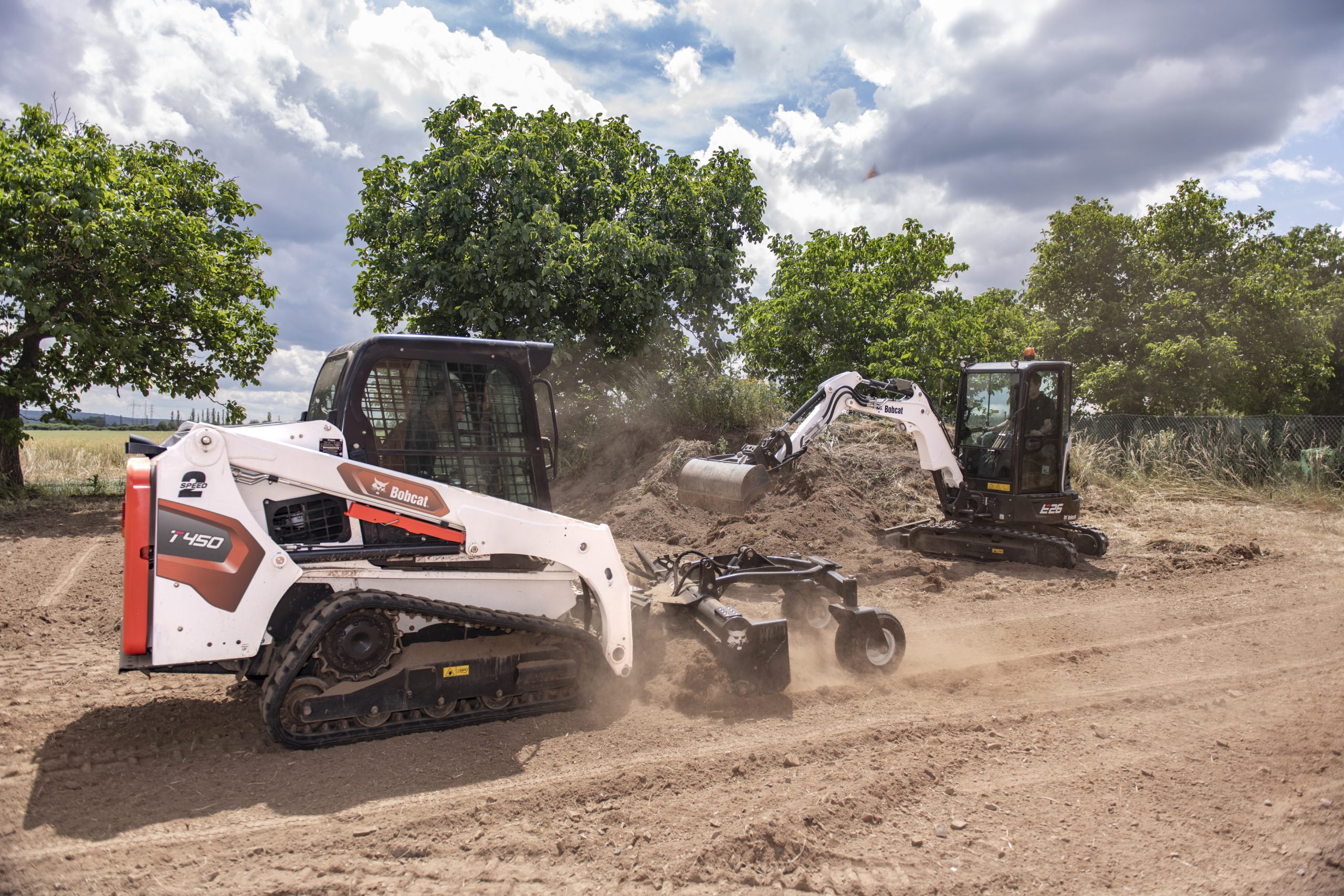

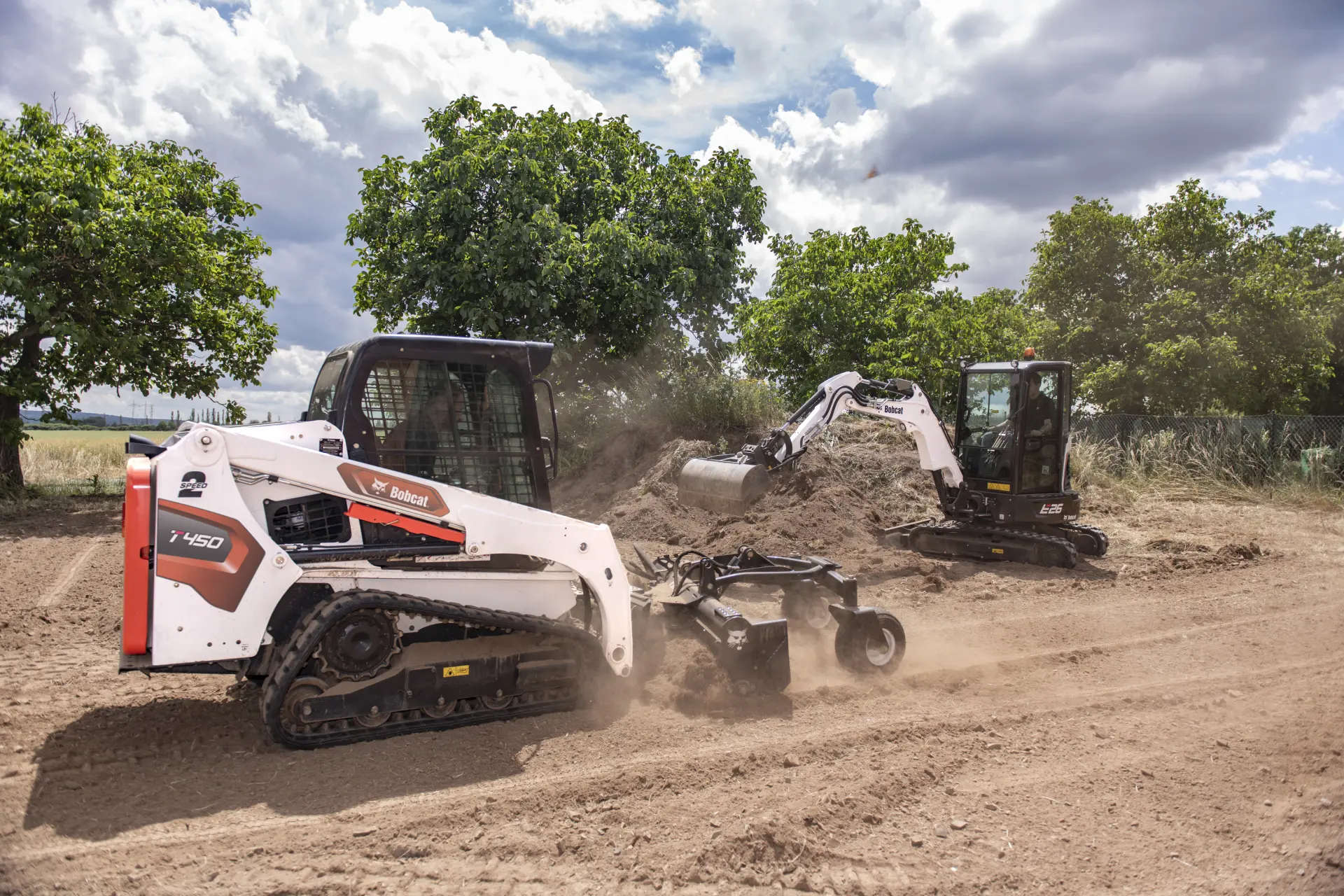

– Over 100 compatible attachments
– Advanced comfort features

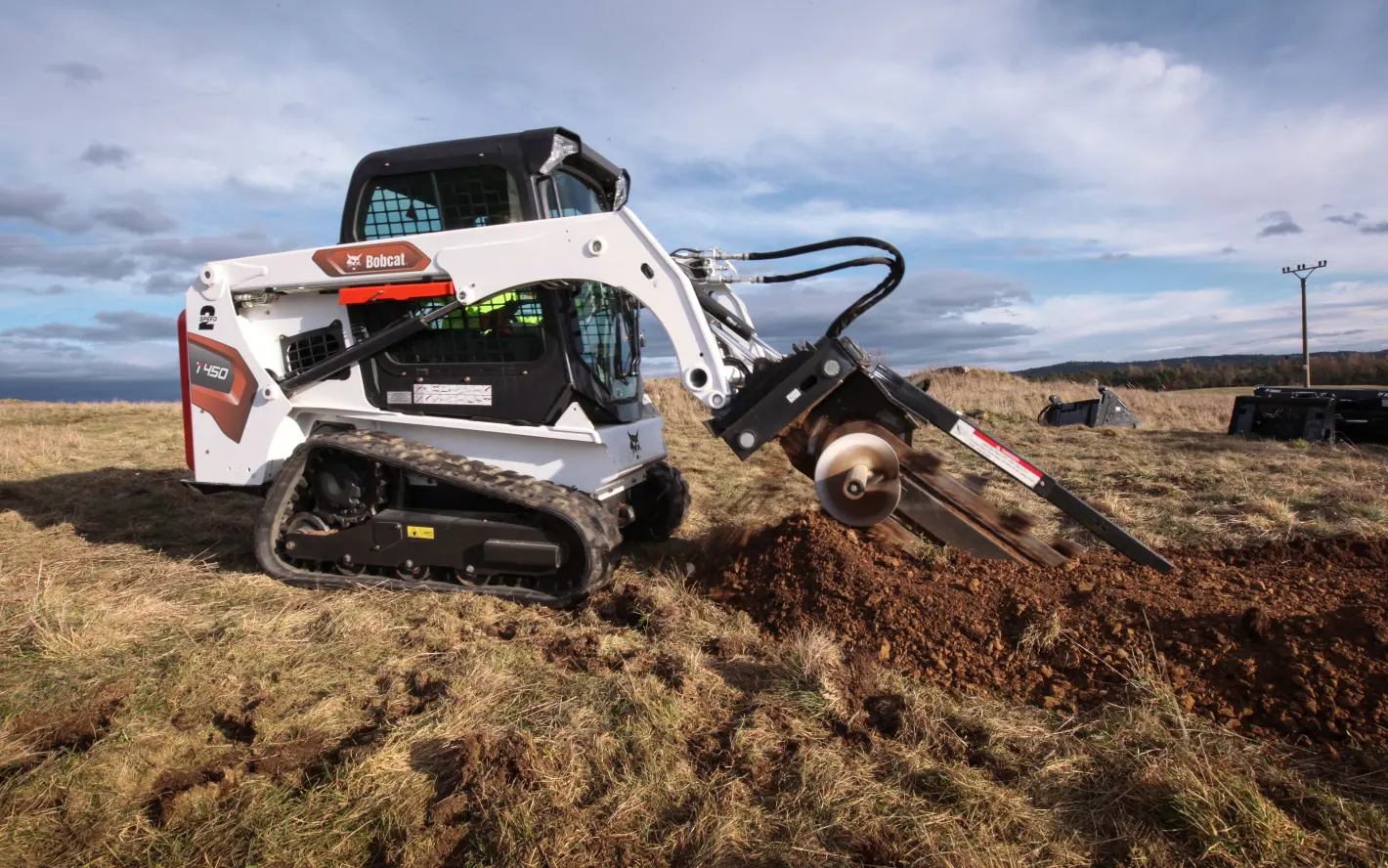

The high-flow hydraulics option doubles the hydraulic flow, enabling the use of more powerful attachments. This feature enhances the machine’s versatility, making it suitable for a wide range of tasks.

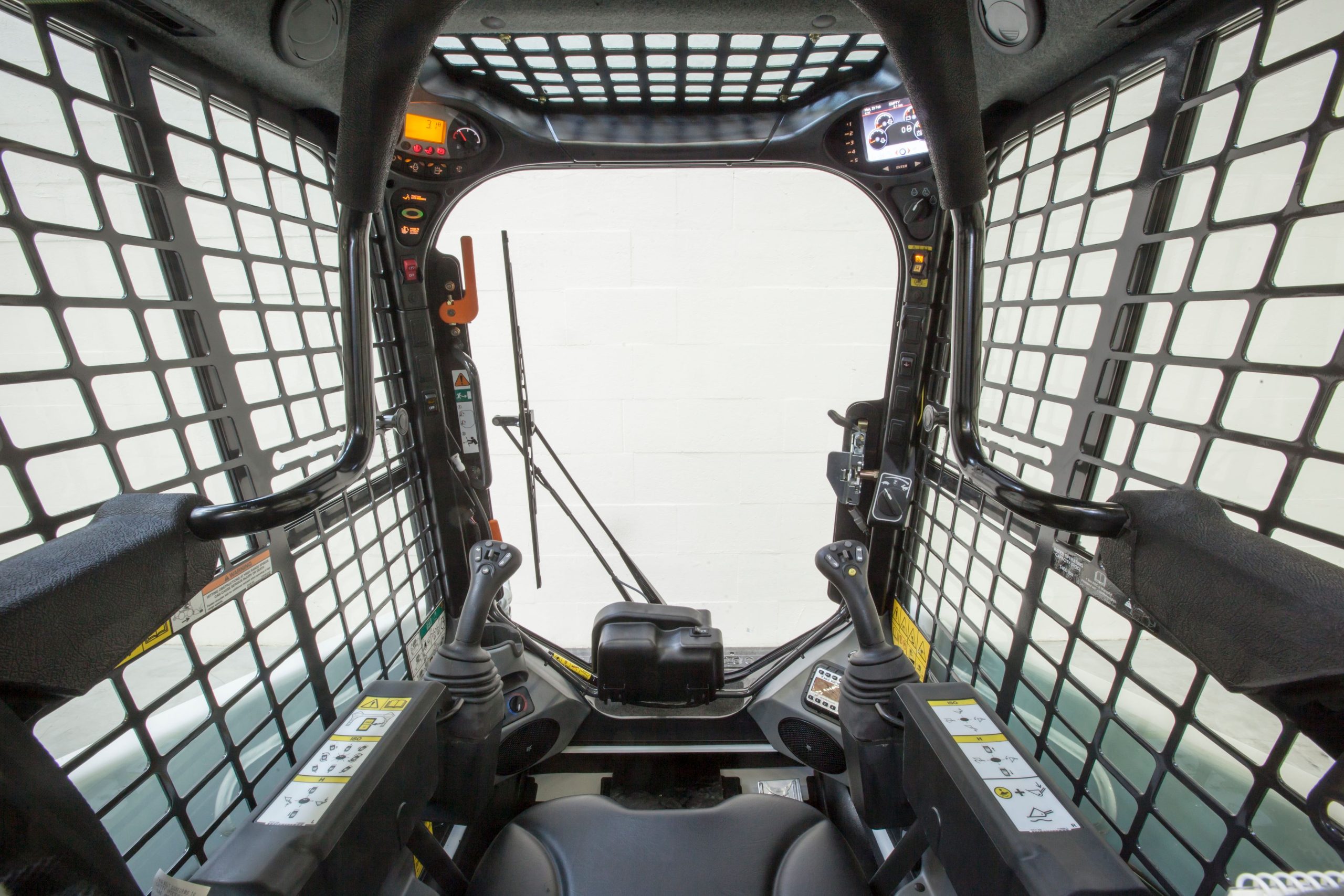

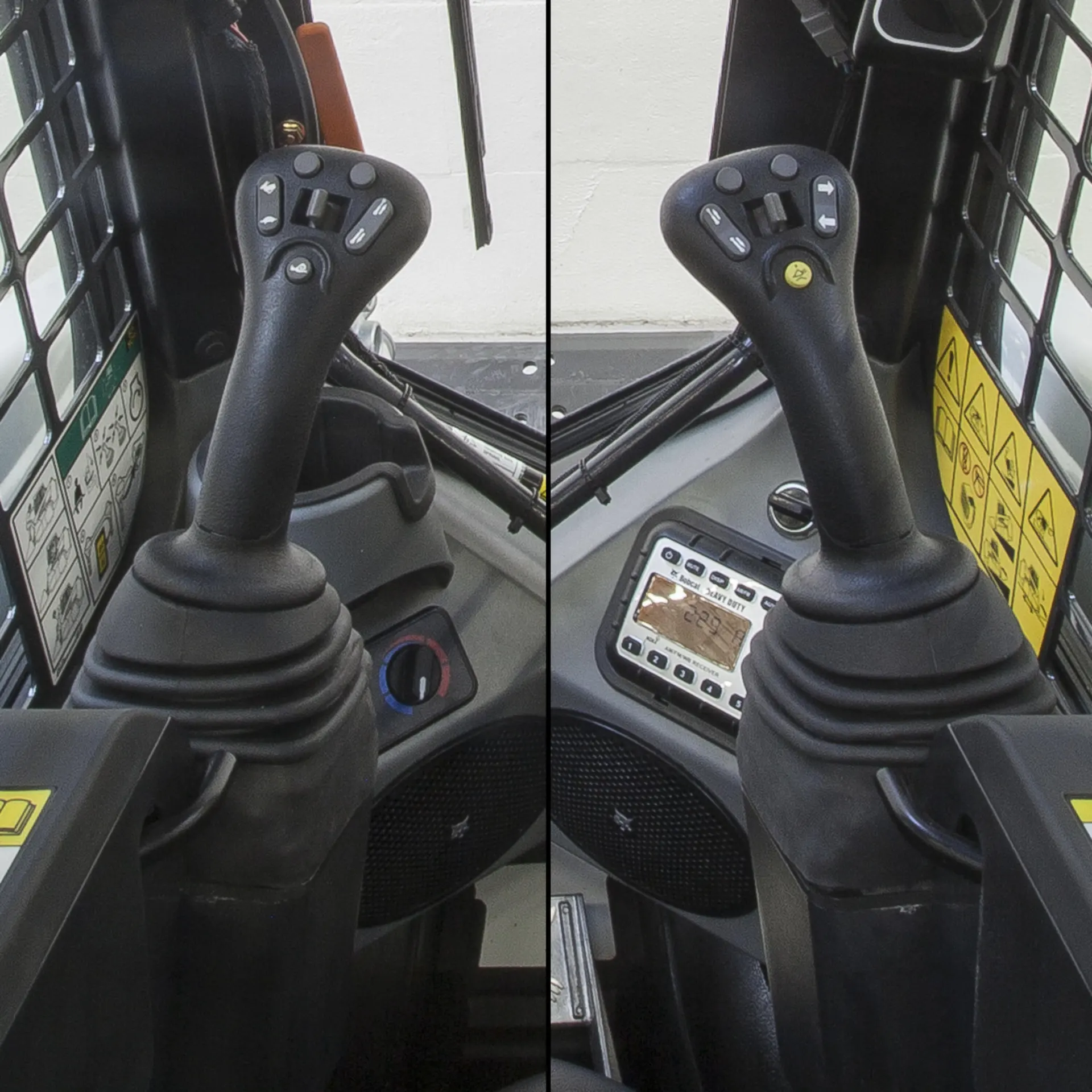

State-of-the-art joystick controls provide intuitive operation of the machine and attachments. This feature ensures precision and ease of use, enhancing operator efficiency and comfort.

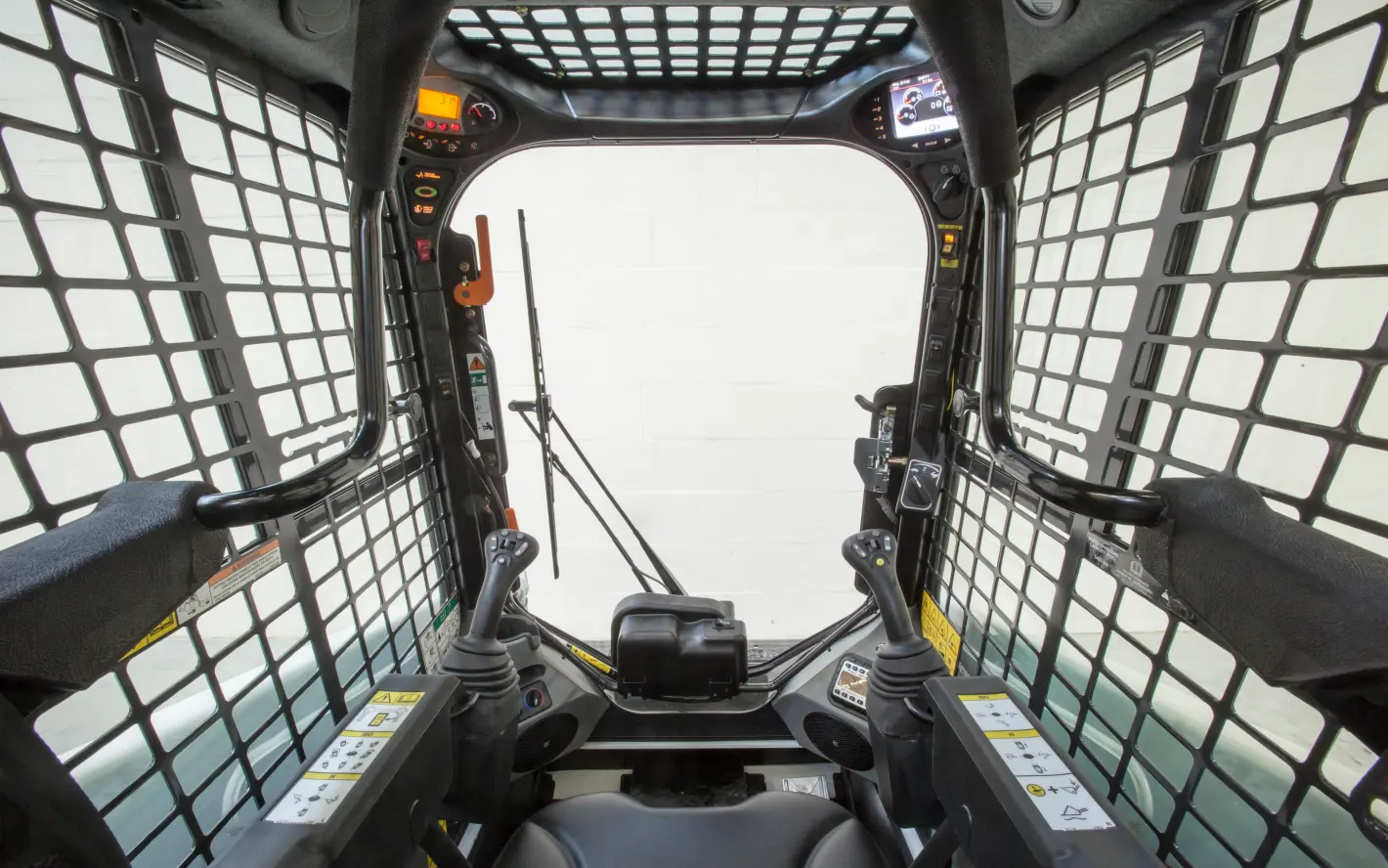

The optional pressurized cab keeps dust and dirt out, ensuring a clean and comfortable workspace. With air conditioning and heating options, operators can maintain focus in any weather.

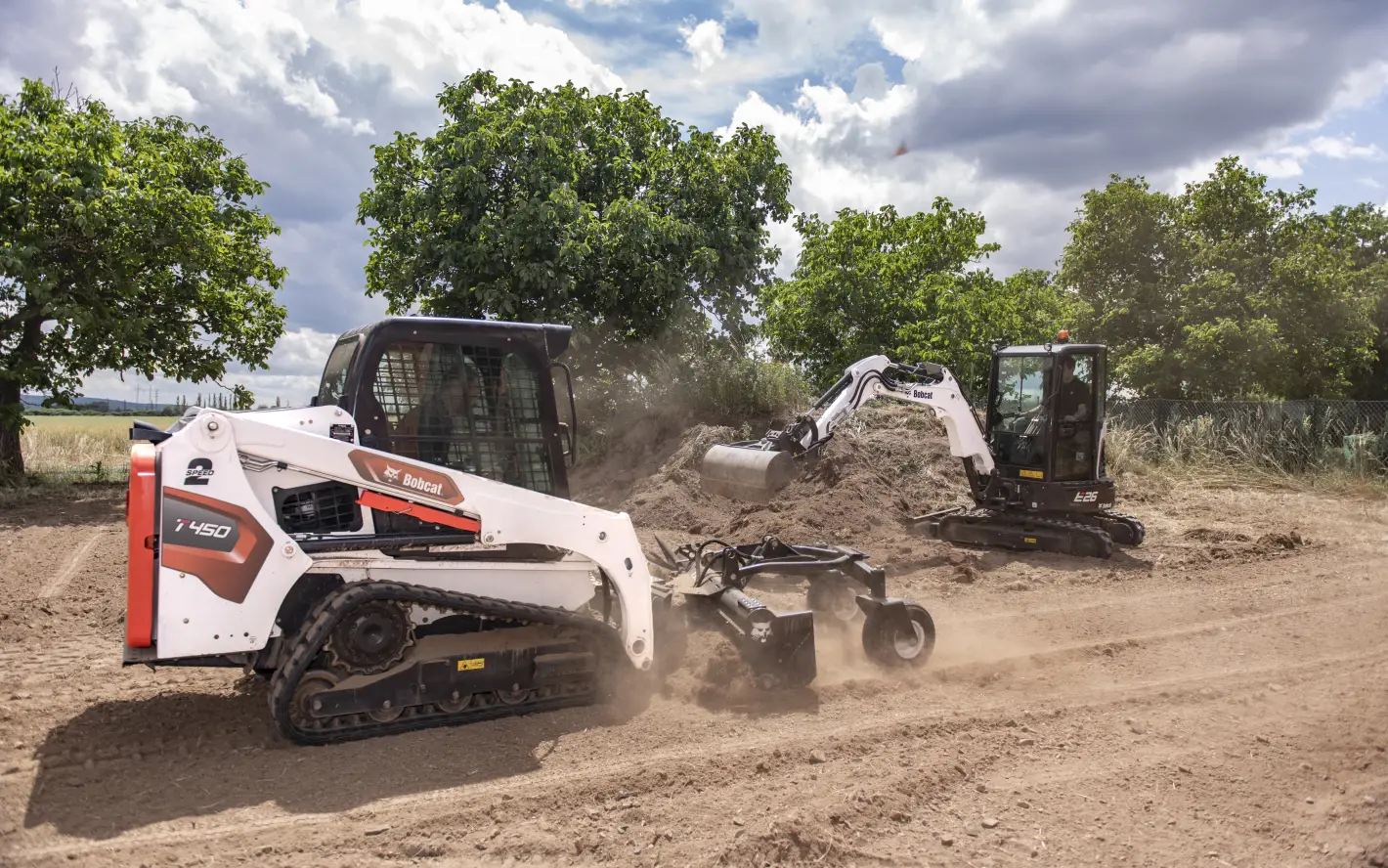

Auto Ride Control minimizes spillage and enhances comfort by providing a dampening effect on lift arms. This feature is especially beneficial when transporting materials over uneven surfaces.

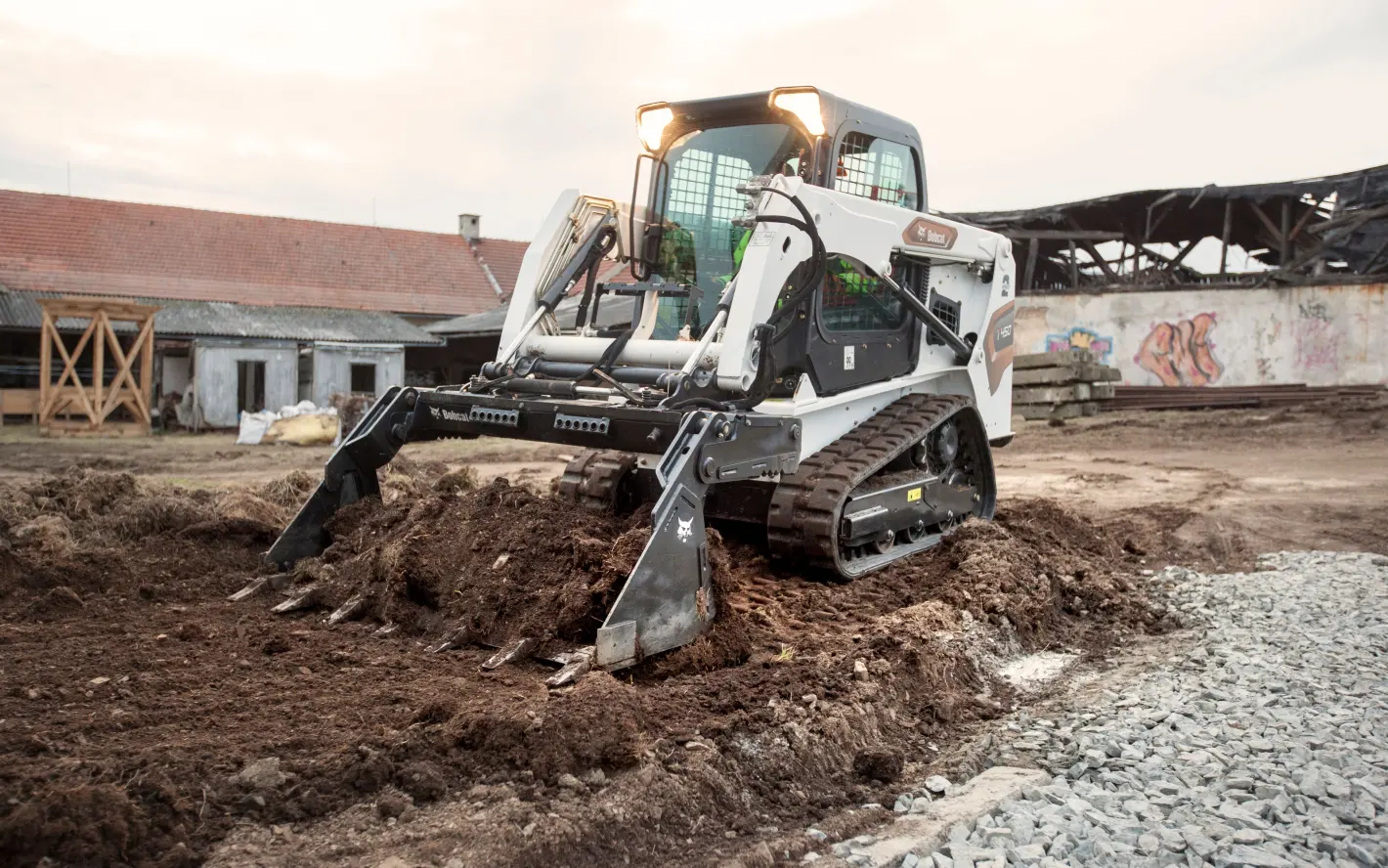

The M-Series loaders feature a robust undercarriage designed for longevity and reliability. This ensures maximum uptime and reduces maintenance needs, providing peace of mind for operators.

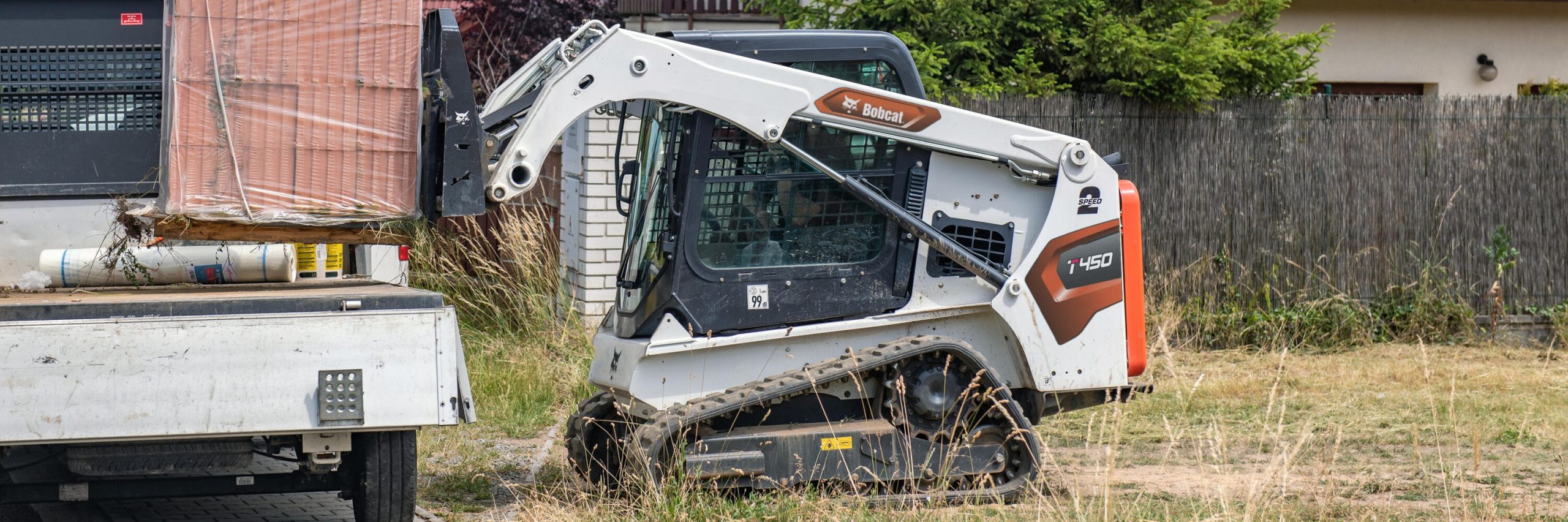

With the Bobcat T450
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Rated operating capacity
717 kgHorsepower
55 hpOperating weight
2961 kgTipping load (ISO 14397-1)
2049 kgRated operating capacity
717 kgGround pressure
40.0 kPaLift breakout force
1426 daNTilt breakout force
1781 daNPush force
2388 daNMake / Model

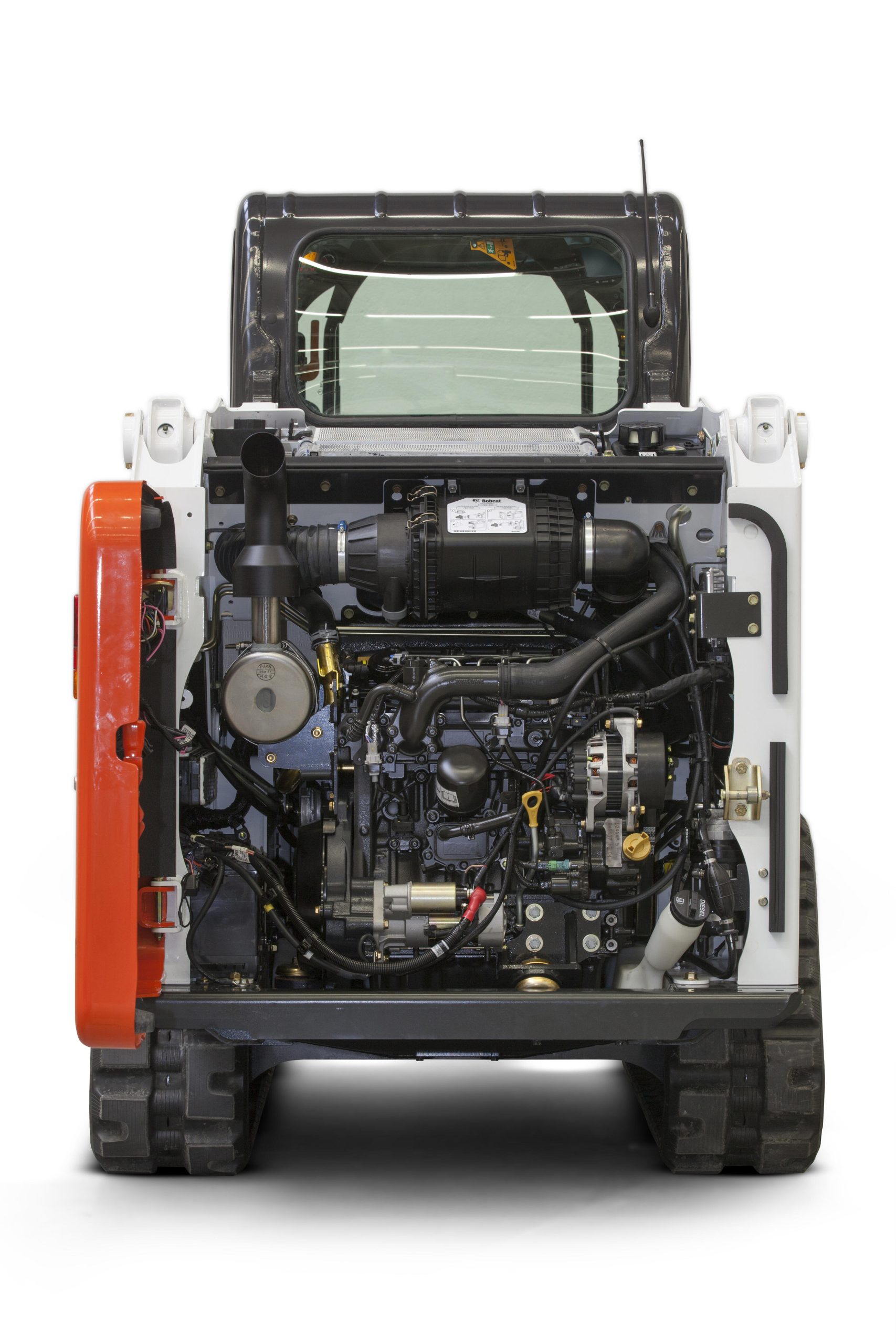

Bobcat 2.4 L, 97/68 ECEngine Fuel
DieselEngine Cooling
LiquidHorsepower
55 hpTorque at 1800 RPM (ISO 14396)
204.2 NmOperating weight
2961 kgShipping weight
2665 kgRaise lift arms
2.6 sLower lift arms
2.4 sBucket rollback
1.5 sBucket dump
2.0 sPump capacity
63.0 L/minPump capacity (with high flow option)
–System relief at quick couplers
22.4-23.1 L/minMax. travel speed (low range – standard)
10.0 km/hMax. travel speed (high range – optional)
14.4 km/hFuel tank
64.9 LHydraulic / Hydrostatic system
21.0 LOperator LpA (98/37 & 474-1)
85 dB(A)Noise level LWA (EU Directive 2000/14/EC)
101 dB(A)Whole body vibration (ISO 2631-1)
1.00 ms-2Hand-arm vibration (ISO 5349-1)
2.42 ms-2Related Equipment
