Product Overview
Unmatched Power and Versatility
The Bobcat R-Series Compact Track Loaders, including models T66, T76, and T86, deliver superior performance and adaptability for any job site. With enhanced stability and lifting capabilities, these machines are built for all conditions.
– Enhanced stability and lifting
– Versatile attachment compatibility
– Superior operator comfort
– Advanced cooling system

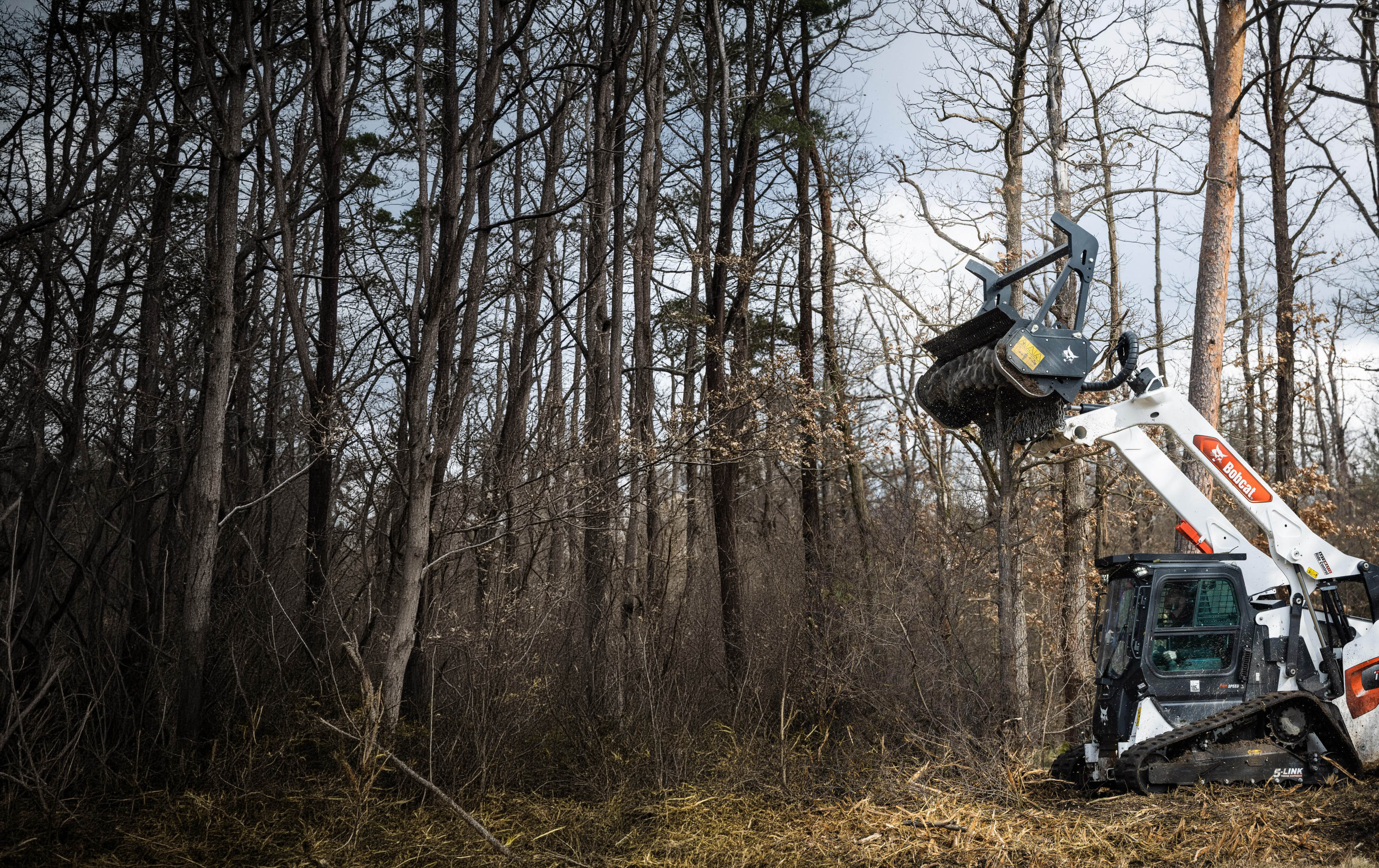

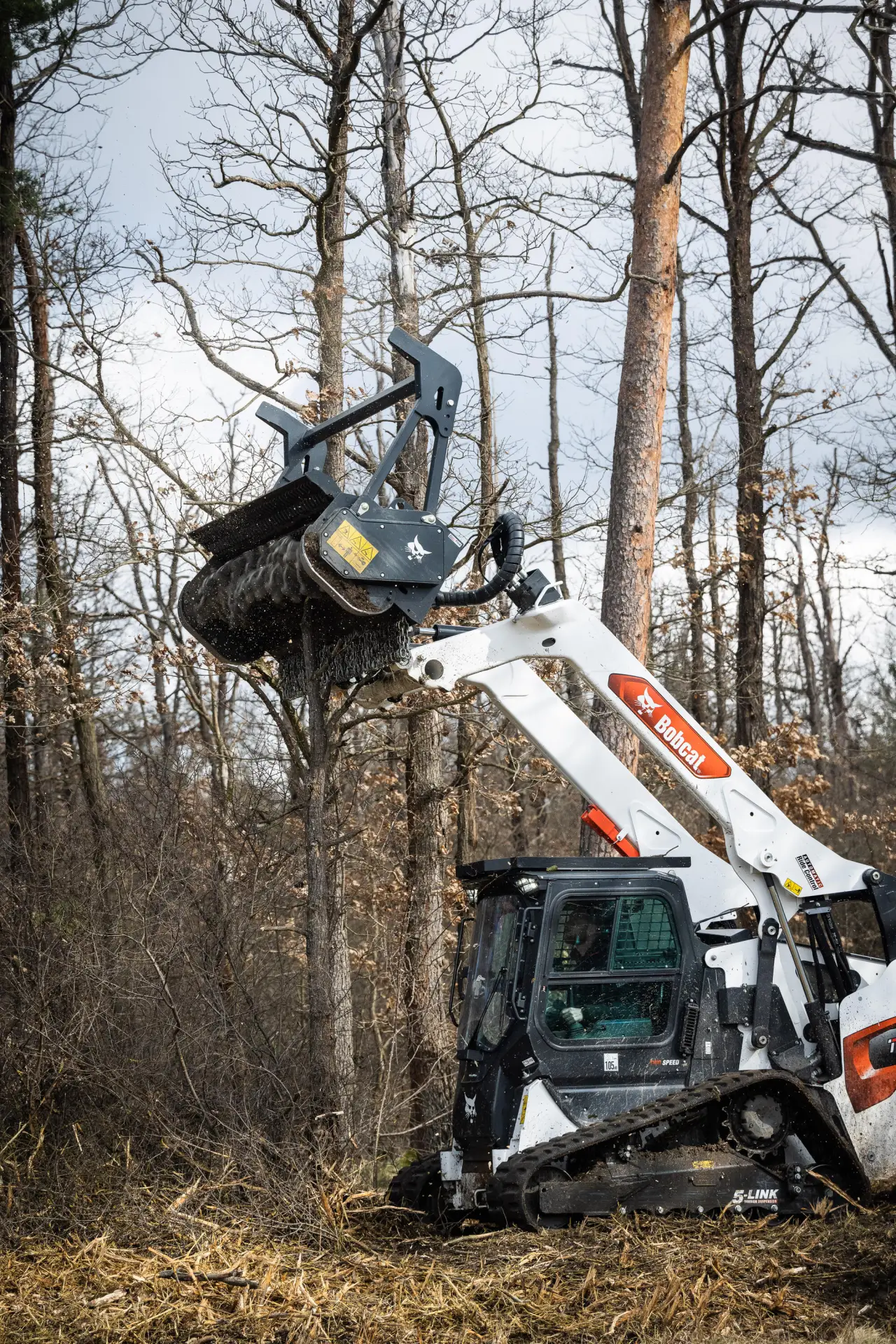

The R-Series loaders offer exceptional lift capacity with high pushing and breakout forces, ensuring excellent machine stability across various terrains.

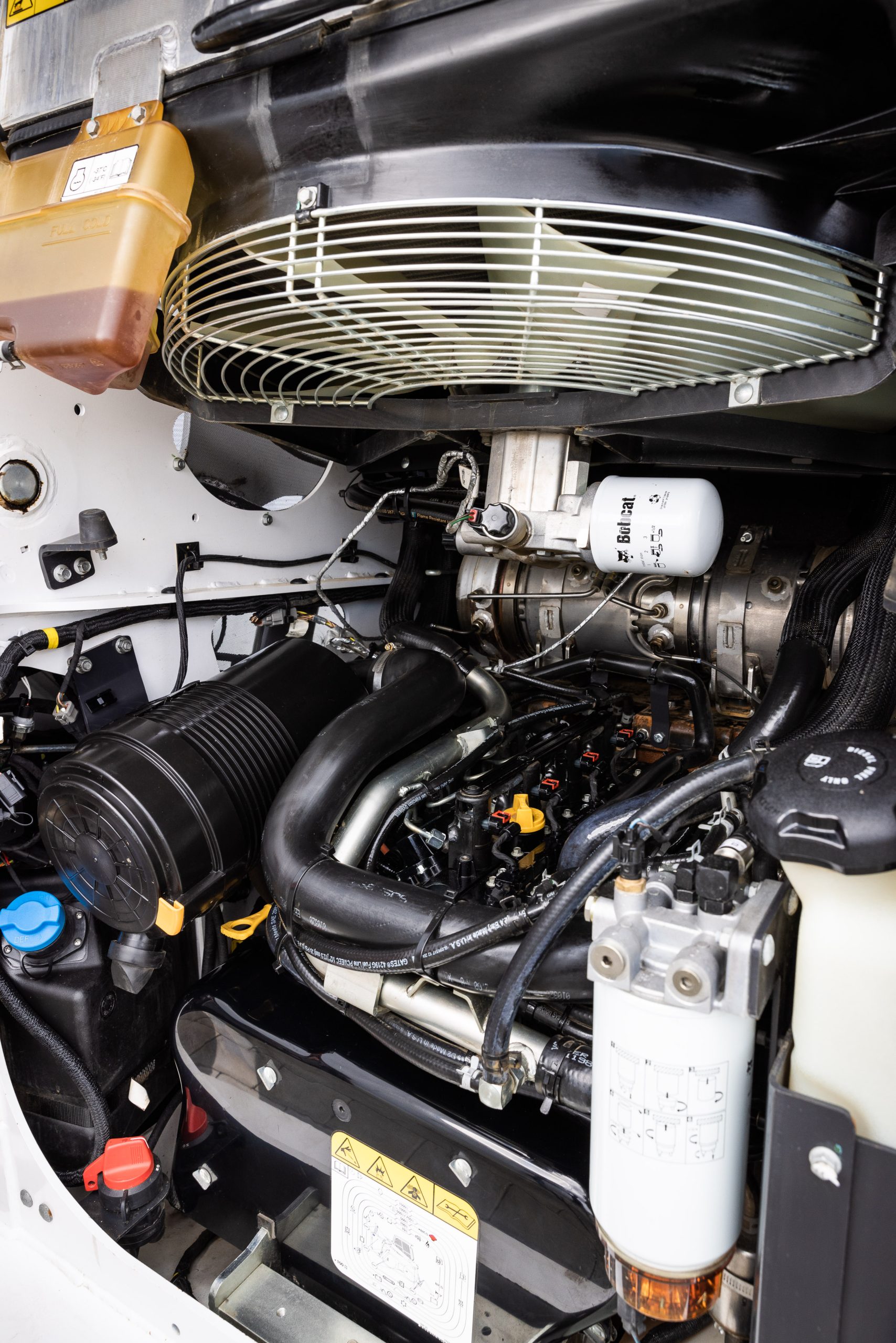

The redesigned cooling system features a larger fan with a reversible option, enhancing productivity in challenging conditions and ensuring optimal operation and uptime.

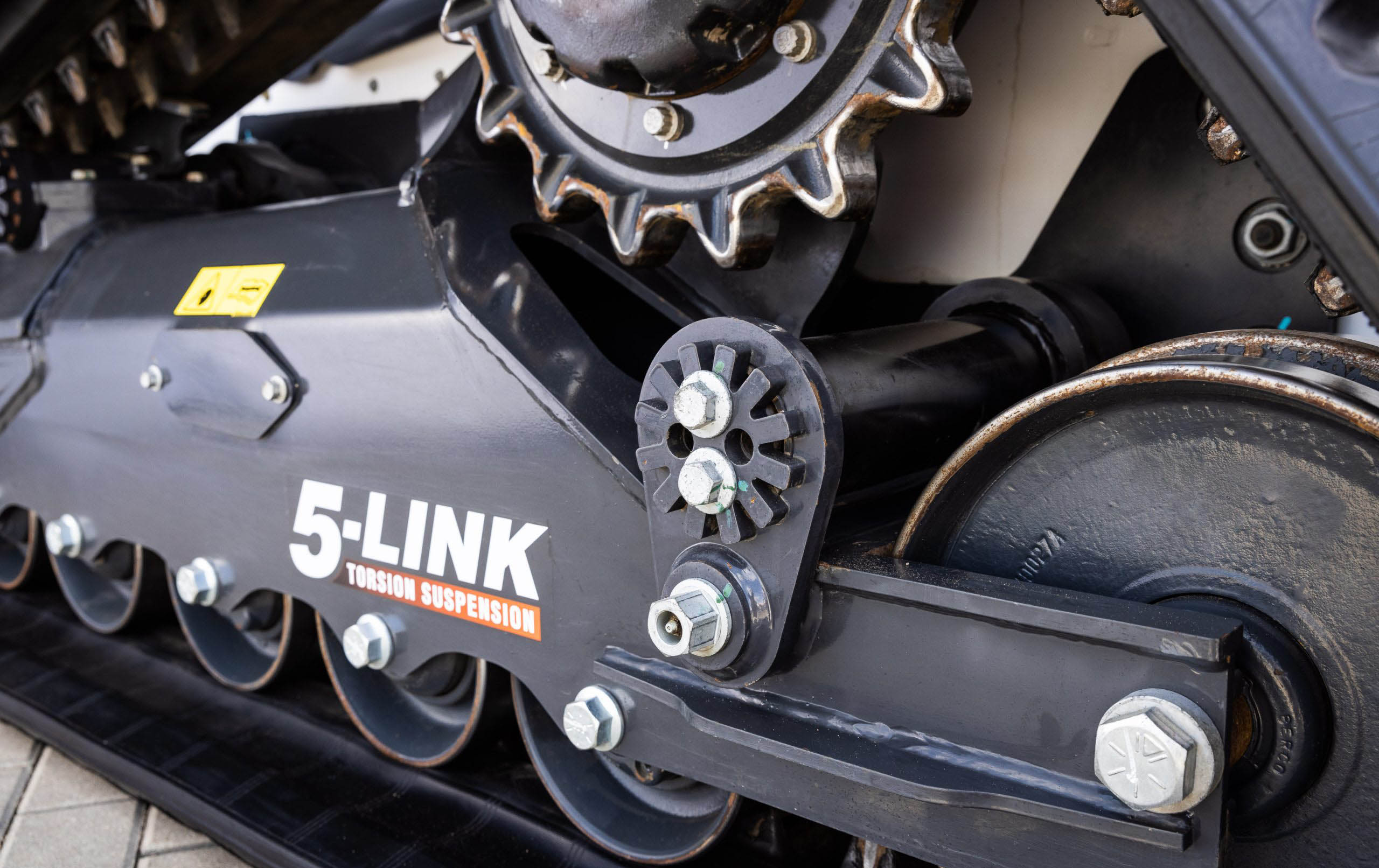

Equipped with a 5-link torsion suspension and soundproof cab, the R-Series provides a smooth ride and connectivity options, ensuring operator comfort and ease of use.

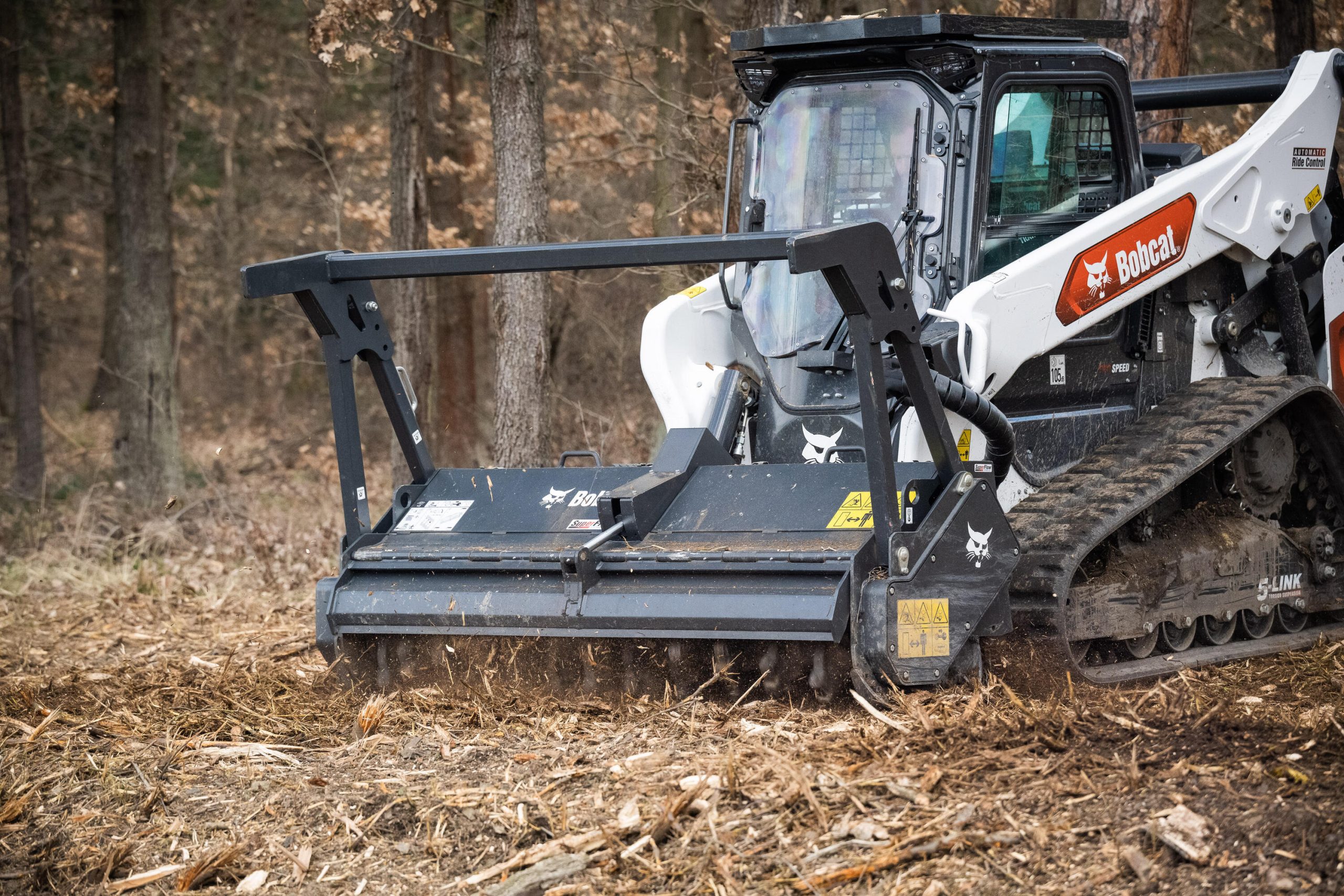

Thanks to the standardized Bob-Tach technology, the R-Series loaders are compatible with a wide range of attachments, enhancing versatility and efficiency on the job site.

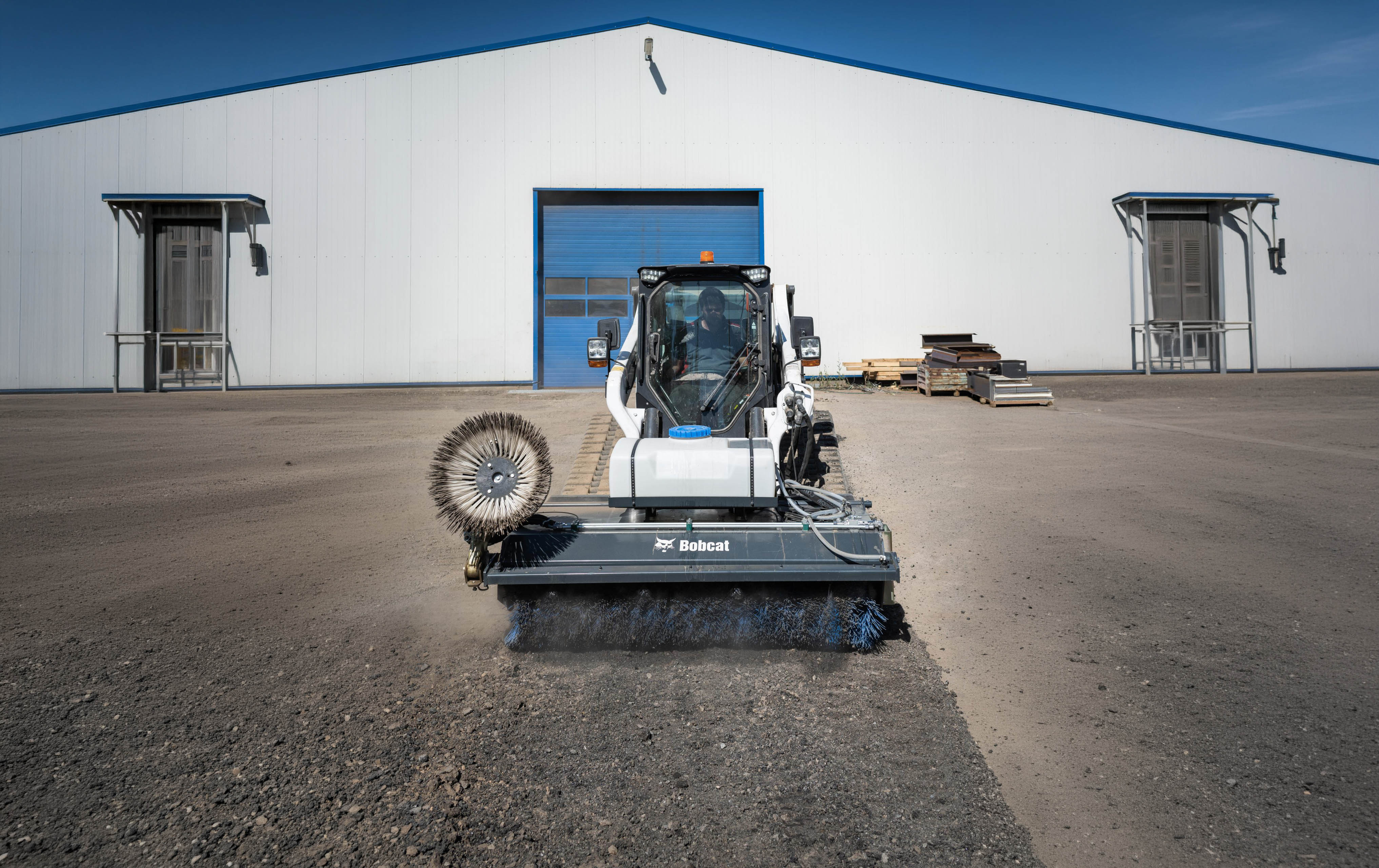

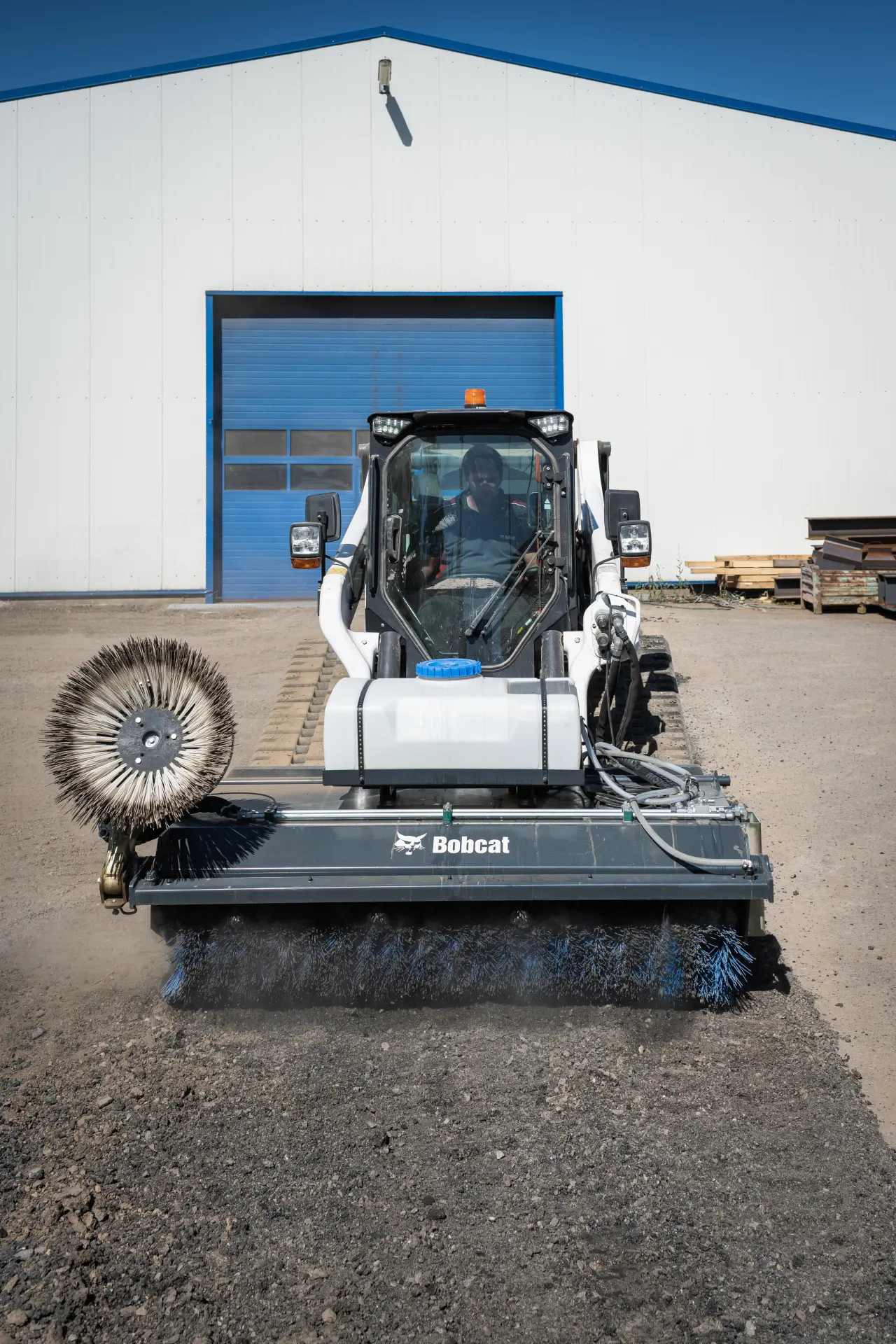

The new cab construction offers maximum visibility, further expandable with clear-view cab or rear-view camera options, ensuring a better view of the work area.
With the Bobcat T86
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Key Specs
Rated operating capacity
1780 kgHorsepower
105 hpOperating weight
5643 kgTipping load (ISO 14397-1)
5087 kgRated operating capacity
1780 kgPump capacity std flow (at pump RPM)
87.1 l/minPump capacity high flow (at pump RPM)
138.5 l/minPump capacity Super Flow (at pump RPM)
159 l/minSystem relief at quick couplers
23.8 - 24.5 MPaTravel speed (low)
8.7 km/hTravel speed (high)
16.7 km/hLift arm path
-Length with standard bucket
3900 mmWidth with standard bucket
2032 mmHeight with operator cab
2111 mmHeight to bucket hinge pin
3353 mmGround contact length
1683 mmMake / Model
D34 BSH SV, 97/68 EC Stage VEngine Fuel
DieselEngine Cooling
LiquidHorsepower
105 hpTorque at 1 800 RPM (ISO 14396)
409 NmNumber of cylinders
4Displacement
3409 cm3Fuel tank capacity
120 LOperating weight
5643 kgShipping weight
5228 kgOperator LpA (98/37 & 474-1)
78 dB(A)Noise level LWA (EU Directive 2000/14/EC)
103 dB(A)Whole body vibration (ISO 2631-1) high speed
0.36 ms-2Hand-arm vibration (ISO 5349-1) high speed
1.84 ms-2Lift breakout force
3544 daNTilt breakout force
2871 daNPush force
3544 daNRaise lift arms
3.9 sLower lift arms
2.6 sBucket rollback
-Bucket dump
2.3 sHeight with operator cab
2111Angle of departure
30°Ground clearance
236Ground contact length
1683Length without attachment
3059Length with standard bucket
3900Rollback at ground position
30°Dump height with standard bucket
2586Height to bucket hinge pin
3353Dump reach at maximum height
976Dump angle at maximum height
40°Rollback fully raised at maximum heigh
93°Width over standard bucket
2032Turning radius with standard bucket
2255Track, 450 mm tracks
1856Width over tracks, 450 mm tracks
