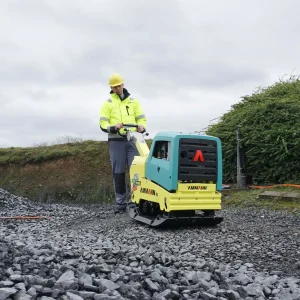

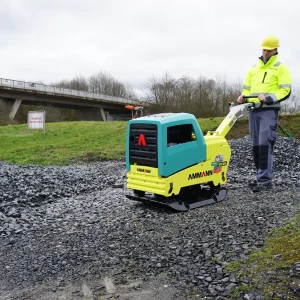

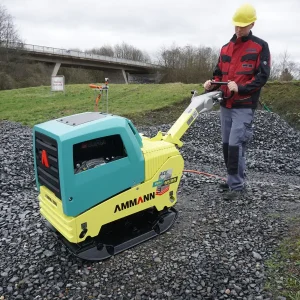

APH 65/85 Hydrostatic Vibrator Plate

The APH 65/85 is another powerful worker that delivers compaction force every step of the way. The plate is equipped with the market-leading Ammann three-shaft exciter system, which not only enables performance and climbing ability but also makes the machine more responsive and easier to handle for the operator with compaction force of 6.5 ton. The optional ACE compaction measuring system is a key tool many contractors utilise in efforts to achieve thorough, efficient compaction results.

Add to RFQ

REQUEST A QUOTE

"*" indicates required fields

We need to know about your location and topic of your inquiry to connect you to the right person.

Choose your Brand

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

CAPTCHA image

This helps us prevent spam, thank you.

By entering my name, telephone number, e-mail address and home address and by clicking the "Submit" button, I agree that the General Trading & Equipment CJSC may collect, process, use and electronically store said personal data in accordance with the existing privacy policy until the ongoing communication with me has stopped definitively. My consent is given freely and I can revoke it at any time with effect for the future. Personal data will not be passed on to third parties.



Specifications
Operating Weight 471 kg
Working Width 55/70/85 cm
Compaction Force and  Frequency 65 kN / 55 Hz
Engine, Diesel, Air Cooled Hatz Supra 1D81S
STANDARD EQUIPMENT
  • Standard vibration isolated guide handle

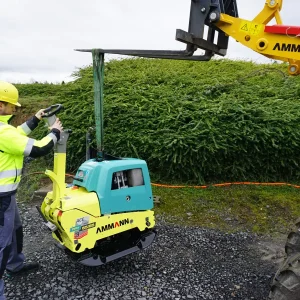

  • Sturdy protection frame with central lifting point
  • Powerful and reliable engine
  • Service friendly exciter unit with expanded life expectancy
  • Well protected, sturdy certrifugal clutch and V-Belt
OPTIONAL EQUIPMENT
  • Permanently installed transport wheels
  • Vulcolan mat for application on paving stones
  • Corrosion free water tank and sprinkler system for application on bituminous surfaces
  • Ammann Low-Vibration Handle for operator comfort and limited vibration on machine operator
  • 3 year extended Warranty Program
