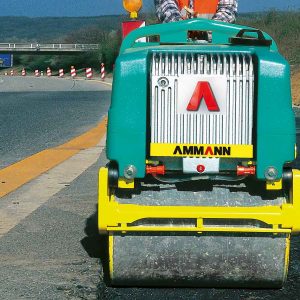

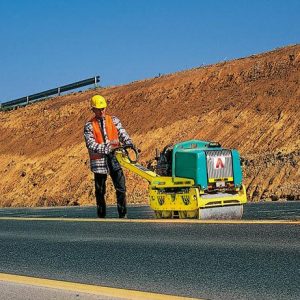

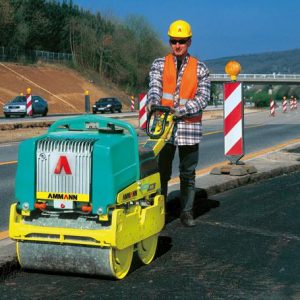

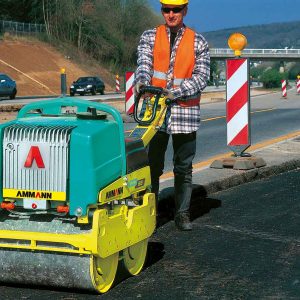

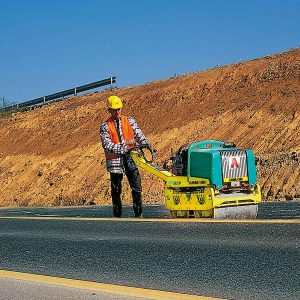

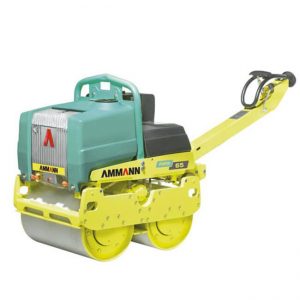

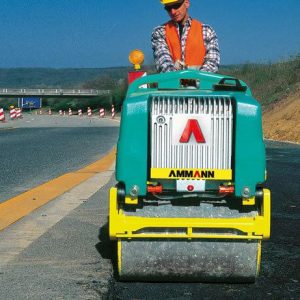

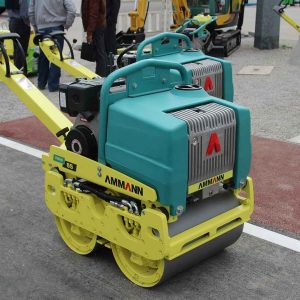

ARW 65 Walk-behind Roller

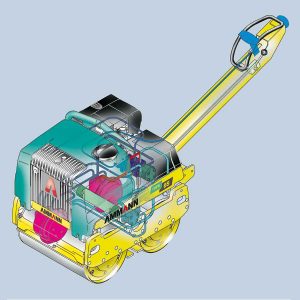

Hydrostatic drive and vibration system
Hydrostatic adjustable eccentric weights that are productive in soil and asphalt applications
Hydraulic pump for hydrostatic drive and steering; no V belt

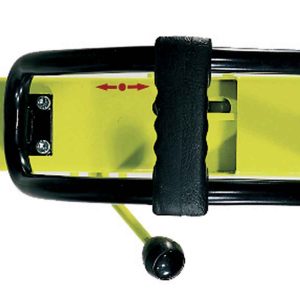

Ergonomic dead man’s handle for operator safety
Large 60-litre water tank for compaction work on bituminous material
Easy access to all service points

The ARW 65 with a Hatz diesel engine provides 2-in-1 capabilities that help you limit your machine investment.

A high-amplitude setting provides a walk-behind roller that performs like it was custom built for work on soils and aggregates. With the flip of a switch your operator can adjust to a low-amplitude setting and have a roller that is a perfect fit in asphalt and bituminous materials.

The ARW 65 features scrapers and a 60-litre water tank with sprinkler system to ensure the machine is ready to handle bituminous surfaces when called upon.

The engine is available with a crank or electric start.

OVERVIEW

Hydrostatic drive and vibration system
Hydrostatic adjustable eccentric weights that are productive in soil and asphalt applications
Hydraulic pump for hydrostatic drive and steering; no V belt
Ergonomic dead man’s handle for operator safety
Large 60-litre water tank for compaction work on bituminous material
Easy access to all service points

PRODUCT FAMILY OVERVIEW

arw_65_walk_behind_roller_cad_drawing_2880x1620px_bw

	ARW 65 (Hatz)
Weights & Dimensions	Metric	US
Operation weight CECE	719 kg	1585 lb
Net weight standard Machine	687 kg	1514 lb
A = Machine length	2288 mm	90,1 in
B = Drum axle width	500 mm	19,7 in
C = Drum diameter	400 mm	15,7 in
D = Machine height	1110 mm	43,7 in
E = Transport height	1835 mm	72,2 in
F = Machine width	720 mm	28,3 in
G = Drum width	650 mm	25,6 in
Engine
Engine	Hatz 1D42S	Hatz 1D42S
Fuel	Diesel	Diesel
Engine Output	8,3 HP / 6,1 kW	8,3 HP / 6,1 kW
at RPM	2800	2800
Fuel consumption	1,7 l/h	0,4 gal/h
Compaction Forces
Max. Vibration frequency	60 Hz	3300 vpm
Max. Centrifugal force	11/21 kN	2.9 / 4 lbf
Linear pressure	5 kg/cm	28 lb/in
Max. compaction depth (soil)	20/15 cm	7.9/5.9 in
Max. compaction depth (sand)	30/25 cm	11.8/9.8 in
Miscellaneous
Speed (forward)	4 km/h	2.5 mph
Speed (backward)	2.5 km/h	1.6 mph
Gradeability w./w.o. vibration	25 % / 45 %	25 % / 45 %
Fuel capacity	5 l	1.1 gal
Hydraulic oil capacity	20 l	4.4 gal
Water tank capacity	60 l	13 gal

VIEW PDF

STANDARD EQUIPMENT

Hydrostatic adjustable eccentric weights for 2 different centrifugal forces
Ergonimic and low vibration handle
Dead man’s handle for operator safety
Inegrated hydraulic parking brake
60 l water tank with sprinkler system
Scrapers on front and back drum

OPTIONAL EQUIPMENT

Operating hour meter
Protection frame in front for ARW 65
Electric starter
