  • Soil and asphalt applications
  • Lateral sliding seat
  • High-torque, water-cooled Yanmar diesel engine
  • 2 working speeds
  • 2 frequencies with 2 centrifugal forces
  • Single or double vibration with double traction
  • Optimal drum diameter
  • Balanced weight front and rear
  • Multiple water filters
  • 2 scrapers per drum
Add to RFQ

REQUEST A QUOTE

"*" indicates required fields

We need to know about your location and topic of your inquiry to connect you to the right person.

Choose your Brand

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

Start Typing, then choose. (You can choose multiple products.)

CAPTCHA image

This helps us prevent spam, thank you.

By entering my name, telephone number, e-mail address and home address and by clicking the "Submit" button, I agree that the General Trading & Equipment CJSC may collect, process, use and electronically store said personal data in accordance with the existing privacy policy until the ongoing communication with me has stopped definitively. My consent is given freely and I can revoke it at any time with effect for the future. Personal data will not be passed on to third parties.

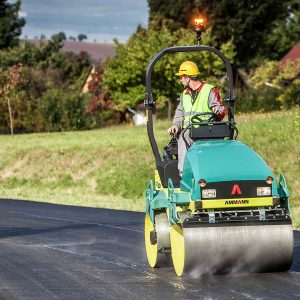

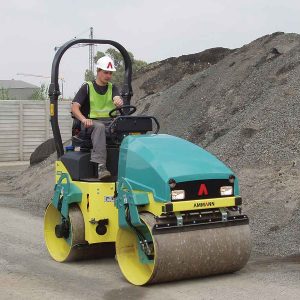

The Ammann ARX 26 Tandem Roller delivers 47 kN of compaction force yet still works flush to curbs and other obstructions.

The roller covers some ground with its 1200 mm drum width. The machine is designed to provide the operator with exceptional drum views, one factor in helping the machine work close to potential obstructions.

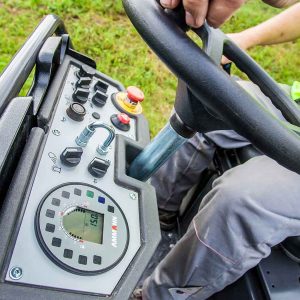

An electric drive-lever makes for smooth starting and stopping and is among the reasons the rollers is popular with operators. Other operator benefits include a rubber-mounted platform that limits vibration and an intuitive instrument panel.

The ARX 26 also includes high quality, long-lasting components that reduce the cost of ownership over the lifetime of the machine. It is reliable, economical, safe and fuel efficient.



OVERVIEW

  • Soil and asphalt applications
  • Lateral sliding seat
  • High-torque, water-cooled Yanmar diesel engine
  • 2 working speeds
  • 2 frequencies with 2 centrifugal forces
  • Single or double vibration with double traction
  • Optimal drum diameter
  • Balanced weight front and rear
  • Multiple water filters
  • 2 scrapers per drum
  • Easy-to-operate, ergonomic instrument panel
  • Rubber-mounted operator’s platform
  • Tight turning radius
  • Unobstructed view of drums
  • Compact dimensions for transport
  • Smooth starting and reversing by electric drive-lever
  • Bearings and central articulated joint lubricated for the machine’s life
  • Easy access to maintenance points and water filters and nozzles
  • Outside drain plugs for quick fluid changes
  • Foldable ROPS
  • Vandal protection of multiple components

PRODUCT FAMILY OVERVIEW

arx_26_light_tandem_vibratory_roller_cad_drawing_2880x1620px_bw

Dimensions Metric
A = Machine length 2330 mm
B = Wheelbase 1630 mm
C = Machine height 2550 mm
D = Machine height (folded ROPS) 1930 mm
E = Drum width 1200 mm
F = Machine width 1247 mm
G = Machine length 2369 mm
H = Ground clearance 275 mm
I = Drum diameter 700 mm
J = Drum shell thickness 13 mm
K = Machine width (total) 1334 mm
L = Machine length (folded ROPS) 2506 mm
Weight
Operating weight CECE 2460 kg
Operating weight max. 2650 kg
Static linear load (full-flush) 10,3 kg/cm
Wheel load – kg
French classification PV3
Drums (Wheels)
Width 1200 mm
Offset 40 mm
Rolling width max. 1240 mm
Diameter mm 700 mm
Thickness mm 13 mm
Number of wheels –
Tire size –
Tire-axle width – mm
Engines
Engine type YANMAR 3TNV88 Diesel/Water
Emmission class EuroMot3A / EPA Inter 4
Power output ISO 3046 22,5/30,6 kW / HP
Cylinder/ltr. 3 cyl / 1642 No./ccm
1. /2. working speed 2,100 / 2,400 rpm
Travel speed km/h 0 – 10 km/h
Gradeability with / without vibr. 30 / 40 %
Electric System
Batterie / Capacity 12 / 77 V / Ah
Steering
Turning radius inside 2250 mm
Steering / Oscillating angle 32/8 +/-°
Vibration
Amplitude 0,42 mm
Frequency at 2100/2400 rpm 58/66 Hz
Centrifugal force – max. 47 kN
Capacities
Water tank 200 l
Anti-adhesive – l
Hydraulic tank 16 l
Diesel fuel tank 40 l



VIEW PDF

STANDARD EQUIPMENT
  • Front and rear vibration and drive
  • Control system with emergency stop
  • Pressurised pulse interval sprinkler system
  • Ammann Vibration Control
  • Lateral sliding seat
  • 2 working frequencies
  • Hydraulic test port
OPTIONAL EQUIPMENT
  • CE-Kit with folding ROPS and working lights
  • Road lighting
  • Canopy
  • Asphalt thermometer
  • Reverse alarm
  • Battery disconnection switch
  • Central lifting hook
  • ATC – Ammann Traction Control
  • Arm rests
  • Second drive-lever, left
  • Edge-cutter incl. multi-function lever
  • Bio-degradable hydraulic oil
  • Drums in line
  • Customer colour
  • Central lifting hook
  • FOPS canopy
  • ACEforce
  • Additional working lights (ROPS mounted)
  • Warning beacon
  • Foldable scrapers
