Concentric Spray Head

Concentric_Spray_Head_Main

Concentric_Spray_Gun1

Concentric_Spray_Head_Main

Concentric_Spray_Gun1

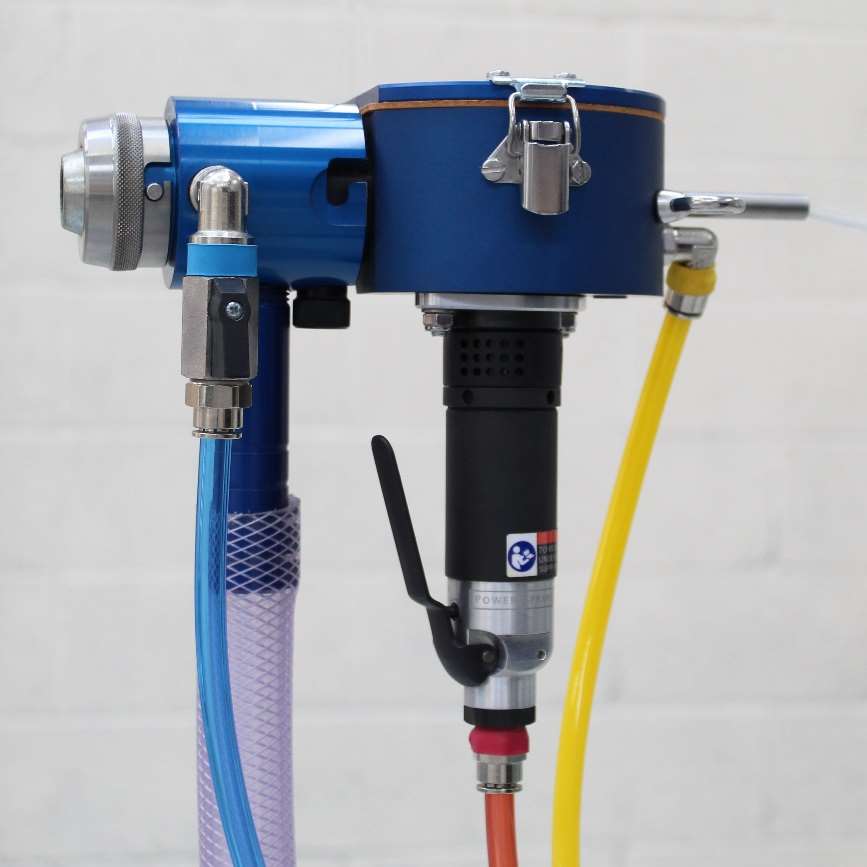

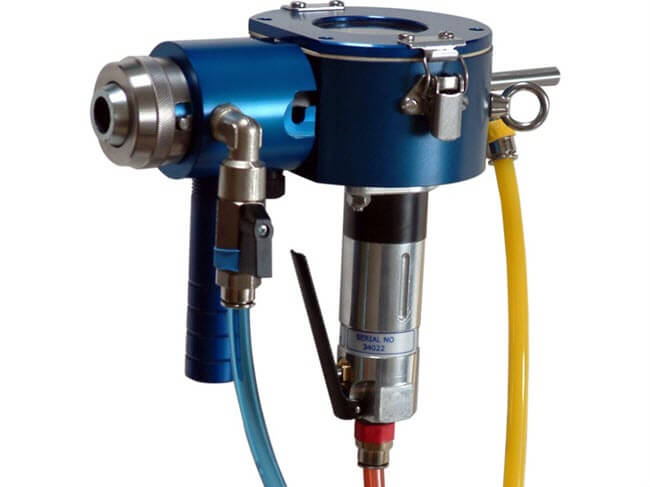

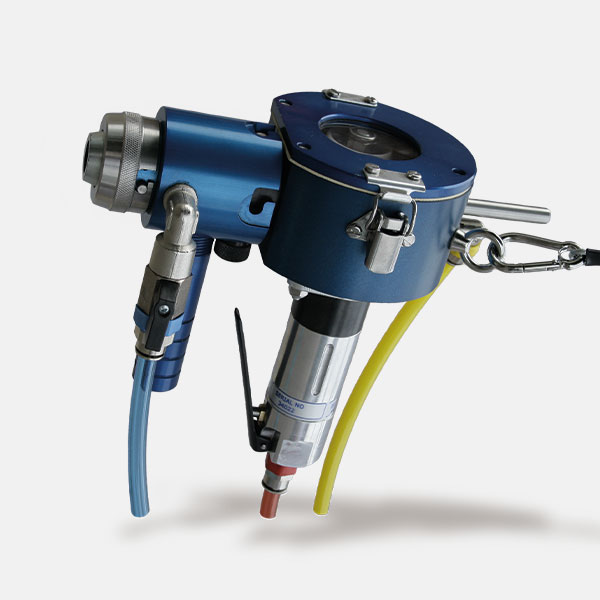

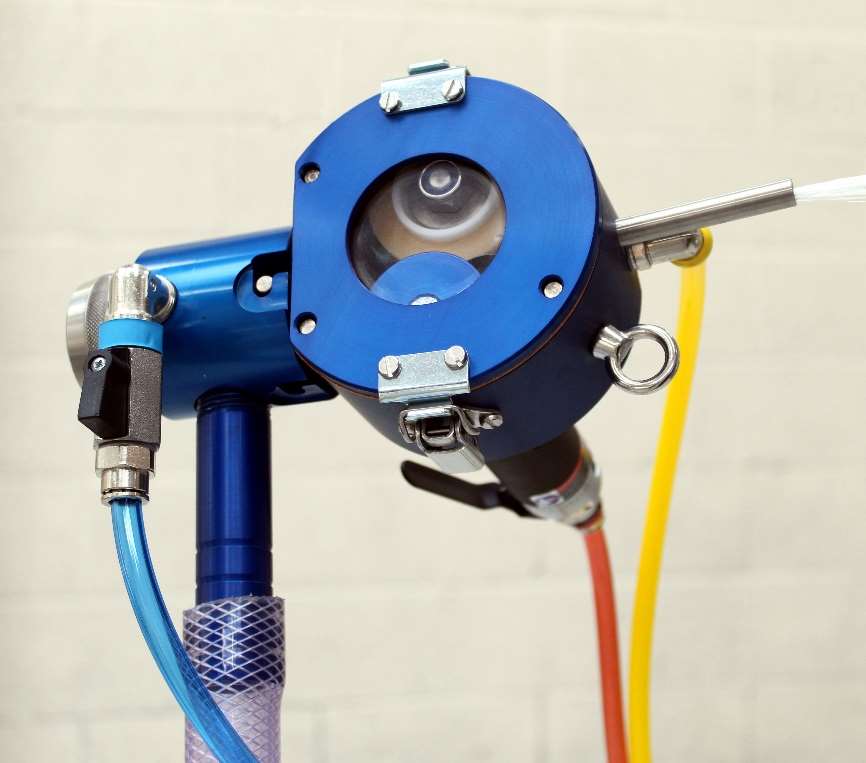

Acknowledged by producers worldwide as the preferred spray head for the production of traditional Hand Spray GRC / GFRC. The Concentric Spray Head generates a tight spray pattern and benefits from quick release fittings for fast, easy cleaning and maintenance.

Efficient spray application of GRC / GFRC

Acknowledged by producers worldwide as the preferred spray head for the production of traditional Hand Spray GRC / GFRC. The Concentric Spray Head generates a tight spray pattern and benefits from quick release fittings for fast, easy cleaning and maintenance.

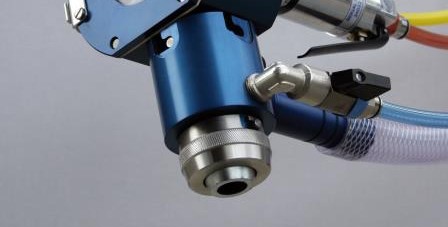

Slurry and fibre are projected from the same nozzle
Glass fiber roving cut to length within the rear chopper
Compressed air propels the chopped fibres
Simultaneously, slurry is conveyed to the nozzle from the pump
The two materials are projected as a composite
Water flush facility is fitted as standard
Operates in conjunction with all Power-Sprays’ GRC / GFRC spray machines


Machine Valuables	Values
Weight	2.98Kg
O/A Dimensions	21 x 29 x 29.2cm (HT)
Air Consumption	1500 Liters/Minute (50cfm) approx. at minimum pressure of 7bar (100psi)
Output (Variable)	Fibre = 500-1000gminute
	Typical 600g
	Slurry = 10-20Kg/minute
	Typical 12Kg
Fibre Length	41mm, 31mm,, 25mm, 12mm and 6mm available (31mm Cutter Block is fitted as Standard
