LNX Hoist

LNX Hoist Main

LNX Hoist 7

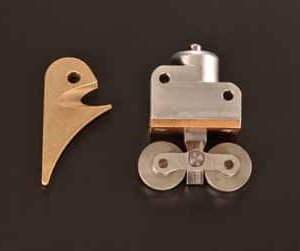

LNX Hoist 9

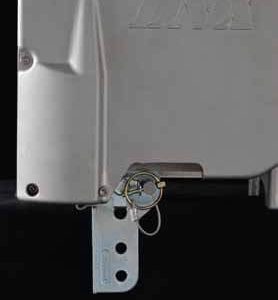

LNX Hoist 5

LNX Hoist 1

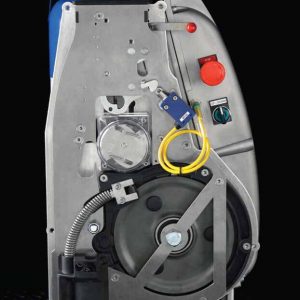

LNX Hoist 2

LNX Hoist Main

LNX Hoist 7

LNX Hoist 9

LNX Hoist 5

LNX Hoist 1

LNX Hoist 2

Man-rated hoists offer durable design and ease of maintenance provide better value to fleet owners.

Durable design and ease of maintenance provide better value to fleet owners.

Removable power pack
Four quick connect plugs to remove power pack
Electrical components are easy to access
Capable of adding:

Overload protection
Hour meter
Limit switches
Low voltage indicator

Cast Aluminum outer shell provides strength and durability
Sealed aluminum shell keeps moisture and debris out of electrical and mechanical housings Ergonomic design
Handles and grips for ease of transport Easy to operate
Lightweight
Built to withstand the toughest conditions Easy to clean and maintain
Annual maintenance takes less than one hour
Fewer wear parts makes total cost of ownership lower
Non-Powered control descent

DOWLOAD PRODUCT OVERVIEW


LNX Specifications
Lifting Capacity	1000, 1250, 1500 lbs
Voltage	185 to 220 Volts
Durable Outer Shell	Cast Aluminum
Phase	Single and Three
Hertz	50 and 60
Dual Rope Capacity	Optional
Internal Secondary Brake	Yes
Motor Type	1.9 HP
Worm Gear Box	Yes
Amperage	9
Weight	105 lb.
Upper Limit Switch	Optional
Ultimate Upper Limit Switch	Optional
Emergency Stop	Yes
Rope Easily Accessed	Yes
Non-Powered Control Descent	Yes
Manual Ascent Handle Attached	Yes
Overspeed Indicator	Yes
Self Reeving	Yes
Stow Away Stirrup Strap	Yes
Overload Protection	Optional
Solid Sheave Traction Mechanism	Yes
Central Control Box Capable	Yes
Labor Required for Maintenance	< 1 Hour
Wire Rope	5/16" or 8mm
Low Voltage Indicator	Optional
