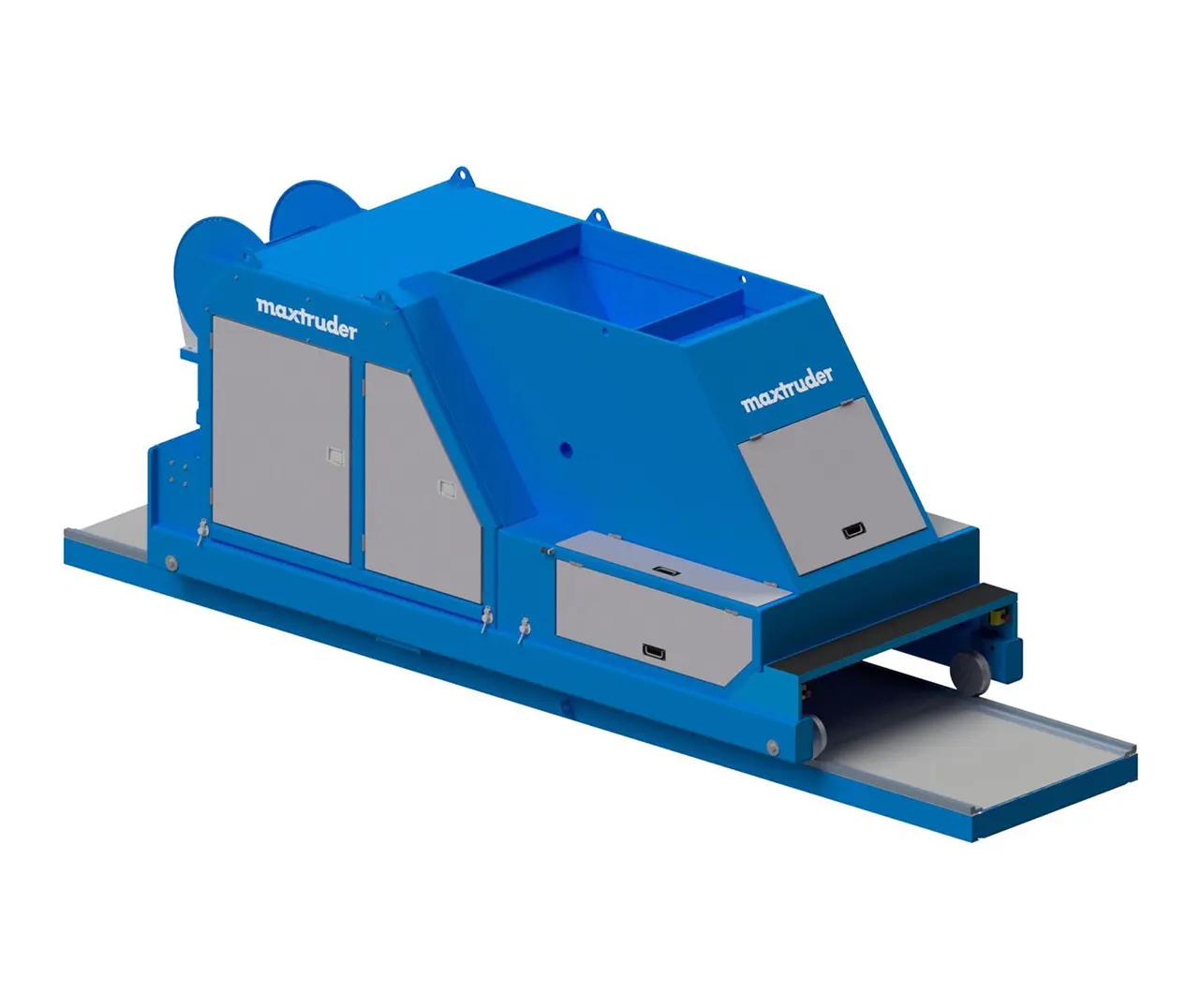

Maxtruder
Intelligent control and reliable mechanics
Strongest hollow core slabs and wall elements
Innovative concrete extruder technology paired with intelligent control and reliable mechanics. For the production of prestressed concrete hollow core slabs for floors and walls. The modular design of the maxtruder makes it more flexible than ever. For panel widths from 30 to 240 cm and panel thicknesses from 10 to 40 cm. The triple compaction system of our hollow core extruder achieves the highest concrete compaction on the market, resulting in the highest load-bearing capacity and the lowest overbending of the panels on the market.
Triple Compaction System
Rotating compaction screws press the concrete into the desired shape, supported by the dual vibration system which combines normal and high frequency. The particularly wear-resistant materials and the legendary reliable mechanics enable production speeds of up to 2.4 m/min depending on the product type.
Highly compacted concrete – Minimum cement consumption – Maximum productivity
4 modules to combine
< 6h Shortest Curing Time

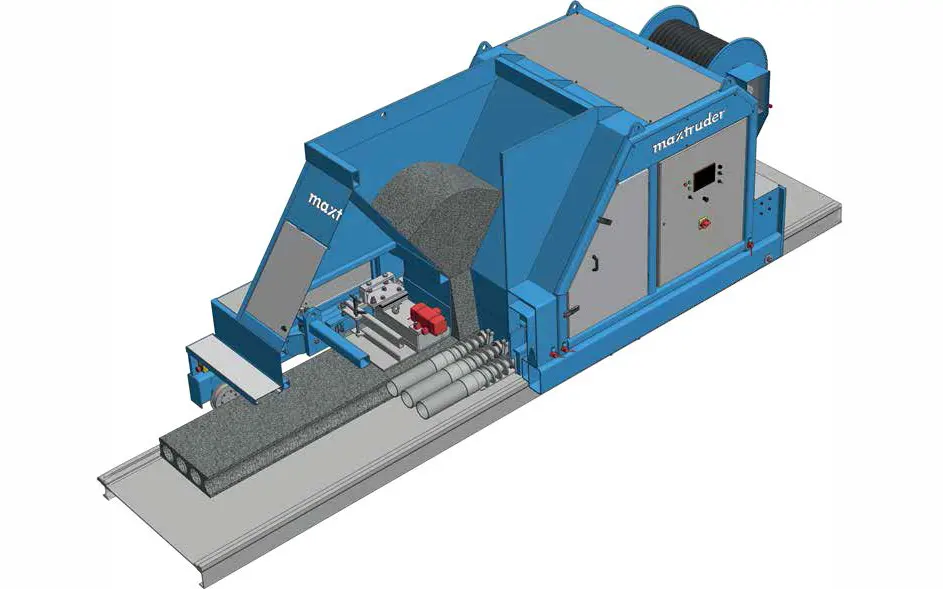

Modular design
The maxtruder is composed of four modules: the chassis with drive unit, the power unit with the newly developed OS-X1 control system, the interchangeable compaction insert and the universal concrete silo.
Maximum flexibility – Shortest downtimes – Minimum space requirement

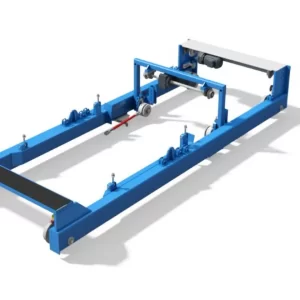

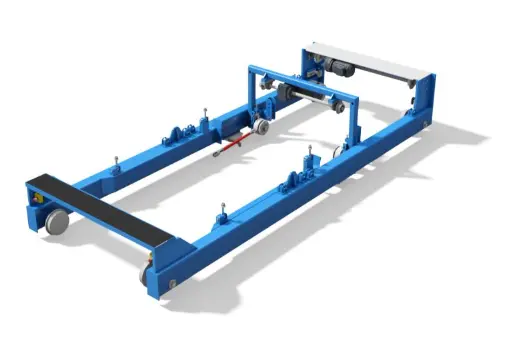

1. MAXTRUDER – CHASSIS MODULE
Stiff chassis with powerful travel drive and tool-free installation of concrete silo and power unit

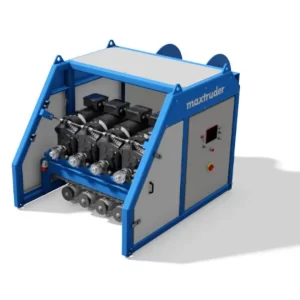

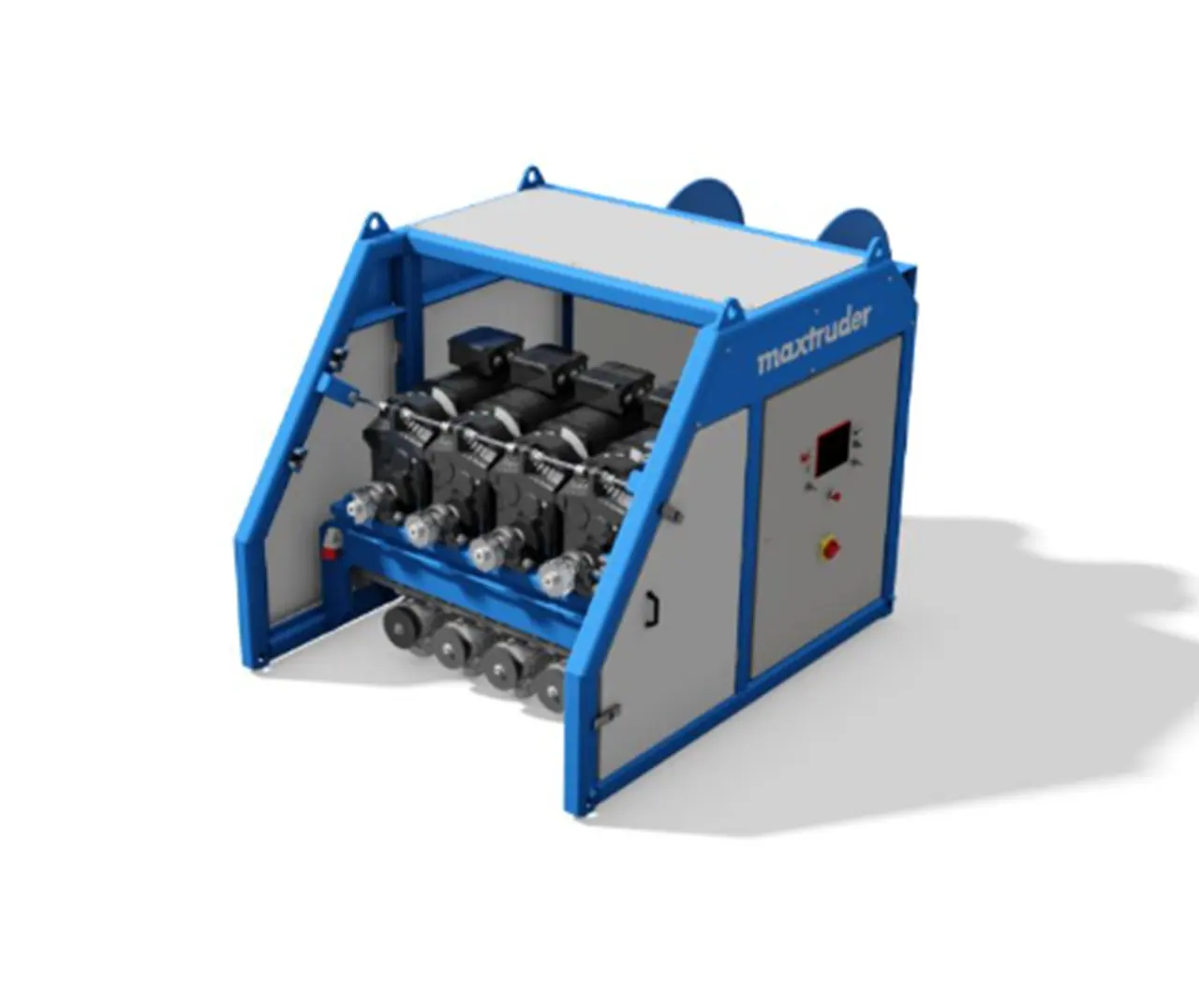

2. MAXTRUDER – POWER UNIT MODULE
Exchangeable power unit with optimized system for the production of 10 – 12 cm or 15 – 40 cm thick prestressed concrete elements

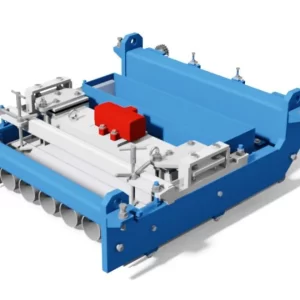

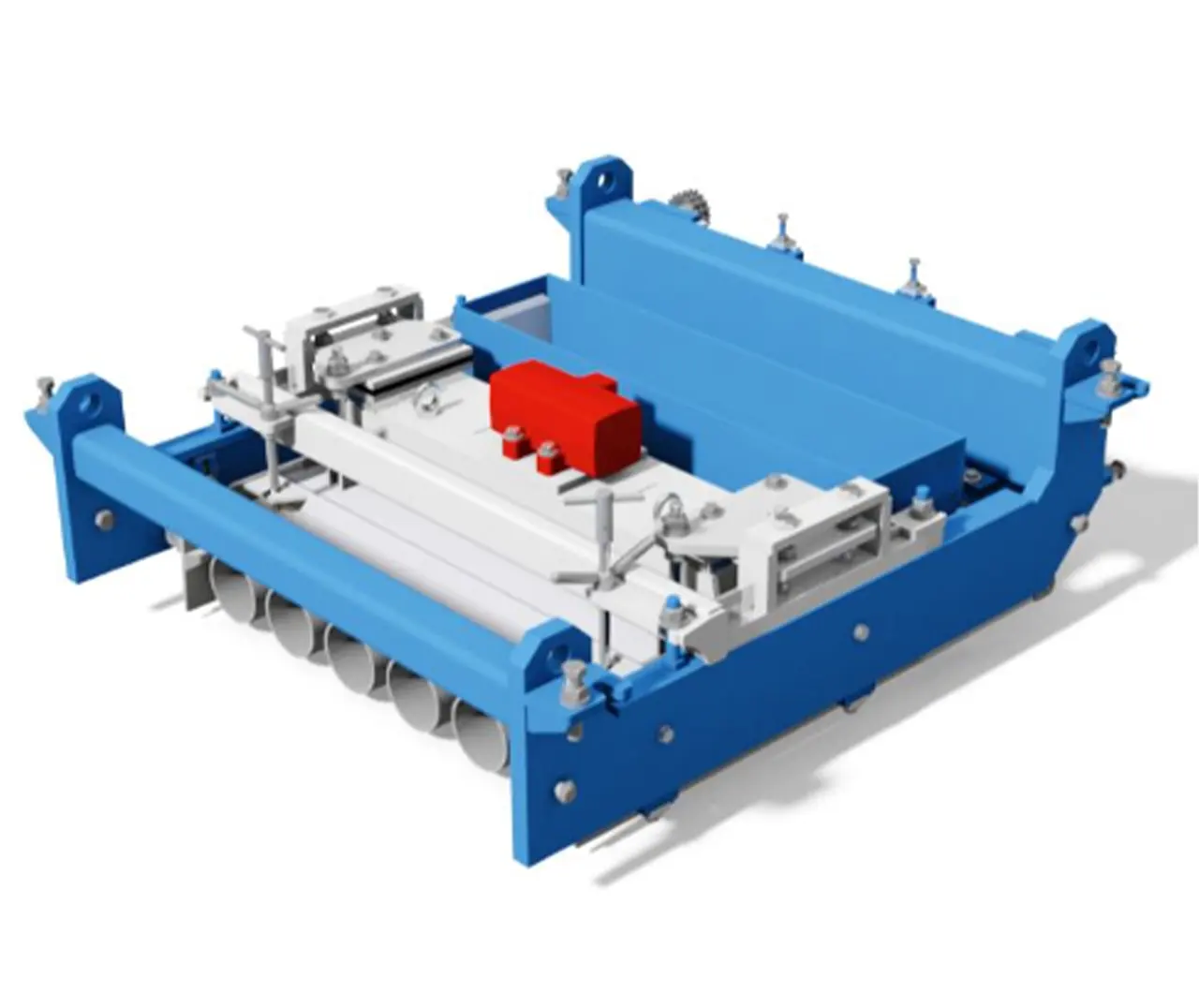

3. MAXTRUDER – COMPACTION UNIT MODULE
Quick-change compaction unit per product type, conversion time < 15 min

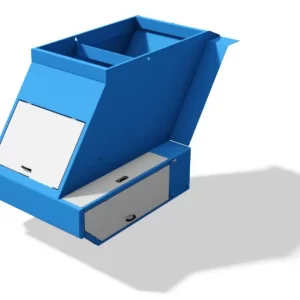

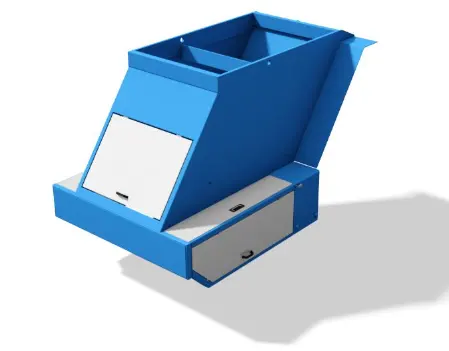

4. MAXTRUDER – CONCRETE SILO MODULE
Large concrete silo with sufficient capacity for continuous production
COST-EFFICIENT PRODUCTION
- Minimal cement requirement, no concrete admixtures
- Particularly short curing time <6 hours permits daily double lane occupation
- Shortest set-up time – highest productivity
USER-FRIENDLY
- Intuitive machine operation on the large industrial touch screen
- Quick and easy cleaning through simple module disconnection
- Individually adjustable force and speed of the compactor screws
HIGHEST SLAB QUALITY
- Efficient triple compaction system for consistently highest hollow core slab quality
- Powerful compaction with concrete strength up to 90 MPa and perfect tension wire bond
- Perfectly accurate end products with a ready-to-paint underside
Large Product Variety

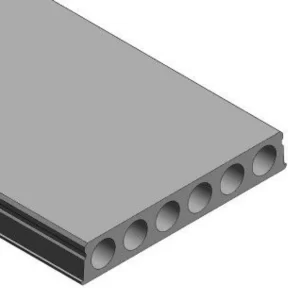

HOLLOW CORE FLOOR SLABS
Thickness: 10-40 cm
Width 30-240 cm

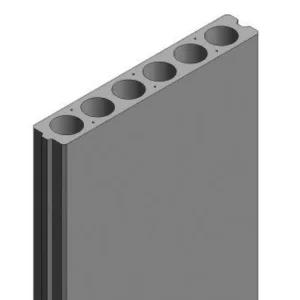

HOLLOW CORE WALL PANEL
Thickness: 10-40 cm
Width 30-240 cm
