Tilting Tables

For wall elements and flat concrete parts

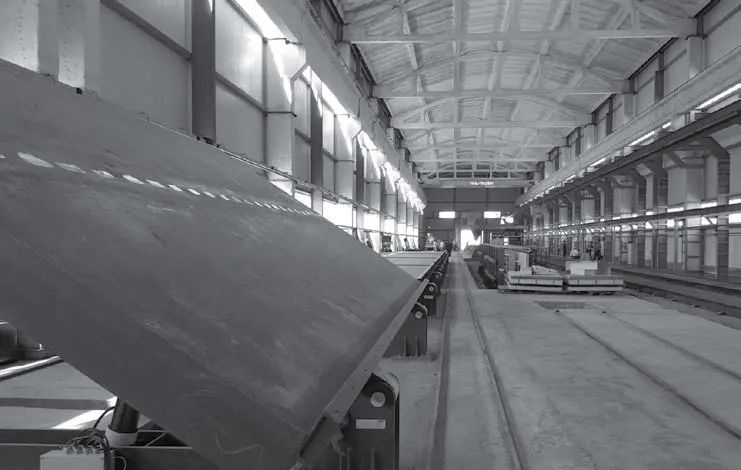

Stationary production of flat precast concrete parts

Precast concrete construction means cost-efficient building. Flat elements are prefabricated in the precast plant fully equipped with built-in parts and assembled on the construction site. Labour and material input as well as construction time are considerably reduced.

Our tilting tables are suitable for the production of solid wall & floor elements, sandwich elements, element slabs, road slabs and a variety of load-bearing and non-load-bearing components. They are developed and supplied by our parent company B.T. innovation GmbH.

FLEXIBLE PRODUCTION SYSTEM

  • Single tables or connectable tandem tables
  • Max. surface load up to 1.000kg/m² (approx.400mm solid concrete)
  • Complete product line with magnet and formwork technology
  • Window and door cut-outs for the production of openings in precast concrete elements.
  • Fixed or height-adjustable edge formwork
  • Adjustable edge formwork (100 – 300mm / 200 – 400mm)

VIBRATION TECHNOLOGY

  • Electric or pneumatic vibrators
  • Stepless frequency control
  • Preselection of individual vibrator groups

HEAT REGISTER

  • Water, steam or thermal oil
  • Helical ribbed or smooth tubes
  • Fixed to table or floor

TECHNICAL DATA

Width in m 3 / 3,5 / 4 / 4,5
Length in m 6 / 8 / 10 / 12 / 14 / 16
Live Load in kg/m² 750 or 1000
Tandem Table available
